ABB ACS880-11-021A-5 Variable Frequency Drive – ACS880 Series

ABB ACS880-11-021A-5: Enclosed Cabinet Drive for High-Demand Industrial Motor Control

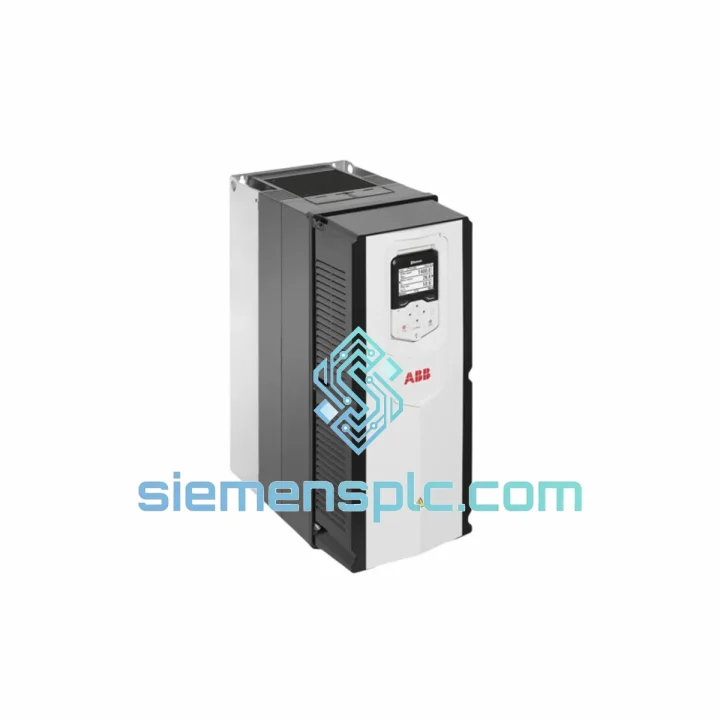

The ABB ACS880-11-021A-5 is a factory-assembled, enclosed variable frequency drive rated at 21 A continuous output current, designed for three-phase AC motor applications operating on 500–600 V supply networks. As part of ABB’s ACS880 industrial drive platform, this unit integrates Direct Torque Control (DTC) firmware, a pre-wired cabinet enclosure, and a comprehensive suite of fieldbus interfaces into a single, installation-ready package. It is engineered for process-critical environments where motor torque accuracy, thermal stability, and diagnostic transparency are non-negotiable requirements.

At 18.5 kW (25 HP) nominal power, the ACS880-11-021A-5 occupies a performance tier that covers a broad range of industrial loads — from centrifugal pumps and axial fans to compressors and winding machines. The enclosed (-11) form factor distinguishes it from the wall-mount ACS880-01 variant: all power terminals, control wiring, and EMC cable entries are pre-configured at the factory, reducing on-site commissioning time and eliminating field wiring errors that commonly affect open-frame drives.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The ACS880-11-021A-5 is built on ABB’s second-generation DTC processor architecture. Unlike conventional V/Hz drives that regulate output voltage as a function of frequency, DTC operates on a torque-reference model: the drive’s ASIC samples motor flux and torque states at 40 µs intervals, computes the optimal inverter switching vector, and applies it within a single PWM cycle. This closed-loop torque response — achieved without a physical encoder — delivers torque rise times below 1 ms under full-load transients, a characteristic that V/Hz and FOC (Field-Oriented Control) drives cannot match at equivalent hardware cost.

The IGBT power stage uses a three-level NPC (Neutral Point Clamped) topology in higher-frame variants; at the 21 A rating, a two-level bridge is employed with gate-driver isolation rated at 4 kV. Each IGBT gate driver incorporates desaturation detection, which triggers a controlled shutdown within 2 µs of a short-circuit event — protecting both the semiconductor stack and the connected motor winding from fault-induced thermal stress.

EMC compliance is achieved through an integrated Class C2 RFI filter on the AC input stage, combined with a common-mode choke on the DC bus. The cabinet’s steel enclosure provides an additional 20 dB of conducted emission attenuation above 150 kHz, making the ACS880-11-021A-5 suitable for installation in mixed-signal environments where servo drives, PLCs, and analog instrumentation share the same panel. Ground fault monitoring on the output phase detects insulation degradation in motor cables as short as 10 m, issuing a pre-fault warning before a hard trip occurs.

Thermal management relies on a dual-zone cooling architecture: the power module heat sink is cooled by a variable-speed internal fan whose RPM is modulated by an NTC thermistor embedded in the IGBT baseplate. At 50% load, fan speed reduces by approximately 40%, extending bearing service life and reducing acoustic output to below 55 dB(A). The control board operates on a separate 24 V SMPS rail, ensuring that a power-stage thermal event does not corrupt active parameter sets or fieldbus communication states.

System Integration Benefits

• Deterministic Torque Response: DTC firmware delivers torque accuracy within ±2% of rated value without encoder feedback, enabling precise speed regulation in open-loop pump and fan applications.
• Plug-and-Play Fieldbus Architecture: The FDNA-01 (EtherNet/IP) and FPBA-01 (PROFIBUS DP) option modules install into the drive’s option slot without power interruption, reducing integration downtime to under 15 minutes.
• Transparent Fault Diagnostics: The drive logs the last 64 fault events with timestamp, load current, DC bus voltage, and motor temperature at the moment of fault — enabling root-cause analysis without external data loggers.
• Safe Torque Off (STO) Integration: Dual-channel STO inputs (SIL 3 / PLe) allow direct connection to safety PLCs (e.g., Siemens ET 200SP F-CPU, Allen-Bradley GuardLogix) without external safety relays, reducing panel wiring by up to 30%.
• Energy Optimizer Function: ABB’s proprietary flux optimization algorithm reduces magnetizing current in partial-load conditions, achieving motor efficiency gains of 2–8% in variable-torque applications such as centrifugal pumps.
• Motor Compatibility Breadth: Supports AC induction (IM), permanent magnet synchronous (PMSM), and synchronous reluctance (SynRM) motors on a single firmware platform — no hardware reconfiguration required when motor type changes.
• Pre-wired Cabinet Reduces Commissioning Risk: Factory-assembled power and control wiring eliminates field termination errors; all cable entries are EMC-gland compatible, maintaining enclosure integrity and CE marking validity post-installation.
• Scalable Drive Architecture: The ACS880-11-021A-5 shares parameter structure and commissioning tools (Drive Composer Pro) with the full ACS880 family, allowing engineers trained on one frame size to commission any unit in the series without retraining.

Quality Assurance & Global Logistics

Every ACS880-11-021A-5 unit supplied through siemensplc.com is sourced from verified ABB-authorized distribution channels. Each unit carries an intact ABB factory serial number, traceable through ABB’s global product registration system. Prior to dispatch, our technical team performs a visual inspection covering label integrity, terminal block condition, option slot covers, and packaging seal status. Units showing any evidence of repackaging, counterfeit labeling, or missing factory documentation are rejected and not offered for sale.

Shipments originate from our warehouse in Xiamen, China — a logistics hub with direct access to Xiamen Gaoqi International Airport and Xiamen Port, supporting both air freight (DHL, FedEx, UPS) and sea freight (FCL/LCL) to all major global destinations. Standard air freight transit times are 3–7 business days to Europe, 5–10 days to North America, and 2–5 days to Southeast Asia. All export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8504.40) — is prepared in compliance with destination country import requirements. A 12-month warranty against manufacturing defects is provided on all units, with RMA processing initiated within 48 hours of a confirmed fault report.
