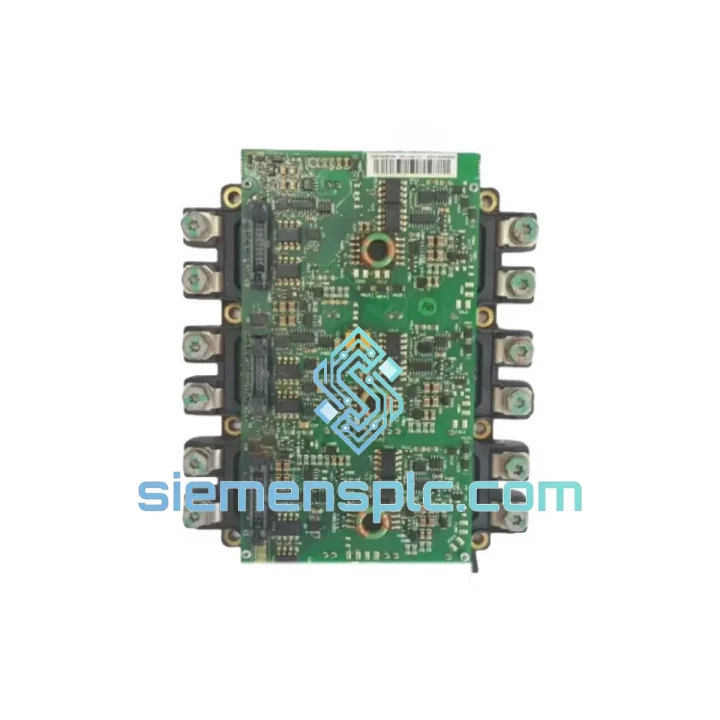

ABB AGDR-71C 6MBI450U-120 IGBT Gate Driver Module – ACS800 Series

ABB AGDR-71C 6MBI450U-120 IGBT Gate Driver Board — Precision Interface for ACS800 High-Power Drive Topology

The ABB AGDR-71C is a dedicated IGBT gate driver board designed to operate in direct conjunction with the Fuji Electric 6MBI450U-120 power module — a 1200 V / 450 A dual-in-line IGBT brick widely deployed in the ABB ACS800 medium-voltage AC drive series. Within the ACS800 inverter stack, the AGDR-71C occupies the critical interface layer between the fiber-optic control signal path and the high-voltage power switching stage. Its primary function is to translate low-energy optical PWM commands into the gate charge/discharge pulses required to switch the 6MBI450U-120 IGBT cells at the correct dV/dt slope, while simultaneously monitoring the collector-emitter saturation voltage (V_CE(sat)) to detect and suppress short-circuit events before thermal runaway propagates to the DC bus capacitor bank.

In a standard ACS800-04 or ACS800-07 inverter section, three AGDR-71C boards are mounted per phase leg — one per IGBT module — forming a six-board gate driver array for a three-phase two-level inverter topology. Each board receives its switching command via a dedicated fiber-optic receiver (HFBR-2412 or equivalent), maintaining galvanic isolation between the 690 V power stage and the RDCO/RINT control board logic at 24 V DC. The isolated ±15 V DC gate supply is generated on-board from the auxiliary power rail, eliminating the need for external isolated DC-DC converters per phase.

For maintenance engineers and procurement teams sourcing replacement gate driver boards for ACS800 drives in steel processing, mining, marine propulsion, or large-scale HVAC applications, the AGDR-71C represents a non-negotiable OEM specification component. Third-party substitutes with mismatched gate resistance (R_g) values or altered desaturation threshold voltages will produce incorrect switching waveforms, elevate IGBT junction temperature, and accelerate module degradation. Only the genuine ABB AGDR-71C maintains the factory-calibrated gate drive parameters validated against the 6MBI450U-120 datasheet.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Desaturation Detection Architecture: The AGDR-71C implements a V_CE(sat)-based desaturation detection circuit using a high-voltage diode clamp network connected to the IGBT collector terminal. During normal conduction, V_CE(sat) for the 6MBI450U-120 at 450 A remains below 2.5 V. If a short-circuit condition drives collector current beyond the rated threshold, V_CE(sat) rises sharply — the detection circuit triggers within 2–5 µs, initiating a controlled soft turn-off sequence that ramps V_GE from +15 V to −15 V at a slew rate calibrated to limit dI/dt-induced overvoltage spikes on the DC bus to within the 1200 V blocking voltage margin of the IGBT module. This prevents the destructive latch-up failure mode that occurs when gate drivers execute hard turn-off under fault conditions.

Fiber-Optic Galvanic Isolation: The signal path from the ACS800 RDCO or RINT control board to the AGDR-71C is entirely optical. The fiber-optic receiver on the gate driver board converts the 820 nm optical PWM signal to a CMOS-level logic signal with a propagation delay of less than 1 µs. This architecture eliminates common-mode noise coupling from the high dV/dt switching transients (typically 5–15 kV/µs in 690 V drive applications) back into the control electronics — a failure mode that causes spurious gate pulses and IGBT shoot-through in gate driver designs that rely on capacitively coupled or transformer-isolated signal paths.

Dual-Rail Gate Supply with UVLO: The on-board isolated DC-DC converter generates the ±15 V gate supply from the 24 V DC auxiliary input. Both rails are independently monitored by under-voltage lockout comparators. If either rail drops below the UVLO threshold — typically +12 V on the positive rail or −12 V on the negative rail — the gate driver output is immediately clamped to the off-state (V_GE = −15 V) and a fault signal is transmitted back to the control board via the optical feedback channel. This prevents the IGBT from operating in the linear region due to insufficient gate drive voltage, which would cause uncontrolled power dissipation in the IGBT die.

EMC Design: The AGDR-71C PCB layout employs a split ground plane strategy, separating the high-frequency gate drive switching loop from the low-level signal processing circuitry. Decoupling capacitors are placed within 3 mm of each gate drive output transistor to minimize the parasitic inductance in the gate charge loop. The conformal coating provides additional protection against condensation-induced leakage currents in high-humidity industrial environments, consistent with IEC 60068-2-78 damp heat test requirements.

System Integration Benefits

• Deterministic switching latency: Fiber-optic signal path delivers sub-1 µs propagation delay from control command to gate output, maintaining PWM timing accuracy at switching frequencies up to 3 kHz in ACS800 DTC (Direct Torque Control) applications.
• Fault transparency to supervisory layer: Optical fault feedback to the RINT/RDCO board enables the ACS800 control software to log fault codes (F-0022 IGBT overcurrent, F-0001 DC overvoltage) with millisecond-resolution timestamps, supporting root-cause analysis without oscilloscope access.
• Zero cross-talk between phase legs: Independent isolated gate supplies per board eliminate the common-mode current path that would otherwise couple switching noise between phase legs in a shared-supply gate driver architecture.
• Plug-and-play OEM replacement: Mechanical footprint, connector pinout, and fiber-optic port positions are dimensionally identical to the factory-installed board, enabling field replacement without PCB rework or cable modification.
• Thermal co-design with 6MBI450U-120: The board’s direct-mount configuration minimizes the thermal resistance between the gate driver power components and the IGBT module heatsink, keeping gate driver junction temperatures within specification even at 55 °C ambient.
• Soft turn-off under fault conditions: Controlled dI/dt during short-circuit turn-off limits DC bus voltage overshoot to within the 1200 V IGBT blocking voltage rating, preventing cascading failure of adjacent IGBT modules in the same phase leg.
• UVLO protection preserves IGBT integrity: Automatic gate clamping on auxiliary power loss prevents partial-enhancement operation of the IGBT, which would otherwise cause uncontrolled conduction and thermal destruction of the die within milliseconds.
• Conformal coating for industrial environments: IPC-CC-830 compliant coating provides protection against airborne conductive particulates (carbon dust, metallic swarf) common in steel mill and mining drive installations, extending MTBF in harsh environments.
• 12-month warranty coverage: Each unit supplied by siemensplc.com carries a 12-month warranty from shipment date, with documented inspection records retained for traceability.

Quality Assurance & Global Logistics

Every AGDR-71C unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment inspection protocol. Visual examination verifies PCB label authenticity, date code consistency, and the absence of rework indicators (solder bridges, lifted pads, replaced components) that are characteristic of refurbished or counterfeit boards. Part number cross-referencing against ABB OEM documentation confirms that PCB silkscreen markings, component references, and revision codes match the genuine production specification. Functional verification of the gate driver signal path and protection circuit continuity is performed using calibrated bench equipment before packaging.

Units are packed in anti-static shielding bags (ANSI/ESD S20.20 compliant), placed in foam-lined cartons with desiccant sachets, and sealed with tamper-evident tape. Each shipment includes a commercial invoice, packing list, and certificate of origin. Export documentation for HS Code 8537.10 is prepared as standard. Customs declaration support is available for all destination markets.

Outbound logistics from Xiamen are handled via DHL Express, FedEx International Priority, and EMS, with door-to-door tracking provided within one business day of payment confirmation. In-stock units ship within 1–3 business days. For project-volume orders (5+ units), consolidated shipment scheduling and bulk pricing are available on request. We serve B2B customers across Southeast Asia, the Middle East, Europe, North America, and Australia, with an established track record in supplying critical drive components to minimize unplanned downtime in continuous-process industries.
