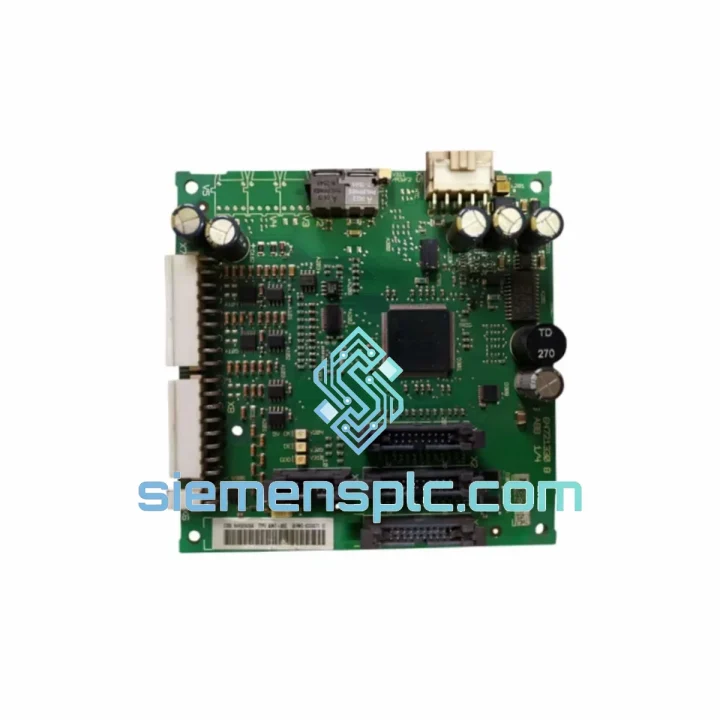

ABB AINT-02C 64721330B Drive Interface Board – ACS Series

ABB AINT-02C 64721330B — Main Interface Board for ACS Series Variable Frequency Drives

The ABB AINT-02C (order code 64721330B) is the primary PCB-level interface board installed within the control section of ABB ACS series variable frequency drives. Its function is not peripheral: it occupies the signal routing layer between the drive’s RMIO control board and the IGBT gate driver circuitry, managing the bidirectional data path that governs switching commands, fault feedback, and real-time status telemetry. Without a fully operational AINT-02C, the drive’s closed-loop motor control cannot execute — making this board a tier-one critical spare in any ACS800-based installation.

In practical terms, the board handles the translation of high-level torque and speed references from the control processor into low-voltage gate pulse signals, while simultaneously aggregating hardware fault signals — overcurrent, DC bus overvoltage, thermal trip — from the power module and returning them to the RMIO for protective action. This dual-direction signal integrity function demands a board design with low propagation delay, high noise immunity, and deterministic fault response timing, all of which are characteristics of the AINT-02C’s architecture.

The board is deployed across ABB ACS600, ACS800, and select ACS550 high-power configurations. It is a field-replaceable unit, designed for board-level swap without requiring full drive replacement, which significantly reduces mean time to repair (MTTR) in production environments where drive downtime translates directly to lost throughput.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The AINT-02C’s internal architecture reflects ABB’s design philosophy for high-power drive control: isolate, buffer, and route with deterministic timing. Several hardware design decisions are worth examining in detail.

Optical Isolation Architecture: The board employs galvanic isolation between the low-voltage control logic domain (RMIO side) and the gate driver signal paths. This isolation barrier — implemented via high-speed optocouplers rated for common-mode transient immunity (CMTI) exceeding 10 kV/μs — prevents ground-loop interference from the high-voltage DC bus from corrupting control signals. In ACS800 frames where DC bus voltages reach 1,100 VDC, this isolation margin is not a design luxury but a functional requirement for signal integrity.

Fault Signal Propagation Latency: Hardware overcurrent and short-circuit fault signals from the IGBT gate drivers are routed through dedicated fast-path logic on the AINT-02C, bypassing the RMIO processor entirely for the initial protective response. This hardware-level trip mechanism ensures that IGBT gate suppression occurs within microseconds of a fault event — well within the safe operating area (SOA) window of the power semiconductors — before the RMIO firmware even logs the fault code.

EMC Design Measures: The board layout incorporates ground plane segmentation to separate analog signal return paths from digital switching return currents. Decoupling capacitors are placed at each power supply pin of logic ICs, and signal traces carrying gate pulse commands are length-matched to minimize skew between phase channels. These measures reduce radiated emissions and improve immunity to conducted interference from the drive’s own PWM switching noise — a non-trivial challenge given that the board operates in close physical proximity to the IGBT module.

Connector and Contact Reliability: Board-to-board connectors on the AINT-02C use gold-plated contacts with positive locking mechanisms, reducing the risk of intermittent contact resistance that can cause spurious fault trips in high-vibration environments such as compressor rooms or marine engine rooms. Connector housings are rated for the mechanical shock and vibration profiles specified in IEC 60068-2-6.

Thermal Management: The board is designed for passive cooling within the drive’s forced-air ventilation path. Component placement prioritizes thermal clearance around power-dissipating elements, and the PCB substrate material is selected for low thermal resistance to facilitate heat transfer to the surrounding airflow. This design approach eliminates the need for board-mounted heatsinks, reducing component count and potential failure points.

System Integration Benefits

• Drop-in OEM Replacement: The AINT-02C is a direct form-fit-function replacement for the original board in ACS600/ACS800 drives. No firmware reconfiguration, parameter re-entry, or mechanical modification is required — the replacement board inherits the drive’s existing parameter set stored on the RMIO memory module.
• Deterministic Real-Time Response: Hardware-level fault routing on the AINT-02C ensures that protective actions — gate suppression, DC chopper activation — occur within the drive’s defined response window, maintaining the deterministic behavior that process control loops depend on for stability.
• Diagnostic Transparency: The board’s fault signal aggregation logic maps each hardware fault source to a specific fault code visible in the ACS drive’s fault history log. This one-to-one mapping between physical fault origin and logged code accelerates root-cause analysis and reduces diagnostic time during unplanned shutdowns.
• Reduced MTTR: Board-level replacement takes 30–60 minutes for a trained technician, compared to 2–5 days for full drive replacement and recommissioning. For continuous-process industries, this difference in repair time directly translates to production throughput recovery.
• Compatibility with ABB Diagnostic Tools: Genuine AINT-02C boards maintain full compatibility with ABB DriveStudio and Drive Manager software, enabling parameter backup, fault log extraction, and drive commissioning without compatibility warnings or restricted functionality.
• Preserved System Warranty Compliance: Using genuine ABB interface boards ensures that the drive assembly remains within ABB’s warranty and service agreement terms, avoiding the voiding of service contracts that can result from non-OEM board substitutions.
• Fiber-Optic Signal Integrity: DDCS fiber-optic links on the AINT-02C are immune to electromagnetic interference from the drive’s PWM switching and from external sources such as nearby motor cables and bus bars, ensuring reliable communication between the control section and any connected DDCS peripherals (e.g., RDCO communication modules, I/O extension boards).
• Long-Term Spare Parts Availability: Sourcing the AINT-02C through siemensplc.com provides access to verified surplus and new-old-stock inventory for drive models that may no longer be in active ABB production, extending the operational life of installed ACS drive assets without requiring full drive platform migration.

Quality Assurance & Global Logistics

Every AINT-02C unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification process. Part number and revision code are cross-referenced against ABB’s official documentation to confirm authenticity. PCB surfaces are inspected under magnification for solder joint integrity, component seating, and connector pin condition. Units are packaged in ESD-safe anti-static bags, placed in foam-lined cartons, and sealed with tamper-evident tape. Batch traceability records are maintained for all B2B transactions.

Xiamen’s geographic position — adjacent to Xiamen Gaoqi International Airport and within 200 km of Shenzhen and Guangzhou port infrastructure — enables same-day or next-day handover to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Transit times to major industrial hubs are typically 3–5 business days to Europe, 4–6 business days to North America, and 2–4 business days to Southeast Asia. Air freight tracking numbers are provided within 24 hours of dispatch. For time-critical AOG or production-down situations, expedited same-day dispatch is available upon confirmed order before 14:00 CST.

All shipments are accompanied by a commercial invoice with accurate HS code classification (HS 8537.10 for control boards) to facilitate smooth customs clearance. Export documentation complies with Chinese customs regulations and destination-country import requirements. Customers in the EU receive CE declaration of conformity documentation upon request.
