ABB RDNA-01 DeviceNet Adapter Module – ACS800 ACS600

ABB RDNA-01 DeviceNet Fieldbus Adapter — Communication Architecture in ACS Drive Control Loops

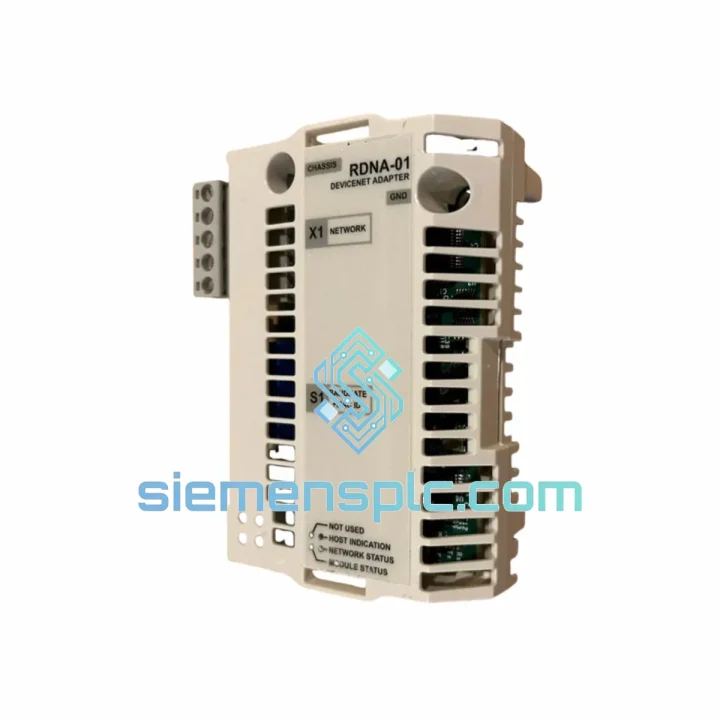

The ABB RDNA-01 is a plug-in fieldbus adapter module engineered for the ACS800 and ACS600 series AC drive platforms. Its primary function is to bridge the drive’s internal DDCS (Distributed Drives Communication System) backplane with an external DeviceNet segment, enabling deterministic cyclic I/O exchange and acyclic explicit messaging within a CAN-based industrial network (IEC 62026-3 / ISO 11898). In a closed-loop drive control architecture, the RDNA-01 occupies the communication layer between the PLC master scanner and the drive’s speed/torque reference inputs, translating DeviceNet PDOs (Process Data Objects) into ABB’s internal parameter dataset with a typical cycle latency under 5 ms at 500 kbps baud.

Unlike generic gateway solutions, the RDNA-01 interfaces directly with the drive’s option slot backplane connector, eliminating any external power wiring and ensuring that the module’s operating state is fully visible through the drive’s own fault and event logging system. This tight hardware coupling means that a DeviceNet bus-off event or node timeout is propagated as a drive-level fault (fault code F-0026 on ACS800), enabling the control system to execute a defined safe-state response rather than leaving the drive in an undefined operating condition.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The RDNA-01’s internal architecture is structured around a dual-processor design: a dedicated CAN controller (NXP SJA1000 or equivalent) handles the physical and data-link layers of the DeviceNet protocol stack, while a secondary application processor manages the translation between DeviceNet object model data and ABB’s DDCS parameter addressing scheme. This separation of concerns ensures that CAN bus arbitration and error frame handling do not introduce jitter into the drive’s internal control cycle.

Optical Isolation Barrier: The CAN transceiver stage is galvanically isolated from the drive’s internal logic bus via a dual-channel digital isolator (rated ≥2.5 kV isolation voltage). This isolation barrier prevents ground loop currents — common in large motor drive installations where PE potential differences between cabinet sections can reach several volts — from corrupting the CAN differential signal pair. The isolation also protects the drive’s control board from transient overvoltages induced by cable capacitance discharge during hot-plug events on the DeviceNet trunk.

EMC Design: The module’s PCB layout routes CAN_H and CAN_L as a tightly coupled differential pair with controlled impedance (120 Ω ± 10%), matched to the DeviceNet trunk cable characteristic impedance. Ferrite bead filters on the V+ and V− network power lines suppress common-mode noise in the 1–30 MHz range, consistent with EN 55011 Class A industrial emission limits. The module’s metal shield frame provides additional shielding attenuation of approximately 20 dB at frequencies above 100 MHz.

Watchdog and Fault Propagation Logic: An internal hardware watchdog monitors the application processor’s execution cycle. If the processor fails to service the watchdog within a configurable timeout window (default: 100 ms), the module asserts a hardware fault signal on the option slot backplane, which the drive’s main control board interprets as a communication module failure. This mechanism ensures that a firmware hang in the RDNA-01 does not leave the drive running without valid network supervision — a critical safety requirement in applications where the DeviceNet master provides the speed reference.

Parameter Mapping Architecture: The RDNA-01 implements ABB’s standard fieldbus adapter parameter mapping, where DeviceNet output assembly data (from master to drive) maps to drive control word (CW) and reference (REF1, REF2) registers, and input assembly data (from drive to master) maps to drive status word (SW) and actual value (ACT1, ACT2) registers. This mapping is configurable via drive parameters 51.01–51.27 on ACS800, allowing engineers to remap any drive parameter to the cyclic I/O dataset without firmware modification.

System Integration Benefits

• Deterministic Cycle Time: At 500 kbps with polled I/O, the RDNA-01 delivers a consistent drive control update rate of 2–4 ms per node, supporting motion-coordinated applications where speed reference latency directly affects positioning accuracy.
• Zero External Wiring for Module Power: The option slot backplane supplies all module power, eliminating a dedicated 24 VDC supply branch and reducing panel wiring complexity by approximately 4 conductors per drive.
• Full Drive Diagnostics via Explicit Messaging: Any of the ACS800’s 200+ parameter groups is accessible over DeviceNet explicit messaging, enabling the PLC to read fault history, thermal load, energy counters, and motor model data without a separate RS-485 or Ethernet connection.
• Drive Fault as Network Event: DeviceNet bus-off, node timeout, and module hardware faults are all mapped to specific ACS800 fault codes, making drive-level fault logging the single source of truth for communication health — simplifying SCADA alarm management.
• ODVA Conformance Certification: The RDNA-01 carries ODVA conformance test certification, guaranteeing interoperability with any certified DeviceNet master scanner (Rockwell 1756-DNB, Omron CJ1W-DRM21, Siemens CP 343-5, Beckhoff EL6752) without vendor-specific workarounds.
• Dual Option Slot Support on ACS800: The ACS800 supports two option modules simultaneously. The RDNA-01 can coexist in Slot 1 with an encoder interface (RTAC-01) or I/O extension (RAIO-01) in Slot 2, enabling closed-loop vector control with fieldbus supervision in a single drive chassis.
• EDS-Based Configuration: The module’s Electronic Data Sheet (EDS) file fully describes all I/O assemblies, configurable parameters, and identity objects, enabling plug-and-play registration in RSNetWorx for DeviceNet, Sysmac Studio, and other DeviceNet configuration tools without manual object entry.
• Backward Compatibility with ACS600: The RDNA-01 is electrically and mechanically compatible with the ACS600 option slot, allowing a single spare module to cover both ACS600 and ACS800 installations — reducing spare parts inventory cost in mixed-fleet maintenance programs.
• Change-of-State Messaging Support: In addition to polled I/O, the RDNA-01 supports COS messaging, which transmits drive status updates only when the status word changes. This reduces network bandwidth consumption by up to 60% in applications where the drive operates at steady state for extended periods.

Quality Assurance & Global Logistics

Every ABB RDNA-01 unit supplied by siemensplc.com is sourced through verified industrial distribution channels and subjected to a structured incoming inspection protocol before dispatch. Inspection steps include visual examination of the PCB and connector for mechanical damage, label authenticity verification against ABB’s serial number format (prefix 3AFE or 3AUA), and a functional power-on test confirming that the module’s status LEDs cycle through the expected initialization sequence when seated in a compatible drive option slot.

Units are stored in ESD-controlled packaging (ANSI/ESD S20.20 compliant) in a climate-controlled warehouse in Xiamen, China. Xiamen’s port infrastructure — served by Xiamen Gaoqi International Airport and Xiamen Port — supports same-day handover to DHL Express, FedEx International Priority, and UPS Worldwide Express for urgent orders. Standard international transit times from Xiamen are 2–4 business days to Europe, 3–5 business days to North America, and 1–3 business days to Southeast Asia.

For volume procurement (5+ units), sea freight consolidation via Xiamen Port is available with full commercial invoice, packing list, and certificate of origin documentation for customs clearance. All shipments include tracking numbers and are covered by cargo insurance. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions; warranty claims are processed with a replacement-first policy to minimize customer downtime.
