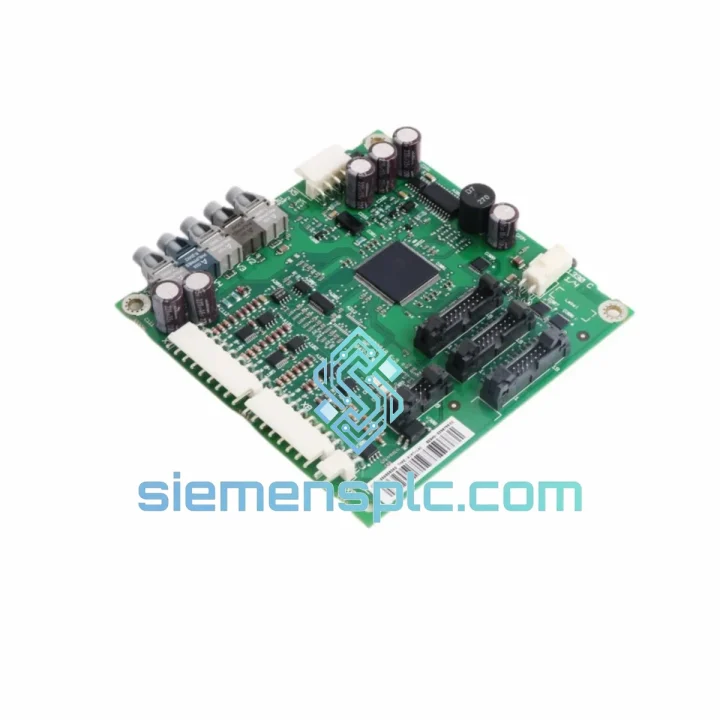

ABB AINT-14C 64721330 C Motor Control Interface Board

ABB AINT-14C 64721330 C — Stop the Clock on Your Downtime. Ship Today.

Every minute your ACS drive sits offline, the losses compound — lost throughput, idle labor, delayed schedules. The AINT-14C 64721330 C is the exact OEM motor control interface board that brings your ABB ACS800 or ACS880 drive back online. We stock it in Xiamen. We ship it today. No substitutes, no grey-market risk — the correct revision, verified, packed, and moving toward your site before your maintenance window closes.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The AINT-14C sits at the communication boundary between the drive’s control unit and the power stage. When it fails, the symptoms are rarely subtle — but they are frequently misdiagnosed. Here is what to look for and how to replace it correctly.

Common Fault Signatures Pointing to the AINT-14C:

• Fault code 0022 (CURR MEAS FAULT) — Current measurement signal path runs through the MC interface layer. If the fault clears on reset but returns under load, suspect the AINT-14C before replacing current transducers.
• Fault code 0009 (DC UNDERVOLT) with healthy DC bus — The board relays DC bus voltage feedback to the control unit. A degraded solder joint on the AINT-14C can produce false undervoltage trips.
• Intermittent drive trips during acceleration ramps — Thermal stress on the board’s connector pins causes intermittent signal dropout. Reseating the board temporarily resolves the fault; replacement is the permanent fix.
• Drive powers up but motor does not rotate, no fault code displayed — Gate drive enable signals from the AINT-14C are not reaching the IGBT gate drivers. Confirm with oscilloscope on the gate drive test points before condemning the power stage.
• Visible burn marks or discoloration on the PCB — Typically caused by a transient overvoltage event on the DC bus. Replace the board and investigate the root cause (line transients, braking resistor sizing) before re-energizing.

Step-by-Step Replacement Procedure:

1. Isolate and lock out the drive. Confirm DC bus voltage has discharged below 50 V DC using a calibrated meter — do not rely on the drive’s panel indication alone. Minimum discharge time for ACS800 frames R5–R8 is 5 minutes after main contactor opens.
2. Document the existing board revision. Photograph the label on the installed AINT-14C before removal. Confirm the replacement board carries revision code 64721330 C. Cross-revision substitution (e.g., 64721330 B) may introduce firmware incompatibilities — do not assume interchangeability without ABB confirmation.
3. Note fiber-optic cable routing before disconnection. The AINT-14C interfaces with the RDCO or DDCS fiber links. Mark each cable with tape flags before removal. Reversed fiber connections will cause immediate fault on power-up.
4. Handle with ESD precautions. Ground yourself to the drive cabinet frame before touching the board. The AINT-14C contains ESD-sensitive gate drive components. A wrist strap is mandatory — field conditions are not an excuse to skip this step.
5. Seat the replacement board firmly. The board-edge connector requires positive engagement. A partially seated board will produce erratic faults that waste hours of diagnostic time. Apply even pressure across the full connector width.
6. No DIP switch or address configuration required on the AINT-14C itself — it is not a self-addressing module. However, confirm that the drive’s parameter group 98 (Option Modules) correctly reflects the installed option boards after power-up.
7. Perform a short no-load test run before reconnecting the motor. Verify that the drive reaches setpoint speed without fault codes. Monitor DC bus voltage and output current waveforms for the first 30 seconds of operation.

Firmware Note: The AINT-14C does not carry its own firmware — it is a hardware interface layer. However, if the drive’s RMIO control board firmware is below the minimum version specified for your ACS platform, the new AINT-14C may not initialize correctly. Check ABB’s firmware release notes for your drive model before replacement.

Reliability in Harsh Conditions

The AINT-14C is not a commercial-grade board dropped into an industrial enclosure. It is engineered from the ground up for the environments where ABB ACS drives operate — and those environments are unforgiving.

Vibration: The board’s PCB layout and component selection account for the mechanical vibration profiles of pump, compressor, and conveyor drive installations. Connector retention forces are specified to maintain contact integrity under continuous vibration loads consistent with IEC 60068-2-6 test profiles. In marine and offshore installations — where the drive cabinet itself may be subject to vessel motion — the AINT-14C has demonstrated reliable operation across multi-year service intervals.

Thermal Cycling: Industrial drives cycle between cold-start and full-load operating temperatures multiple times per day. The AINT-14C’s solder joints and component packages are qualified for the thermal expansion differentials this produces. Electrolytic capacitors on the board are rated for extended service life at elevated temperatures — a common failure point on lower-grade interface boards that use underrated capacitors to reduce cost.

Humidity and Contamination: In water treatment, food processing, and coastal installations, humidity and airborne contaminants are constant threats to PCB integrity. The AINT-14C’s conformal coating specification provides a baseline barrier against moisture ingress and conductive contamination. For extreme environments, additional drive cabinet sealing measures are recommended — but the board itself is not the weak link.

EMC Immunity: Motor drives generate significant conducted and radiated electromagnetic interference. The AINT-14C is designed to operate within this environment without signal corruption. Its layout follows ABB’s internal EMC design rules, which are more stringent than the minimum requirements of IEC 61800-3. In high-noise switchgear environments — steel mills, mining substations — this matters. A board that cannot reject common-mode noise on its signal lines will produce nuisance trips that are nearly impossible to diagnose without knowing the root cause.

Global Express Logistics

Our Xiamen warehouse is positioned for fast access to both Asian manufacturing hubs and international freight lanes. When you place an order for the AINT-14C 64721330 C, here is exactly what happens:

• Same-day dispatch for orders confirmed before 15:00 CST. The board is pulled from stock, inspected, packed in an anti-static ESD bag with foam cushioning inside a double-wall carton, and handed to the courier the same afternoon.
• DHL Express and FedEx International Priority are our primary carriers for urgent shipments. Transit times: Southeast Asia 1–2 days, Europe 3–4 days, North America 3–5 days, Middle East 2–3 days. These are door-to-door times, not port-to-port estimates.
• Commercial invoice and packing list are prepared to customs standards for your destination country. HS code documentation is included to prevent customs clearance delays — a common cause of avoidable downtime extension on international spare parts shipments.
• Tracking number is sent to your email within 2 hours of dispatch. You can monitor the shipment in real time and share the tracking link with your site team so they can prepare for receipt and installation.
• Freight insurance is available on request for high-value orders. We recommend it for shipments to remote sites where re-sourcing a damaged board would cause additional delay.
• For extreme urgency — same-day courier pickup, airport-to-airport freight, or hand-carry arrangements — contact us directly on WhatsApp. We have handled emergency logistics for offshore platforms, remote mining sites, and time-critical production shutdowns. Tell us your deadline and we will work backward from it.

Contact Information

Email: [email protected]
WhatsApp: +86 18359268345
