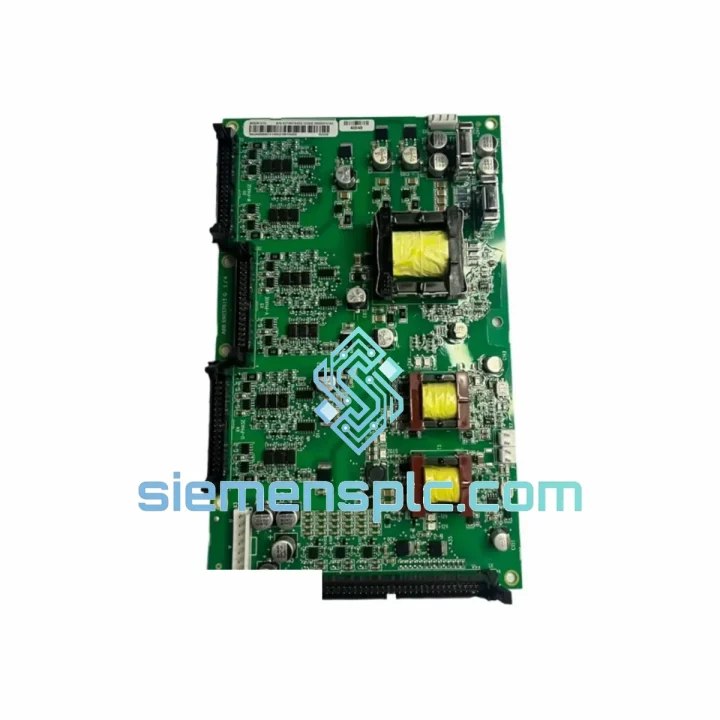

ABB BGDR-01C 3AUA0000074145 Gate Driver Board

ABB BGDR-01C 3AUA0000074145 — Stop the Clock on Your ACS800 Downtime

Every minute your ACS800 drive sits dead, the production loss meter is running. A failed gate driver board is one of the most common — and most misdiagnosed — causes of complete drive shutdown. The BGDR-01C (ref. 3AUA0000074145) is the IGBT gate control heart of the ACS800 power stage. When it fails, you get no output, no motor rotation, and a fault log that points straight at the power electronics. We stock this board in Xiamen and ship same-day or next business day. That’s the only answer that matters when your line is down.

We’ve seen plants lose six figures in a single shift waiting on a part that was sitting in a warehouse on the other side of the world. Don’t let logistics be the reason your restart gets delayed. Our express pipeline from Xiamen to your site — via DHL or FedEx International Priority — is built for exactly this scenario.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Codes That Point to BGDR-01C Failure:

• FF-52 / FF-53 (IGBT Overcurrent): If this fault trips immediately at power-up with no load connected, the gate driver is the first suspect — not the IGBT module itself. Swap the BGDR-01C before condemning the power semiconductors.
• FF-54 (DC Bus Overvoltage on Braking): A degraded gate driver can cause asymmetric IGBT switching, leading to false overvoltage trips during deceleration. Check gate signal integrity with an oscilloscope before replacing the brake chopper.
• FF-01 (Overcurrent at Low Speed): Intermittent gate pulse dropout causes current spikes at low modulation depths. This is a classic sign of a gate driver PCB with a failing optocoupler or power supply rail.
• No Output / Drive Runs but Motor Doesn’t Rotate: If the RMIO control board shows no faults but the motor is dead, measure gate-emitter voltage on each IGBT leg. Zero gate drive on one or more phases = BGDR-01C failure.

Step-by-Step Replacement Procedure:

1. De-energize completely. Open the main breaker, wait a minimum of 5 minutes for DC bus capacitors to discharge below 50V. Verify with a calibrated meter — never assume.
2. Document fiber-optic connections. The BGDR-01C uses fiber-optic cables for gate signal isolation. Photograph the routing before disconnecting. Swapped TX/RX pairs will cause immediate IGBT failure on power-up.
3. Check DIP switch / jumper settings on the new board. Some ACS800 frame variants require specific address or current rating jumper configurations on the gate driver. Cross-reference the drive’s hardware manual (3AFE64527592) for your specific frame size (R2–R8+).
4. Inspect the IGBT modules before reinstalling. A failed gate driver often fails because of a shorted IGBT that took it out. Measure collector-emitter resistance on all six IGBTs before powering up with the new board. Installing a new BGDR-01C into a drive with a shorted IGBT will destroy the replacement immediately.
5. Firmware compatibility check. If the RMIO control board firmware is below version 7.x, verify that the BGDR-01C revision is compatible. Mismatched firmware and gate driver hardware revisions can cause erratic fault behavior that mimics other failures.
6. First power-up: no load. Disconnect the motor, power up the drive, and verify all DC bus rails on the BGDR-01C are within spec before connecting the motor. This protects both the new board and the motor.

Common Mistakes That Kill Replacement Boards:

• Reconnecting fiber-optic cables in the wrong order (TX↔RX swap)
• Skipping IGBT health check before reinstall
• Powering up without verifying DC bus discharge
• Ignoring frame-specific jumper settings — a board configured for R5 installed in an R7 frame will not operate correctly

Reliability in Harsh Conditions

The ACS800 platform was engineered for the most demanding industrial environments on the planet — and the BGDR-01C is built to match. ABB’s gate driver PCB design incorporates conformal coating on critical circuit areas, providing resistance to condensation and airborne contaminants common in paper mills, cement plants, and coastal installations. The board’s power supply section is designed with wide input voltage tolerance to handle the line fluctuations typical in heavy industrial facilities.

Vibration resistance is addressed through reinforced PCB mounting points and component selection rated for IEC 60068-2-6 vibration profiles — relevant for drives mounted on compressor skids, marine vessels, or mobile equipment. Thermal cycling performance is validated across the full operating range, ensuring solder joint integrity doesn’t degrade after years of thermal expansion and contraction cycles in a drive cabinet that heats up every morning and cools down every night.

Every board we ship has been stored in ESD-controlled, climate-regulated conditions. We don’t pull parts from open shelves in uncontrolled warehouses. Electrostatic discharge damage is invisible and lethal to gate driver circuitry — a board that looks perfect can fail within hours of installation if it was mishandled during storage. Our ESD packaging protocol follows ANSI/ESD S20.20 standards from the moment the board enters our facility to the moment it leaves in your shipment.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct access to DHL, FedEx, and UPS international express networks. Here’s how your order moves from our shelf to your site:

• Order Confirmed → Same Day Pick & Pack: Orders confirmed before 14:00 CST are packed and handed to the courier the same business day. ESD-safe inner packaging, rigid outer carton, and shock-absorbing foam inserts are standard — not optional.
• DHL Express / FedEx International Priority: Transit times to Europe: 3–5 business days. North America: 4–6 business days. Southeast Asia: 1–3 business days. Middle East: 3–5 business days.
• Full Tracking from Dispatch: You receive the AWB number and tracking link the same day your order ships. No chasing, no guessing.
• Export Documentation: Commercial invoice, packing list, and country of origin certificate are prepared for every shipment. For EU imports, we can provide HS code documentation to support customs clearance. HS Code: 8537.10 (boards for industrial control).
• Customs Clearance Support: Our logistics team has handled exports to 60+ countries. If your customs broker needs additional documentation, we respond within hours — not days.
• Emergency Freight Options: For critical shutdowns, we can arrange next-flight-out courier services. Contact us directly on WhatsApp for real-time logistics coordination.
