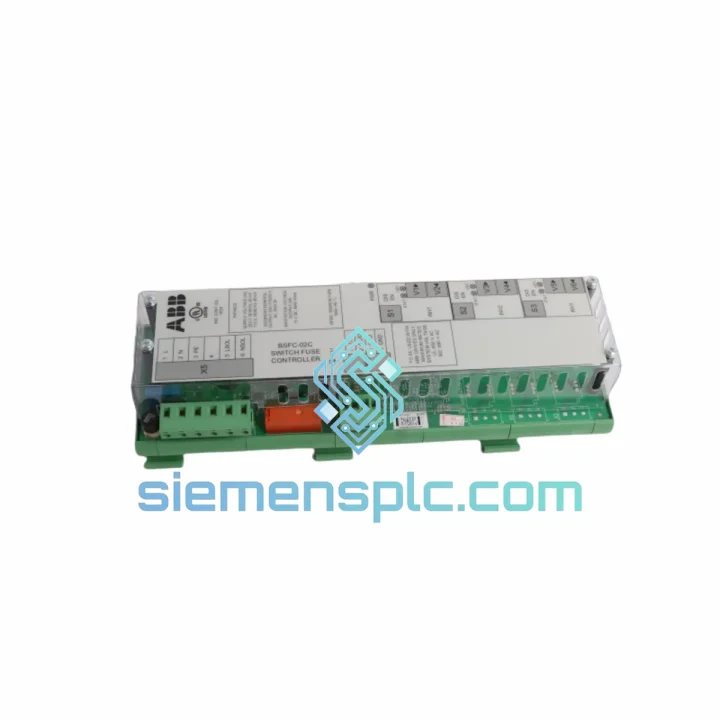

ABB BSFC-02C 3AXD50000011461 Brake Control Panel

ABB BSFC-02C 3AXD50000011461 — Stop the Clock on Your ACS880 Downtime

Every minute a crane, hoist, or conveyor sits idle because of a failed brake control panel costs real money. The ABB BSFC-02C (ABB ref: 3AXD50000011461) is the dedicated brake sequence control panel for the ACS880 drive platform — and we stock it in Xiamen, ready to move the same day your purchase order lands. No waiting on ABB lead times. No chasing distributors. One call, one shipment, line back up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The BSFC-02C fails in predictable ways. Here is what you will see on the drive panel and what it actually means on the hardware side:

Fault A7A1 / A7A2 — Brake Acknowledge Timeout: The drive commanded the brake to open or close, but no feedback signal returned within the configured window (parameter 44.07). Nine times out of ten this is a wiring fault at the BSFC-02C terminal block — check the feedback cable continuity first. If wiring is intact and the fault persists after a cold restart, the panel’s internal relay has failed. Replace the BSFC-02C.

Fault 7081 — Brake Hardware Fault: This is the hard fault. The drive has detected an internal inconsistency in the brake control circuit. Do not attempt to reset and run. Power down the drive, isolate the mechanical brake manually, and swap the BSFC-02C before re-energizing. Running through this fault risks load drop on hoisting applications.

Replacement Procedure — Step by Step:

1. Isolate the ACS880 drive from mains supply and verify zero voltage with a calibrated meter. Wait the full DC bus discharge time stated on the drive door label — typically 5 minutes for larger frames.
2. Photograph the existing BSFC-02C wiring before disconnecting anything. Terminal designations on the replacement unit are identical, but a photo saves commissioning time.
3. Disconnect the brake feedback cable and the brake command output wiring from the BSFC-02C terminal block. Note the cable screen grounding point — it must be re-terminated on the replacement unit at the same location.
4. Release the panel mounting clips and slide the BSFC-02C out of the drive chassis. The connector to the drive’s I/O board is a keyed plug — it only seats one way.
5. Seat the new BSFC-02C, reconnect the I/O board plug, and re-terminate all external wiring per your photograph. Torque terminal screws to 0.5 Nm — overtightening cracks the terminal block on this panel.
6. Before powering up, verify parameters 44.01 (Brake Control Enable = Enable), 44.06 (Brake Open Delay), and 44.07 (Brake Acknowledge Timeout) match your application settings. These parameters are not stored in the BSFC-02C — they live in the drive’s parameter set. If the drive memory card was preserved, they will already be correct.
7. Power up, perform a no-load brake sequence test, confirm fault-free operation, then return to normal operation.

Configuration Note — No DIP Switches: Unlike some ABB option boards, the BSFC-02C carries no physical address switches or jumpers. All configuration is handled through ACS880 drive parameters. If you are replacing a unit on a multi-drive system using a fieldbus, verify that the brake control macro is assigned to the correct drive axis in the parameter set before running.

Reliability in Harsh Conditions

The ACS880 platform — and every option panel designed for it — is built to IEC 60068 environmental test standards. The BSFC-02C is validated for continuous operation in the following conditions, which covers the majority of steel mill, port crane, and offshore environments where brake failures cause the most damage:

• Operating Temperature: -15 °C to +55 °C (drive cabinet ambient). The panel’s relay and PCB components are rated beyond this range, providing margin against localized hot spots inside poorly ventilated cabinets.
• Vibration: Tested to IEC 60068-2-6, 5–150 Hz sinusoidal. The panel mount design transfers vibration loads to the drive chassis rather than the PCB, which is the correct approach for crane and marine applications where shock loads are routine.
• Humidity: 5–95% RH non-condensing. Conformal coating on the PCB provides additional protection in high-humidity port and coastal environments. If your application involves condensation risk, request a conformal-coated unit on inquiry.
• EMC: Designed to operate within the ACS880’s CE-marked EMC envelope. The brake command and feedback cables should be routed in separate conduit from power cables — a wiring discipline issue that causes more nuisance faults than hardware failures.

Units supplied from our Xiamen stock are stored in climate-controlled conditions and inspected for physical damage, label integrity, and connector condition before dispatch. We do not ship units with bent pins, cracked housings, or missing labels regardless of how urgently a customer needs the part.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. Here is how a typical urgent shipment moves:

• Day 0 — Order Confirmed: Purchase order received and acknowledged before 15:00 CST. Unit pulled from stock, inspected, and packed. Commercial invoice and packing list prepared. HS Code 8537.10 declared for customs clearance.
• Day 1 — Airfreight Departure: Shipment collected by DHL/FedEx courier and manifested on the next available flight ex-Xiamen or connecting via Shanghai Pudong (PVG) for intercontinental routes.
• Day 2–3 — Arrival at Destination Hub: Most European destinations (Germany, Netherlands, UK) receive within 2–3 business days. Southeast Asia within 1–2 days. North America 3–4 days. Middle East and Africa 3–5 days.
• Customs: We prepare complete export documentation including Certificate of Origin, commercial invoice with accurate declared value, and MSDS where required. Customers are responsible for import duties and local customs clearance — we can recommend customs brokers in major markets on request.
• Tracking: AWB number provided within 2 hours of collection. Real-time tracking link sent directly to your procurement contact.

For shipments where downtime cost exceeds freight cost by a significant margin — which is almost always the case for crane and hoist applications — we recommend DHL Express Worldwide as the default service. It is not the cheapest option, but it is the most consistent for time-definite delivery.
