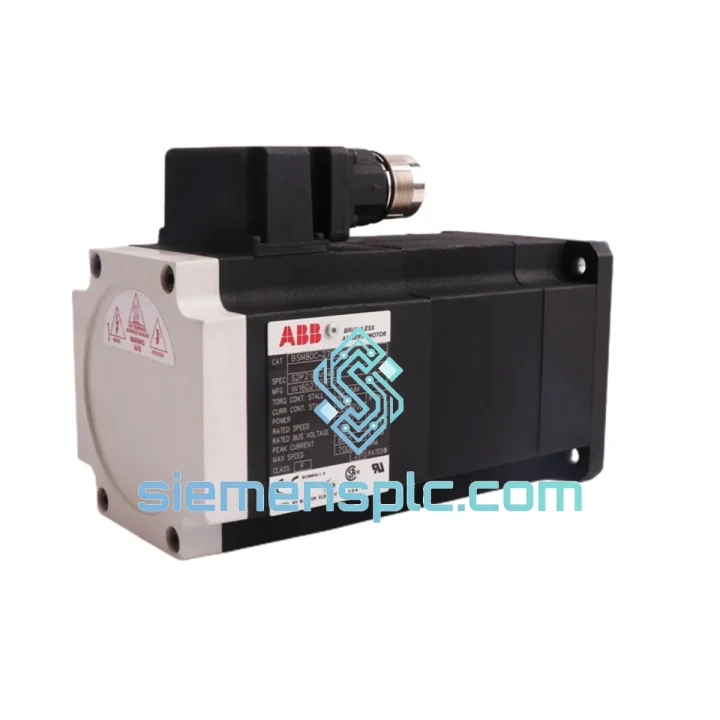

ABB BSM80C-275AFX – Stop the Clock on Your Downtime, Get Back to Full Production

A failed servo motor on a CNC axis or robot joint doesn’t just pause one machine — it can cascade into a full line stoppage, missed delivery commitments, and penalty clauses that dwarf the cost of the part itself. The ABB BSM80C-275AFX is a brushless AC servo motor in the proven BSM80 frame series, and when yours fails, every hour you spend waiting for a replacement is money walking out the door. We stock this unit in Xiamen, China, ready for same-day dispatch via DHL or FedEx Express — because in a plant environment, “lead time” is not an acceptable answer.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes on the BSM80C-275AFX in the field:

• Encoder signal loss / AL-16 / Enc.Er fault: The -AFX incremental encoder is the first thing to check. Inspect the 15-pin D-sub or M23 connector for bent pins, moisture ingress, or cable chafing near the motor exit. A broken shield drain wire is responsible for roughly 40% of intermittent encoder faults. Swap the feedback cable before condemning the motor.
• Overtemperature trip (AL-08 / OHT): The BSM80C frame runs hot under sustained high-duty cycles. Verify the thermal sensor circuit continuity — a failed thermistor reads open and triggers a false OHT even when the motor is cold. Resistance at 25°C should be approximately 1 kΩ (PTC type). If the motor is genuinely overheating, check for blocked airflow around the motor body and verify the drive’s current limit parameters match the motor nameplate.
• Bearing noise / vibration at low speed: BSM80 motors in coolant-mist environments suffer accelerated bearing wear when the IP65 shaft seal degrades. If you hear a grinding or rumbling at speeds below 500 RPM, the front bearing is the likely culprit. This is not field-repairable in most plant environments — swap the motor and send the failed unit for rebuild.
• Hall commutation error on startup: If the drive faults immediately on enable with a commutation or phase error, verify the U-V-W power cable phasing matches the drive’s motor configuration. The BSM80C uses a standard ABB/Baldor pin-out — do not assume it matches a third-party motor you may have used previously.

Replacement checklist before powering up:

1. Confirm encoder resolution matches the drive’s configured PPR (typically 2,500 PPR for -AFX). Mismatched PPR causes runaway or oscillation on first enable.
2. Re-enter motor nameplate parameters into the drive (Ke, Kt, rated current, inductance). Do not copy from a different BSM80 sub-model — the C-frame winding differs from A and B frames.
3. Perform a drive auto-tune (current loop, then velocity loop) after installation. Mechanical coupling changes from the swap will shift the inertia ratio.
4. Check the shaft coupling for fretting or wear — a worn coupling will re-introduce vibration and mask whether the new motor is actually healthy.
5. Verify 24 VDC brake supply if the application uses an external holding brake. A brake that doesn’t release fully will cause the motor to overheat within minutes.

Reliability in Harsh Conditions

The BSM80C-275AFX is not a lab instrument — it was designed from the ground up for the factory floor. The IP65 rating means the motor body is fully dust-tight and protected against direct water jets, which matters in CNC environments where coolant mist is constant and wash-down cycles are routine. The Class F insulation system (rated to 155°C) provides a substantial thermal margin above the motor’s normal operating temperature, extending winding life even in poorly ventilated enclosures.

The stator laminations are skewed to reduce cogging torque, which translates directly to smoother surface finish on ground or milled parts — a detail that matters when your tolerance is measured in microns. The rotor construction uses high-energy rare-earth magnets that retain their magnetic properties across the full operating temperature range, so the motor’s torque constant doesn’t drift as the machine warms up through a production shift.

Vibration resistance is validated to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), covering the shock and vibration profiles typical of press-room floors, stamping lines, and mobile equipment. The sealed bearing arrangement prevents lubricant contamination from metallic swarf and coolant — the two most common causes of premature bearing failure in machine tool servo motors.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL and FedEx Express gateway access. Here’s how a typical emergency order moves:

• Order confirmed before 14:00 CST: Same-day pick, pack, and handover to DHL/FedEx courier.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared in parallel — no delays at customs clearance.
• Transit times (DHL/FedEx Express): Southeast Asia 1–2 days | Europe 3–4 days | North America 3–5 days | Middle East 2–3 days | Australia 3–4 days.
• Tracking: AWB number sent via email and WhatsApp within 2 hours of dispatch. Real-time tracking link provided.
• Packaging: Anti-static bag, foam-lined export carton, fragile labeling. The motor arrives ready to install, not ready to inspect for shipping damage.
• Customs value declaration: Accurate and compliant — we do not under-declare to save you duty and then leave you exposed to seizure or penalty.

For critical shutdowns where every hour counts, contact us directly on WhatsApp for a real-time stock confirmation and freight quote before placing the order.
