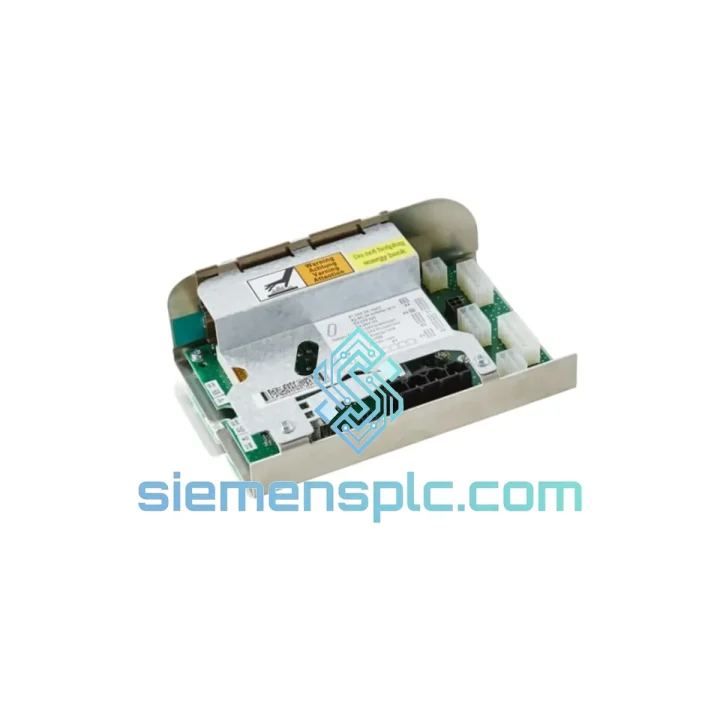

ABB DSQC662 3HAC026254-001 Power Distribution Board – IRC5 Series

ABB DSQC662 (3HAC026254-001) — DC Power Distribution Board for IRC5 Robot Controller

The ABB DSQC662, carrying OEM part number 3HAC026254-001, is the internal DC power distribution board specified for the ABB IRC5 single-cabinet and dual-cabinet robot controller platform. Within the IRC5 cabinet architecture, this board occupies the power management layer between the primary AC/DC power supply unit and all downstream electronic subsystems — including the axis computer, main computer, I/O modules, and safety relay circuits. Its failure mode is unambiguous: loss of one or more regulated DC rails causes immediate controller shutdown, servo drive de-energization, and a full production cell stop.

Unlike generic power distribution boards, the DSQC662 is engineered to the exact load profiles and connector pinouts of the IRC5 M2004 and M2000A cabinet generations. The board distributes multiple regulated DC voltage rails — typically 24 VDC for logic and I/O, and higher-voltage rails for drive pre-charge circuits — through a passive bus architecture with dedicated overcurrent protection per branch. Each output branch is fused or current-limited independently, so a fault on one subsystem does not propagate to adjacent rails. This design principle is fundamental to the IRC5’s fault-containment strategy and is why ABB specifies this board as a non-substitutable OEM component in its service documentation.

The board’s PCB layout follows a functional zoning approach: high-current drive supply traces are physically separated from low-current logic traces, with ground plane segmentation to minimize conducted noise coupling between the servo power domain and the digital control domain. Connector housings are keyed and latched, preventing mis-insertion during field replacement — a practical detail that reduces re-commissioning errors in MRO scenarios.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DSQC662’s architecture reflects ABB’s design philosophy for the IRC5 platform: deterministic power delivery with localized fault containment. Several hardware design characteristics are worth examining in detail.

Rail Independence and Fault Isolation: Each DC output branch on the DSQC662 is protected by an independent overcurrent element. When a downstream module draws excessive current — due to a shorted output driver or a failed I/O card — the affected branch opens without disturbing adjacent rails. The axis computer and main computer continue to receive stable 24 VDC, allowing the controller to log the fault event and execute a controlled stop rather than a hard crash. This is a meaningful distinction in production environments where fault data capture is required for root-cause analysis.

Ground Plane Segmentation and EMC Design: The board uses a segmented ground plane strategy. The high-current servo supply return path is routed through a dedicated copper pour, physically separated from the digital logic ground. This segmentation reduces common-impedance coupling — a primary mechanism by which switching transients from servo drives contaminate logic-level signals. In IRC5 installations near high-power welding equipment or variable-frequency drives, this design characteristic directly contributes to the controller’s EMC immunity performance.

Connector Keying and Mis-insertion Prevention: All multi-pin connectors on the DSQC662 are mechanically keyed and use positive-latch retention. During field replacement under time pressure, this prevents reversed or offset connector insertion — a failure mode that can damage both the replacement board and the connected subsystem. The keying scheme is unique per connector position, eliminating ambiguity even in low-light cabinet environments.

Thermal Management: The board operates passively within the IRC5 cabinet’s forced-air cooling envelope. Component placement prioritizes thermal dissipation paths toward the cabinet airflow channel, with power-dissipating elements positioned away from temperature-sensitive logic ICs. This layout supports continuous operation at the IRC5’s rated ambient temperature ceiling without requiring board-level heatsinking.

System Integration Benefits

• Deterministic Power Sequencing: The DSQC662 maintains defined power-up and power-down sequencing across all IRC5 subsystems, ensuring the axis computer and safety circuits initialize in the correct order — a prerequisite for the IRC5’s SafeMove safety function to operate correctly.
• Fault Transparency: Independent branch protection means the IRC5 controller can identify which subsystem triggered an overcurrent event, surfacing a specific fault code rather than a generic power failure alarm. This reduces diagnostic time from hours to minutes.
• Zero-Modification Replacement: The DSQC662 is a direct OEM drop-in. No firmware changes, parameter adjustments, or wiring modifications are required after installation. The controller resumes normal operation immediately upon power-up.
• Multi-Robot Cell Compatibility: Compatible with IRC5 controllers paired with IRB 1600, IRB 2600, IRB 4600, IRB 6640, IRB 6650S, and IRB 7600 robot models, covering the majority of installed IRC5 base globally.
• Reduced MTTR: Because the board is a self-contained replaceable unit with no field-adjustable components, mean time to repair (MTTR) is limited to the physical swap and power-cycle time — typically under 30 minutes for a trained technician.
• Stable Logic Supply Under Load Transients: The 24 VDC logic rail maintains regulation during servo drive load transients, preventing spurious resets of the main computer or I/O modules during high-acceleration robot motion profiles.
• Compatibility with IRC5 Dual-Cabinet Configuration: The board supports both single-cabinet and dual-cabinet IRC5 configurations, making it a single SKU solution for facilities operating mixed IRC5 fleets.
• Long-Term Spare Parts Availability: As an OEM-designated board, the DSQC662 is supported within ABB’s spare parts lifecycle program, and third-party verified stock from siemensplc.com extends availability beyond standard OEM lead times.

Quality Assurance & Global Logistics

Every DSQC662 unit shipped from siemensplc.com is sourced through verified supply channels and subjected to a structured inspection protocol before dispatch. Visual inspection covers PCB surface condition, solder joint integrity, connector pin straightness, and component seating. Functional verification confirms rail output voltages under representative load conditions. Units are packaged in anti-static ESD bags with foam-lined cartons rated for international air freight handling.

Shipments originate from Xiamen, China — a major logistics hub with direct access to DHL, FedEx, UPS, and SF Express international networks. Standard express delivery reaches most destinations in Asia, Europe, North America, and the Middle East within 3–7 business days. For time-critical MRO requirements, same-day dispatch is available for in-stock units confirmed before 14:00 CST. Sea freight consolidation is available for bulk orders. Full export documentation — commercial invoice, packing list, and certificate of origin — is provided with every shipment. All units carry a 12-month warranty from the date of shipment.
