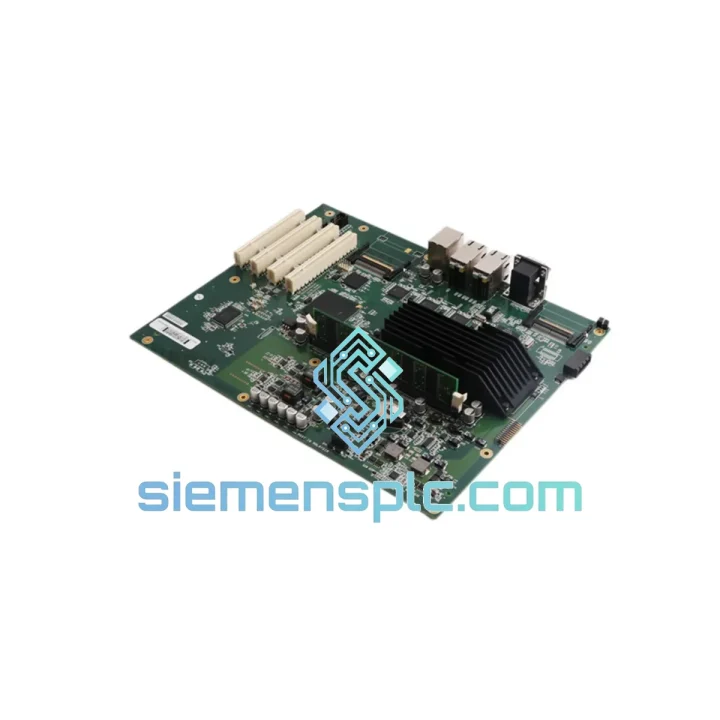

ABB DSQC639 3HAC025097-001 Main Computer Module

ABB DSQC639 3HAC025097-001 IRC5 Main Computer — Stop the Clock on Your Downtime

Your IRC5 controller is dead. The robot arm is frozen mid-cycle. The production manager is already on the phone. Every hour that line sits idle costs you — in automotive, that number can exceed $10,000/hour. The DSQC639 is the brain of the IRC5 cabinet: when it fails, nothing moves. We stock it. We ship it today.

We are not a marketplace. We are a specialist supplier of ABB automation components operating out of Xiamen, China, with direct access to verified DSQC639 units. Our team has handled hundreds of emergency IRC5 recoveries across automotive, electronics, and heavy industry. When you contact us, you reach an engineer — not a sales bot.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on IRC5 cabinets, these are the failure patterns that point directly at the DSQC639:

Fault Code 20001 — Main Computer Communication Error: The IRC5 cannot establish internal communication with the main computer on startup. Nine times out of ten, this is a DSQC639 hardware failure — not a cable issue. Before condemning the board, reseat the module and check the backplane connector pins for corrosion or bent contacts. If the fault persists after reseating, the board is gone.

Fault Code 20002 — Main Computer Boot Failure: The controller powers on but the FlexPendant stays dark or shows a perpetual boot loop. This indicates the DSQC639 cannot complete its POST sequence. Check the CompactFlash card first — it sits on the DSQC639 and holds the RobotWare installation. If the CF card is healthy (readable on a PC), the DSQC639 itself has failed.

Fault Code 50001 — System Failure, Restart Required: Intermittent crashes with this code, especially under thermal load, indicate capacitor degradation on the DSQC639 power regulation circuit. This is a slow-death failure mode — the board will work fine in the morning and crash by afternoon when the cabinet heats up.

Replacement Procedure — Critical Steps:

1. Power down the IRC5 cabinet completely. Wait 60 seconds for capacitors to discharge before opening the door.
2. Document the current RobotWare version from the FlexPendant (Controller > System Info) before the board fails completely — you will need this for firmware matching.
3. Remove the DSQC639 by releasing the two captive screws on the front panel. Slide the module straight out — do not rock it sideways, as the backplane connector is fragile.
4. Transfer the CompactFlash card from the old DSQC639 to the new unit. This card contains your robot configuration, calibration data, and RobotWare license. Do not lose it.
5. If the CF card is also damaged, you will need to reinstall RobotWare from the original installation media and restore the system backup. Always maintain a current system backup on a USB drive stored outside the cabinet.
6. After installing the new DSQC639, perform a warm start. The system will re-enumerate all I/O modules automatically — no manual address configuration is required on the DSQC639 itself.
7. Verify the RobotWare version on the new board matches your license. Mismatched firmware versions will trigger a license fault on startup.
8. Run a full axis calibration check after replacement. The DSQC639 holds calibration offsets in memory — confirm they transferred correctly from the CF card before returning the robot to production.

Note on Hardware Revisions: The DSQC639 has gone through multiple PCB revisions. Later revisions (Rev. D and above) include improved thermal management. When ordering, specify your controller serial number so we can confirm revision compatibility with your existing RobotWare version.

Reliability in Harsh Conditions

The DSQC639 was designed for the factory floor, not a server room. ABB engineered this module to operate continuously in environments that would destroy consumer-grade electronics.

The module’s conformal-coated PCB resists moisture ingress in foundry and food-processing environments where humidity regularly exceeds 80% RH. The coating prevents the dendritic growth on copper traces that causes intermittent faults in unprotected boards — a failure mode we see constantly in competitor modules that cut this corner.

Vibration is the silent killer of industrial electronics. The DSQC639 is tested to IEC 60068-2-6, which covers sinusoidal vibration across the 10–150 Hz range at accelerations up to 1g. In practice, this means the module survives being mounted in cabinets adjacent to large servo drives, hydraulic presses, and stamping equipment without connector fatigue or solder joint cracking.

Thermal cycling is where many refurbished modules fail. A genuine DSQC639 is rated for continuous operation at 55°C ambient — inside a sealed IRC5 cabinet running at full load, internal temperatures can approach this limit. Our refurbished units undergo a 48-hour thermal soak test at 50°C before dispatch. Units that show any instability during this test are rejected. We do not ship marginal boards.

ESD protection is built into the module’s input/output interfaces, but the internal logic is still vulnerable during handling. Every DSQC639 we ship leaves Xiamen in a double-layer ESD bag with a humidity indicator card. If the card shows red on arrival, photograph it and contact us immediately — we will arrange a replacement shipment without argument.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and the Port of Xiamen. This geography is not accidental. It gives us the fastest possible connection to international express freight networks.

Standard Express Timeline (DHL / FedEx Priority):

• Southeast Asia (Singapore, Thailand, Vietnam, Malaysia): 2–3 business days
• East Asia (Japan, South Korea, Taiwan): 2–3 business days
• Europe (Germany, UK, France, Netherlands, Poland): 3–5 business days
• North America (USA, Canada, Mexico): 4–6 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–5 business days
• Australia / New Zealand: 3–5 business days

Our Logistics Process: Orders confirmed before 14:00 CST are processed for same-day dispatch. We generate the AWB (Air Waybill) and provide tracking within 2 hours of handover to the carrier. All shipments include a commercial invoice, packing list, and certificate of origin. For customers in the EU, we can provide an EUR.1 movement certificate for preferential tariff treatment where applicable.

For genuinely critical situations — a line-down event with a hard deadline — contact us directly on WhatsApp. We have arranged next-flight-out courier shipments for customers facing production penalties. It costs more, but it is faster than any standard express service.

All export documentation is prepared in compliance with Chinese customs regulations and the import requirements of the destination country. We have shipped DSQC639 units to over 40 countries without a single customs seizure. We know what documentation each market requires.
