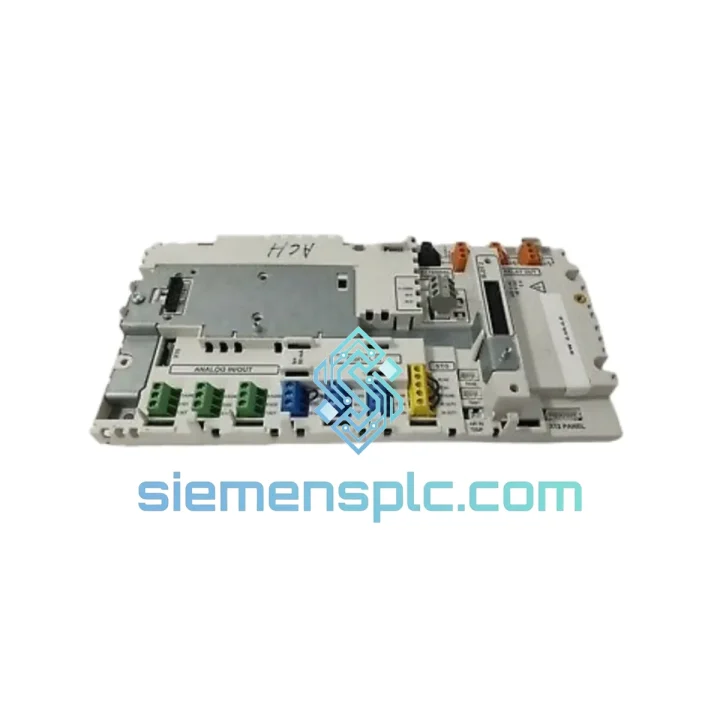

ABB CCU-24-H 3AXD50000018771 Drive Control Unit

ABB CCU-24-H 3AXD50000018771 — Stop the Clock on Your ACS880 Downtime

Your ACS880 drive is dead. The line is stopped. Every hour costs you — in lost output, in penalty clauses, in the pressure of a plant manager standing behind you asking for an ETA. The CCU-24-H (Part No. 3AXD50000018771) is the central control unit of the ACS880 platform. Without it, the drive cannot execute a single speed reference, cannot close a feedback loop, cannot talk to your PROFIBUS or PROFINET network. There is no bypass, no workaround. You need this module, and you need it now.

We stock the ABB CCU-24-H 3AXD50000018771 in Xiamen and ship globally via DHL Express and FedEx International Priority. Order confirmed before 3 PM CST ships same day. That is the only metric that matters when your production is at zero.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The CCU-24-H fails in predictable patterns. Knowing them cuts your diagnostic time from hours to minutes.

Fault Code 7081 — CCU Communication Loss: This is the most common field presentation. The drive panel goes blank or throws a communication fault immediately on power-up. Before condemning the CCU, check the DDCS fiber-optic cables for micro-fractures — a bent fiber at the connector ferrule will mimic a dead CCU perfectly. Swap the fiber first. If the fault persists after fiber swap, the CCU-24-H is the culprit.

Fault Code 7010 — Control Board Overtemperature: Caused by blocked ventilation channels inside the drive cabinet or a failed cooling fan on the CCU itself. If the board has been running hot for extended periods, internal capacitors on the control supply rail degrade. A replacement CCU-24-H resolves this permanently; do not attempt to re-run a thermally stressed board.

Fault Code 3210 — Encoder Interface Error: When the CCU’s encoder interface circuit fails, the drive loses shaft position feedback and trips immediately under load. This is common in high-vibration installations (compressors, crushers). The encoder cable is rarely the cause when the fault appears suddenly after years of stable operation — the CCU interface hardware has failed.

Replacement Procedure — Key Steps:

• Power down the drive fully and lock out / tag out (LOTO). Wait a minimum of 5 minutes for DC bus capacitors to discharge below 50 V — verify with a calibrated meter before touching any internal component.
• Export the current parameter set using ABB Drive Composer before removal. The CCU-24-H stores all drive parameters internally. A replacement unit ships with factory defaults — you must restore your parameter backup or the drive will not behave correctly on first start.
• Note the firmware version on the outgoing CCU (visible on the label or via Drive Composer). The replacement unit must run the same firmware version or a compatible upgrade. Mismatched firmware between the CCU and the AINT board causes Fault 7082 on first power-up.
• Disconnect all fiber-optic DDCS cables and I/O connectors in sequence. Label each connector before removal — the CCU-24-H has multiple identical-looking fiber ports and incorrect reconnection causes immediate communication faults.
• Seat the replacement CCU-24-H firmly. The board connector is a zero-insertion-force type — do not force it. Restore all fiber and I/O connections, restore the parameter backup, then power up with the drive in local control mode before switching to remote.
• Verify fieldbus communication re-establishment with the PLC/DCS before releasing the drive to automatic operation.

Firmware Matching Note: ACS880 firmware versions prior to 2.60 have a known issue with CCU-24-H units manufactured after 2021. If your drive was commissioned before 2020 and you are installing a new CCU-24-H, upgrade the firmware to the latest stable release via Drive Composer before commissioning. Failure to do so results in intermittent Fault 7081 under load.

Reliability in Harsh Conditions

The ACS880 platform — and the CCU-24-H specifically — was engineered for environments that destroy lesser electronics. The board operates across an ambient temperature range of -15°C to +55°C without derating, and the conformal coating on the PCB provides protection against condensation, industrial coolant mist, and airborne conductive particulates common in mining and metals processing environments.

Vibration resistance is validated to IEC 60068-2-6: 2 to 9 Hz at ±3.5 mm displacement, 9 to 200 Hz at 10 m/s². In practice, this means the CCU-24-H survives continuous operation on compressor skids and crusher drives where mechanical vibration is a constant background condition. The board-to-board connectors use positive-locking mechanisms specifically to prevent vibration-induced intermittent contact — the single most common failure mode on competing platforms.

Humidity tolerance is rated to 95% RH non-condensing. For installations in coastal or tropical environments where condensation is a real risk during shutdown cycles, the conformal coating provides the primary protection layer. Ensure the drive cabinet door seals are intact — a compromised cabinet seal will eventually defeat even a conformal-coated board through repeated condensation cycles.

EMC immunity is designed to IEC 61800-3 Category C3, appropriate for industrial environments with significant conducted and radiated interference from adjacent variable-speed drives, welding equipment, and high-current switching gear. The CCU-24-H’s isolated power supply architecture prevents ground loop interference from corrupting control signals — a critical feature in large motor control centers where multiple drives share a common ground bus.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for orders confirmed before 15:00 CST. The CCU-24-H 3AXD50000018771 is a controlled-dimension parcel — approximately 35 × 25 × 12 cm, 1.2 kg packed — which qualifies for DHL Express Worldwide and FedEx International Priority door-to-door service.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Malaysia, Thailand, Vietnam): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Germany, Netherlands, UK, Poland): 4–5 business days
• North America (USA, Canada, Mexico): 4–6 business days
• Australia / New Zealand: 3–5 business days
• South America (Brazil, Chile, Colombia): 5–7 business days

Every shipment includes a full commercial invoice, packing list, and certificate of origin for customs clearance. HS Code 8537.10 applies in most jurisdictions. For destinations requiring import permits or specific documentation (e.g., India BIS, Brazil INMETRO), contact us before ordering — we handle the paperwork daily and know the requirements for your country.

Packaging is anti-static bubble wrap inside a rigid double-wall carton with corner protection. The CCU-24-H is a static-sensitive assembly — we do not cut corners on packaging. Every unit ships with a desiccant pack and humidity indicator card inside the sealed inner bag. If the indicator shows red on arrival, document it and contact us immediately — that is a carrier handling issue and we will process a replacement claim on your behalf.

Tracking numbers are issued within 2 hours of dispatch and sent directly to your registered email. For urgent shipments, we provide the DHL or FedEx AWB number via WhatsApp so you can monitor the shipment in real time.
