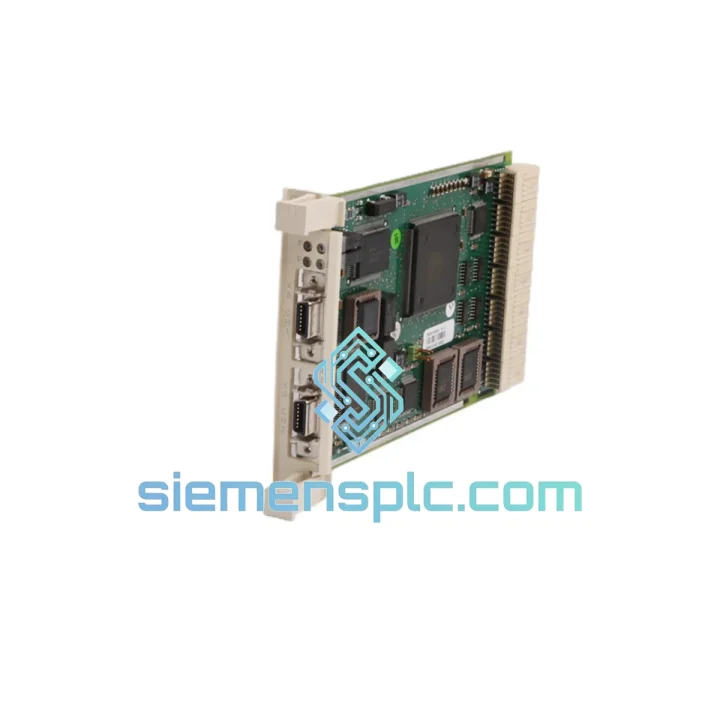

ABB CI522A 3BSE018283R1 Fieldbus Communication Module – Advant Controller

ABB CI522A 3BSE018283R1 — AF100 Fieldbus Interface Module for Advant AC450/AC460 Controllers

The CI522A (catalog reference 3BSE018283R1) is ABB’s dedicated AF100 fieldbus communication interface for the Advant Controller platform. It occupies a standard slot in the AC450 or AC460 controller rack and establishes a hardware-level, deterministic data path between the controller’s internal backplane bus and the AF100 fieldbus segment. Unlike software-layer communication bridges, the CI522A implements the AF100 token-passing protocol entirely in onboard firmware and dedicated ASICs, removing OS scheduling jitter from the communication path and guaranteeing cycle times as low as 5 ms regardless of controller CPU load. In process plants where a single fieldbus dropout can trigger an emergency shutdown sequence — and where each unplanned outage hour carries a cost of $50,000 to $500,000 — this hardware determinism is not a feature preference; it is an engineering requirement.

The module supports both electrical and optical AF100 physical layers. The optical variant eliminates galvanic coupling between nodes, which is the primary failure mechanism in high-EMI environments such as electric arc furnace control rooms, variable-frequency drive (VFD) motor control centers, and high-voltage switchgear buildings. Optical isolation also extends the maximum segment length to 2 km per hop without signal repeaters, enabling centralized Advant DCS architectures to reach geographically distributed remote I/O stations in water treatment, pipeline, and mining applications.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

ASIC-Based Protocol Engine: The CI522A does not rely on the host controller’s CPU to execute AF100 token-passing logic. A dedicated communication ASIC handles frame assembly, token management, node addressing, and error detection autonomously. This architecture decouples fieldbus timing from controller scan cycle variations — a critical design decision that prevents the communication jitter seen in software-stack implementations when the CPU is under heavy PID or sequence logic load.

Optical Isolation Architecture: In the optical AF100 variant, the electrical-to-optical conversion stage incorporates a galvanic isolation barrier rated at 1,500 V RMS. This barrier breaks the ground reference continuity between the controller rack and the fieldbus segment, eliminating the common-mode noise injection that occurs in plants where large motor drives, welding equipment, or high-voltage switchgear share the same grounding infrastructure. Ground loop currents that would otherwise corrupt 4–20 mA analog signals or trigger false digital input transitions are blocked at the optical interface boundary.

Redundancy Arbitration Logic: When two CI522A modules are installed in a redundant configuration, the active module continuously broadcasts a heartbeat frame on the primary AF100 channel. The standby module monitors this heartbeat with a hardware watchdog timer. On detection of a missed heartbeat — caused by cable fault, connector failure, or primary module hardware fault — the standby module asserts bus mastership within one token-passing cycle, typically under 1 ms at 5 Mbit/s. This switchover is transparent to the AC450 controller and to all AF100 slave nodes; no re-initialization of the fieldbus segment occurs.

EMC Design: The module’s PCB layout follows a four-layer stackup with dedicated ground planes separating the digital logic layer from the analog signal conditioning layer. Ferrite bead filters are placed on all backplane power rails entering the module to suppress high-frequency conducted emissions from the controller rack’s switching power supply. The module housing is a die-cast aluminum shield bonded to the rack chassis ground, providing a Faraday cage that attenuates radiated emissions and improves immunity to external RF fields — a design requirement for installations near high-power radio transmitters or induction heating equipment.

Diagnostic Register Architecture: The CI522A exposes a set of onboard diagnostic registers accessible via the AC450 backplane. These registers log per-node communication error counts, token rotation time, bus utilization percentage, and last-fault timestamps with millisecond resolution. Maintenance engineers can read these registers through ABB’s Control Builder or MasterView 800 HMI without interrupting fieldbus operation, enabling proactive identification of degrading cable connections or failing node transceivers before they cause a process upset.

System Integration Benefits

• Deterministic real-time response: The ASIC-based AF100 stack guarantees a maximum cycle time of 5 ms independent of controller CPU load, enabling closed-loop PID control of fast process variables such as furnace temperature ramp rates and compressor surge control without communication-induced phase lag.
• Zero-impact redundancy switchover: The sub-1 ms active/standby switchover is transparent to both the AC450 controller and all AF100 slave nodes, eliminating the process bump that occurs with software-managed redundancy schemes that require fieldbus re-initialization after a channel fault.
• Extended reach without repeaters: The 2 km optical segment length allows a single CI522A to serve remote I/O stations in geographically distributed installations — pipeline pump stations, water treatment outfall structures, mining conveyor head-ends — without intermediate repeater hardware that adds failure points and maintenance burden.
• High node density: Support for 125 nodes per segment reduces the number of CI522A modules required in large DCS installations, lowering rack slot consumption and simplifying the controller cabinet layout in brownfield expansion projects.
• Transparent diagnostics: Per-node error counters and bus utilization metrics accessible via standard ABB engineering tools allow maintenance teams to trend communication health over time, scheduling cable or connector maintenance during planned outages rather than reacting to unplanned failures.
• Ground loop immunity: Optical isolation at 1,500 V RMS eliminates the ground loop interference that corrupts analog I/O accuracy in plants with shared grounding infrastructure, removing a common source of spurious process alarms and false trip signals.
• Backward compatibility: The CI522A is a direct slot-compatible replacement for earlier ABB AF100 interface modules in AC450/AC460 racks. Existing fieldbus wiring, node addressing, and S800 I/O configurations require no modification, reducing the engineering effort and risk associated with brownfield module replacement.
• Scalable multi-segment architecture: Multiple CI522A modules can be installed in the same controller rack, each managing an independent AF100 segment. This allows the Advant DCS to scale from a single-segment pilot plant to a multi-segment full-scale production facility without architectural redesign of the controller layer.

Quality Assurance & Global Logistics

Genuine ABB Origin: Every CI522A 3BSE018283R1 unit supplied by siemensplc.com is sourced through traceable channels — authorized ABB distribution partners and certified industrial surplus with full chain-of-custody documentation. Units are not sourced from anonymous brokers or unverified secondary markets. Label authenticity, PCB markings, connector plating, and housing mold geometry are verified against ABB OEM reference units before acceptance into stock.

Pre-Shipment Verification Protocol:

• Visual inspection: ABB part number label, date code, serial number, and PCB revision marking verified against factory reference data. Connector pins inspected for plating integrity and absence of re-soldering evidence.
• Functional power-on test: Module installed in a compatible AC450 test rack. Firmware version, self-diagnostic LED sequence, and backplane communication handshake verified against ABB factory specifications.
• AF100 communication test: Active AF100 fieldbus communication established with a test slave node. Token rotation time, data throughput, and error rate measured and logged. Results compared to ABB factory benchmark data.
• Documentation package assembly: Certificate of Conformance, functional test report, high-resolution inspection photographs (all six faces), and ABB datasheet reference compiled and attached to the shipment record.

Logistics from Xiamen, China: siemensplc.com operates from Xiamen — a designated free-trade port with direct air freight connections to major industrial hubs in Europe, North America, the Middle East, and Southeast Asia. In-stock units are dispatched within 1–3 business days via DHL Express, FedEx International Priority, or UPS Worldwide Express. Transit times to Western Europe and North America are typically 3–5 business days; Middle East and Southeast Asia 2–4 business days. All shipments include a commercial invoice, packing list, and country-of-origin declaration for customs clearance. Xiamen Customs export compliance is handled in-house, with HS code classification and export licensing managed per Chinese customs regulations — eliminating the documentation delays common with smaller brokers.
