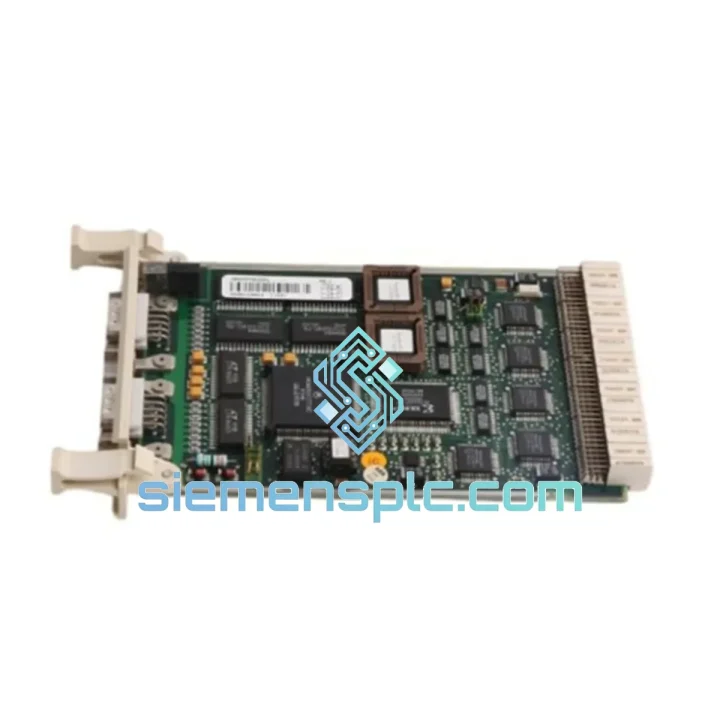

ABB CI531 3BSE003825R1 Serial Communication Module – AC 500 Series

ABB CI531 3BSE003825R1 — RS-232 Serial Interface Submodule for AC 500 & Advant Controller Platforms

The ABB CI531 (catalog reference 3BSE003825R1) is a dedicated RS-232C serial interface submodule designed for integration into the ABB AC 500 and Advant Controller 31/41/70/110/160/410/450/510 CPU families. It occupies the submodule bay of the host CPU terminal base, drawing power directly from the backplane without consuming a discrete I/O slot. The module establishes a single full-duplex, point-to-point serial channel conforming to EIA/TIA-232-F, enabling deterministic data exchange between the PLC and any RS-232-capable peripheral — including legacy HMI panels, barcode readers, weigh terminals, custody-transfer meters, and third-party instrumentation — without external protocol converters or intermediate gateways.

In process control architectures where RS-232 remains the mandated or legacy-standard interface, the CI531 eliminates the cost and latency overhead of an external serial-to-Ethernet bridge. The hardwired serial path bypasses the TCP/IP stack entirely, delivering sub-millisecond polling cycles that are not achievable through software-emulated COM ports or USB adapters. This characteristic is particularly relevant in pharmaceutical batch recording, custody-transfer metering, and checkweigher integration, where timestamp accuracy and data integrity are subject to regulatory audit.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CI531’s internal architecture centers on a UART controller interfaced to the AC 500 backplane via a parallel data bus. The UART handles asynchronous framing — start bit, configurable data bits (7 or 8), parity (none/even/odd), and stop bits — entirely in hardware, offloading the CPU from bit-level timing management. This is architecturally significant: the host PM5xx CPU’s application task cycle is not burdened by serial interrupt latency, because the UART buffers incoming characters autonomously until the CPU’s communication function block polls the receive FIFO.

Optical Isolation Architecture: The RS-232 transceiver stage is separated from the backplane logic by a dual-channel optocoupler array on both TX and RX lines. This galvanic barrier presents a minimum 500 V isolation rating between the field-side DB9 connector and the CPU backplane, suppressing ground-loop currents that are endemic in large industrial panels where multiple earthing points exist at different potentials. In environments with variable-frequency drives (VFDs) or high-current motor starters sharing the same cabinet, this isolation prevents common-mode noise from corrupting serial data frames.

EMC Design: The module’s PCB layout routes the RS-232 signal traces with controlled impedance and includes ferrite bead filtering on the DB9 connector pins. The metal submodule housing provides a Faraday shield effect, attenuating radiated emissions from the serial cable stub. This design approach aligns with IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge) immunity requirements applicable to industrial control equipment.

Backplane Bus Arbitration: The CI531 participates in the AC 500 submodule arbitration protocol, which assigns fixed time slots for submodule data exchange during each CPU scan cycle. This deterministic slot allocation means serial data availability is synchronized with the PLC task scheduler, eliminating race conditions between the communication function block and the UART buffer read operation.

System Integration Benefits

• Zero-slot I/O consumption: The CI531 installs in the dedicated submodule bay of the CPU terminal base, preserving all I/O expansion slots for digital and analog modules — a measurable advantage in compact panel designs with constrained rack space.
• Deterministic polling latency: The hardwired UART path delivers consistent sub-5 ms response times for Modbus RTU polling cycles, independent of network congestion or OS scheduling jitter that affects Ethernet-based alternatives.
• Legacy device retention: Facilities operating RS-232 instruments — flow computers, gas chromatographs, weigh controllers, or protection relays — can integrate them directly into the AC 500 control loop without replacing field hardware, deferring capital expenditure.
• Simplified panel wiring: A single DB9 cable replaces the multi-wire terminal strip wiring required by discrete UART-to-terminal-block adapters, reducing wiring errors and panel assembly time.
• Protocol transparency: ASCII mode passes raw byte streams to the CPU application, allowing engineers to implement custom framing logic in IEC 61131-3 structured text — useful for proprietary instrument protocols not covered by standard function blocks.
• Diagnostic transparency: The AC 500 CPU’s system diagnostics log communication errors (framing errors, parity errors, buffer overruns) from the CI531 UART to the standard diagnostic buffer, accessible via Control Builder or PROFIBUS DP diagnostic tools without additional hardware.
• Modbus RTU master/slave flexibility: The module supports both master and slave roles in Modbus RTU, enabling the AC 500 to either poll downstream field devices or respond to queries from a supervisory SCADA system on the same serial segment.
• Long-lifecycle spare parts availability: The CI531 is part of ABB’s extended-lifecycle Advant/AC 500 ecosystem. Replacement units remain available through authorized distribution channels, supporting maintenance strategies for installations with 15–20 year operational horizons.

Quality Assurance & Global Logistics

Every CI531 3BSE003825R1 unit supplied by siemensplc.com is sourced as genuine ABB factory-manufactured hardware. Each module retains its original ABB part number label, date code, and factory seal — traceable documentation is available upon request for incoming inspection or regulatory compliance records.

Pre-shipment handling includes visual inspection of the PCB, connector pins, and housing integrity, followed by packaging verification to confirm ESD-protective inner bag and anti-shock outer carton are intact. Units are stored in a climate-controlled warehouse in Xiamen, China, maintaining temperature and humidity within ABB’s specified storage envelope.

Logistics from Xiamen cover all major international trade lanes. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every shipment. HS Code 8537.10 applies to this product category for customs classification. Express courier (DHL, FedEx, UPS) delivers to most destinations within 3–7 business days. For bulk orders or project-based procurement, sea freight consolidation and door-to-door 3PL arrangements are available on request. All shipments are fully insured and tracked from dispatch to delivery confirmation.
