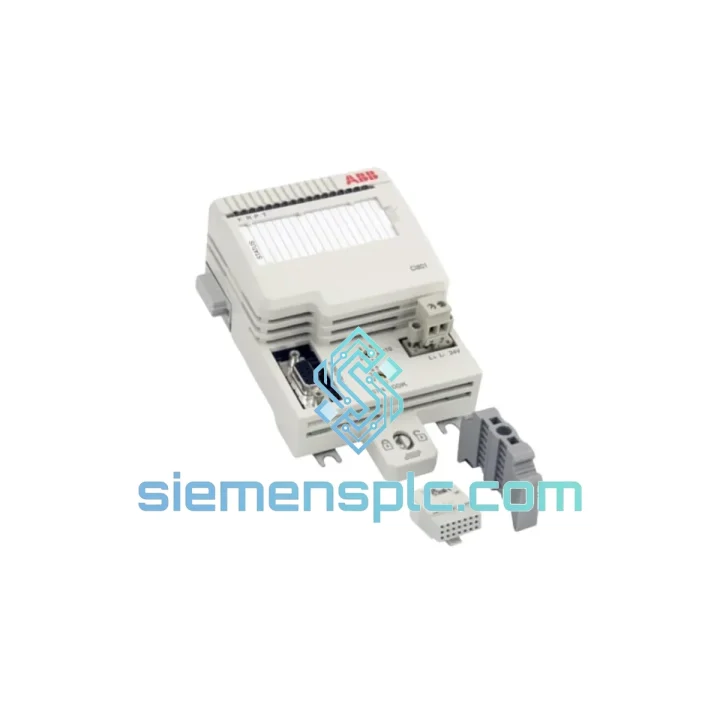

ABB CI801 3BSE038540R1 Communication Module

ABB CI801 3BSE038540R1 — Stop the Bleed: PROFIBUS DP Failure Costs You $10,000+ Per Hour

Your AC800M controller just lost its PROFIBUS DP link. Field devices are deaf. The DCS is throwing alarms. Production is flat. Every minute you spend waiting for a module is money walking out the door — and you know it. The CI801 3BSE038540R1 is the exact card you need, and we have it on the shelf right now in Xiamen, ready to clear customs and land on your bench faster than your procurement team can raise a PO.

We don’t sell hope. We ship hardware. Same-day dispatch on confirmed orders before 15:00 CST. DHL Express door-to-door in 2–5 business days to most industrial hubs worldwide. No minimum order. No waiting list.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls teach you patterns. Here’s what actually goes wrong with the CI801 and how to handle the swap without creating a second problem:

Fault Code ERR 1 / BF LED solid red: Bus fault — the module has lost communication with all or most DP slaves. Before condemning the CI801, check your PROFIBUS cable termination resistors at both segment ends. A missing or failed terminator causes identical symptoms. Swap the terminator first; it’s a 30-second fix. If the BF LED persists after terminator check, the CI801 itself is the culprit.

Fault Code ERR 3 / SF LED flashing: Station failure on one or more slaves. This is usually a slave device issue, not the CI801. Pull the GSD file diagnostics in Control Builder M — it will identify the exact slave address that dropped. Don’t replace the CI801 for an ERR 3 without isolating the faulty slave first.

Module not recognized after insertion: The AC800M performs automatic slot addressing on power-up. If you insert the CI801 into a different slot than the original, the controller will flag a hardware mismatch. Either restore the module to its original slot position, or update the hardware configuration in Control Builder M and download to the controller. Do not skip this step — the controller will not communicate with a module in an unregistered slot.

Firmware mismatch warning: If Control Builder M reports a firmware version conflict after module swap, do not force-download application code before resolving it. Connect to the module via the engineering port, navigate to the firmware management section, and flash the correct version that matches your project’s compiled firmware baseline. Running mismatched firmware on a live plant is a safety risk.

Replacement procedure — field-tested sequence:

• Back up the full AC800M project in Control Builder M before touching hardware.
• Set the controller to STOP mode — never hot-swap a CI801 under load.
• Note the exact slot position of the failed module before removal.
• Remove the failed CI801; inspect the backplane connector for bent pins or burn marks.
• Insert the replacement CI801 into the identical slot.
• Power up and verify the module LED sequence: RUN green, BF off, SF off.
• Confirm all DP slave addresses are online in the diagnostics view.
• Return controller to RUN mode and monitor for 10 minutes before leaving the panel.

No DIP switches or rotary address selectors are present on the CI801 — addressing is handled entirely through software configuration in Control Builder M. This simplifies the swap but means your configuration backup is non-negotiable.

Reliability in Harsh Conditions

The CI801 was not designed for a climate-controlled server room. ABB built this module for the realities of industrial plant environments — and those realities are unforgiving.

The module’s PCB assembly uses conformal coating on critical signal traces, providing a moisture barrier against the condensation cycles common in coastal refineries, offshore platforms, and tropical processing facilities. Humidity excursions up to 95% RH non-condensing are within spec — the module keeps communicating while lesser hardware corrodes.

Vibration resistance meets IEC 60068-2-6 test profiles, covering the continuous low-frequency vibration generated by rotating machinery, compressors, and pump skids mounted in the same structure as the control cabinet. The backplane locking mechanism provides positive mechanical retention — the module will not work loose under vibration.

Thermal performance is validated across the full 0–55 °C operating range with no derating. In practice, a well-ventilated AC800M cabinet running at 45 °C ambient is well within the module’s comfort zone. The onboard components are selected for industrial temperature grades, not commercial-grade parts that drift at elevated temperatures.

EMC shielding on the RS-485 PROFIBUS interface suppresses conducted and radiated interference from variable frequency drives, contactors, and high-current switching equipment sharing the same cable trays. This matters in motor control centers where PROFIBUS cables run parallel to power cables — a scenario that kills poorly shielded fieldbus hardware within months.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. This is not a drop-ship arrangement. Stock is physically on our shelves, inspected, and ready to pack.

Order confirmed before 15:00 CST → same-day dispatch. Your tracking number arrives by email within 2 hours of shipment.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–5 business days via FedEx International Priority
• Australia & New Zealand: 3–4 business days via DHL Express
• South America (Brazil, Chile, Colombia): 5–7 business days via DHL Express

Every shipment includes a full commercial invoice, packing list, and certificate of origin — the documentation your customs broker needs to clear the shipment without delays. For projects requiring ATA Carnet, CITES exemption letters, or specific HS code declarations, contact us before ordering and we will prepare the paperwork in advance.

ESD-safe packaging is standard: anti-static bag, foam-lined inner carton, double-wall outer carton. The CI801 arrives at your facility in the same condition it left ours.
