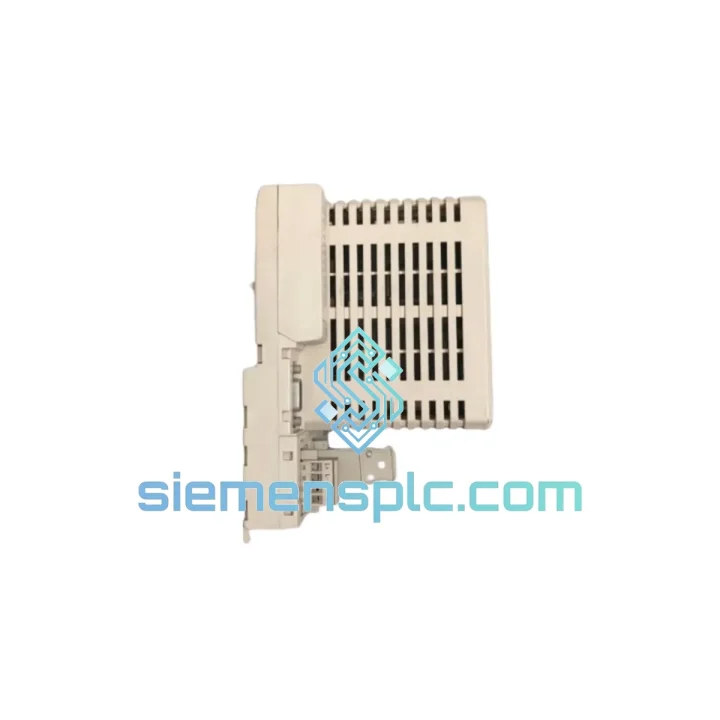

ABB CI810B 3BSE020520R1 Fieldbus Communication Interface

ABB CI810B 3BSE020520R1 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Every minute your AC800M DCS sits offline, you’re bleeding money. A failed CI810B doesn’t just kill one loop — it takes down your entire PROFIBUS DP segment, potentially freezing dozens of field devices simultaneously. We stock the CI810B 3BSE020520R1 in Xiamen, tested and boxed, ready to clear customs and land on your bench within 48–72 hours anywhere on the planet. No lead-time games, no “check back next week.” You call, we ship.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure signatures on CI810B:

• BF LED solid red: Bus fault — the module has lost communication with one or more DP slaves. Before swapping the card, walk the segment first. Check termination resistors at both ends of the cable. A missing or double termination at 12 Mbit/s will kill the entire segment and mimic a dead CI810B.
• SF LED flashing: System fault — usually a firmware mismatch after a controller PM8xx swap. The CI810B firmware must align with the Control Builder M project version. Mismatched firmware causes the module to boot into a degraded state where it appears dead but is actually rejecting the configuration download.
• Module not recognized by PM8xx: Reseat the module firmly. The backplane connector on AC800M units is notorious for oxidation in humid environments. Clean the gold fingers with IPA before reinserting. If still unrecognized, the backplane slot itself may be damaged — test in an adjacent slot before condemning the module.
• Intermittent slave dropouts at high baud rate: Drop from 12 Mbit/s to 1.5 Mbit/s temporarily. If dropouts stop, the issue is cable quality or segment length, not the CI810B. Measure cable impedance — PROFIBUS Type A cable must be 135–165 Ω. Anything outside that range causes reflections that corrupt frames at high speed.

Step-by-step hot-swap replacement procedure:

1. In Control Builder M, note the current CI810B configuration — slave addresses, baud rate, watchdog timeout, and HSB partner assignment if redundant.
2. If running HSB redundancy, force a manual switchover to the standby CI810B before touching the primary. Confirm the standby has assumed master role (check the ACT LED on the standby module).
3. Disconnect the PROFIBUS DP cable from the 9-pin D-sub connector. Label it — polarity matters on PROFIBUS (A/B lines).
4. Slide the CI810B out of its slot. The module is not hot-swappable in all AC800M firmware versions — check your PM8xx firmware release notes. On older firmware, a controller restart may be required.
5. Insert the replacement CI810B. Do not force it — the module is keyed. Misalignment will bend backplane pins.
6. Reconnect the PROFIBUS cable. Verify A/B polarity matches the original connection (A = negative, B = positive per PROFIBUS convention).
7. In Control Builder M, download the configuration to the new module. Monitor the BF and SF LEDs — both should extinguish within 30 seconds of a successful download and slave enumeration.
8. Verify all slave devices are back online in the diagnostic view. Check cyclic data quality flags before releasing the loop to process control.

Address and DIP switch notes: The CI810B does not use physical DIP switches for addressing — its slot position within the AC800M controller unit determines its logical address in the Control Builder M project. If you move the module to a different slot, you must update the hardware configuration in the project and re-download. Firmware is loaded via Control Builder M over the internal S-bus; there is no standalone firmware flash utility for this module.

Reliability in Harsh Conditions

The CI810B was designed for process industries where “harsh” is the baseline, not the exception. ABB’s AC800M platform is qualified for continuous operation in environments that would degrade consumer-grade electronics within weeks.

Vibration tolerance is validated to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), covering the mechanical stress profiles found in compressor halls, turbine decks, and offshore platforms. The module’s PCB uses conformal coating on production variants, providing a moisture barrier against the condensation cycles common in coastal and tropical installations.

Thermal performance is validated across the full 0–55 °C operating range with no derating required. In practice, AC800M cabinets in poorly ventilated substations routinely see 45–50 °C ambient — the CI810B handles this without throttling or communication degradation. The backplane power architecture eliminates the external PSU as a failure point, removing one of the most common causes of fieldbus interface failures in competing platforms.

EMC immunity is certified to IEC 61000-4 series, including ESD (Level 3), radiated immunity (Level 3), and fast transient/burst (Level 4) — the levels required for installation in the same cabinet as variable frequency drives and high-current switchgear. In environments with severe conducted interference, the CI810B’s galvanic isolation on the PROFIBUS port prevents ground loops from corrupting communication frames.

Units in our Xiamen stock are stored in climate-controlled conditions (20–25 °C, 40–60% RH) in anti-static packaging. Each module undergoes a power-on self-test and visual inspection before dispatch. We do not ship modules with damaged connectors, missing labels, or evidence of prior rework — if it doesn’t pass our bench check, it doesn’t leave the warehouse.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx gateway access. Here’s exactly what happens after you confirm your order:

• Day 0 (Order Confirmation): Payment confirmed before 3:00 PM CST → same-day pick, pack, and handover to DHL/FedEx. Orders confirmed after 3:00 PM ship next business morning.
• Day 1: Tracking number issued. Shipment departs Xiamen Gaoqi International Airport on the evening freight flight. Export documentation (commercial invoice, packing list, certificate of origin) generated and attached to the AWB.
• Day 2–3 (Europe / North America): DHL Express or FedEx International Priority transit. Customs clearance handled by the carrier’s brokerage team. HS code 8537.10 declared for smooth clearance in most jurisdictions.
• Day 3–5 (Southeast Asia / Middle East / South America): Slightly extended transit depending on destination customs processing speed. We pre-fill all required customs data to avoid holds.
• Packaging: Anti-static bag → foam-lined rigid carton → outer corrugated box. Fragile and ESD-sensitive labels applied. The CI810B arrives in the same condition it left our warehouse.
• Insurance: Full declared value insurance available on request. Recommended for orders above USD 500.

We’ve shipped to refineries in Saudi Arabia, paper mills in Finland, power plants in Brazil, and water treatment facilities in Australia. The logistics process is the same every time — fast, documented, and traceable end to end.
