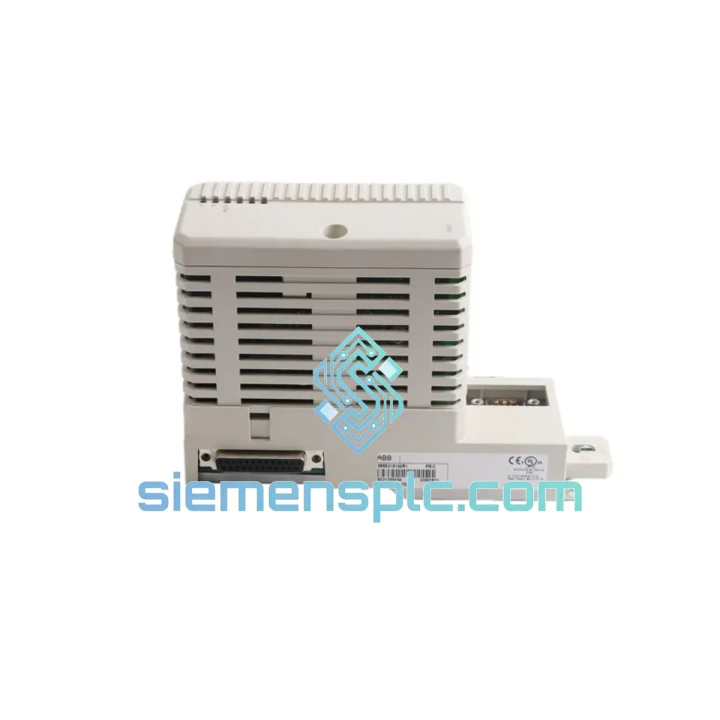

ABB CI852K01 Fieldbus Communication Module

ABB CI852K01 3BSE018102R1 — Stop the Clock on Your Downtime, Ship Today

Every hour a PROFIBUS segment sits silent costs real money. A failed CI852K01 doesn’t just drop one device — it can take an entire fieldbus trunk offline, leaving drives, valves, and transmitters deaf to the controller. We stock the ABB CI852K01 (3BSE018102R1) precisely for this scenario: verified, bench-checked, packed, and ready to leave Xiamen on the next available DHL or FedEx flight. No lead-time negotiation, no factory allocation queue. You call, we ship.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls teach you that most CI852K01 failures fall into three buckets. Knowing which one you’re dealing with before the replacement arrives saves another hour on-site.

Fault Pattern 1 — Module Not Recognized by PM8xx Controller
Symptom: The AC 800M CPU logs a hardware fault immediately after power-up; the CI852K01 slot shows a red LED or no LED at all. Root cause is almost always a failed internal FPGA or corrupted firmware flash caused by a power transient. Replacement procedure: power down the rack, seat the new CI852K01 firmly until the latch clicks, restore power. The controller performs automatic slot addressing — no DIP switch setting is required on this module. Confirm the slot address in Control Builder M matches the physical slot position.

Fault Pattern 2 — PROFIBUS Segment Intermittent / Partial Loss
Symptom: Some slaves drop off cyclically; GSD diagnostics show CRC errors or watchdog timeouts. Before condemning the CI852K01, check termination resistors at both ends of the trunk — a missing 220 Ω / 390 Ω terminator mimics a dying interface card. If termination is confirmed correct and errors persist above 12 Mbit/s, step the baud rate down to 1.5 Mbit/s in the hardware configuration and retest. If errors clear, the module’s line driver is degraded and replacement is warranted.

Fault Pattern 3 — Firmware Mismatch After Replacement
Symptom: Module seats correctly, LEDs cycle normally, but Control Builder M reports a firmware version conflict. The CI852K01 ships with factory firmware. If your project was built against a specific firmware revision, use the ABB firmware download tool (part of the AC 800M software suite) to flash the target version before going live. Always match the firmware revision documented in your project’s hardware configuration file (.hwd). Mismatched firmware will not cause a hard fault but can produce subtle timing deviations on high-speed PROFIBUS segments.

Replacement Checklist (field-ready):

• Power down the AC 800M rack — hot-swap is not supported on this module family
• Ground yourself with an ESD wrist strap before handling
• Note the slot number before extraction — photograph the rack if needed
• Seat the new CI852K01, confirm latch engagement
• Power up; verify green RUN LED on module within 30 seconds
• Check Control Builder M for slot recognition and firmware version
• Force a PROFIBUS scan and confirm all slave GSD entries respond
• Clear any latched alarms in the DCS historian before handing back to operations

Reliability in Harsh Conditions

The CI852K01 was engineered for process plant environments, not climate-controlled server rooms. The module’s conformal-coated PCB resists condensation and airborne contaminants common in chemical and offshore installations. Vibration tolerance meets IEC 60068-2-6 test Fc, covering the mechanical shock profiles typical of compressor halls and pump skids. The operating temperature ceiling of +55 °C provides headroom even in poorly ventilated marshalling cabinets during summer shutdowns.

Internal power regulation is isolated from the backplane bus, meaning a voltage spike on the rack supply does not directly couple into the PROFIBUS line driver — a design detail that explains why these modules outlast cheaper third-party alternatives in electrically noisy environments. Units in our stock are stored in climate-controlled, ESD-safe racking and inspected for label integrity, connector pin condition, and housing cracks before dispatch. Any unit showing cosmetic or physical anomalies is quarantined and not offered for sale.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx gateway access. Here is what happens after you confirm your order:

• Same-day cut-off: Orders confirmed before 15:00 CST are packed and handed to the carrier the same business day
• DHL Express Worldwide: Typical transit 1–3 business days to Europe, Middle East, and Southeast Asia; 2–4 days to the Americas
• FedEx International Priority: Available as an alternative for destinations where FedEx has a service advantage
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared for every shipment — no customs delays caused by missing paperwork
• HS Code: 8537.10 (boards, panels, consoles for electric control) — pre-declared to avoid reclassification holds
• Tracking: AWB number sent by email within 2 hours of carrier pickup
• Bulk orders: For 3+ units, consolidated packing reduces dimensional weight charges — ask for a freight quote

We have shipped to refineries in Saudi Arabia, automotive plants in Germany, water treatment facilities in Australia, and paper mills in Scandinavia. The logistics process is the same regardless of destination: fast, documented, and traceable.
