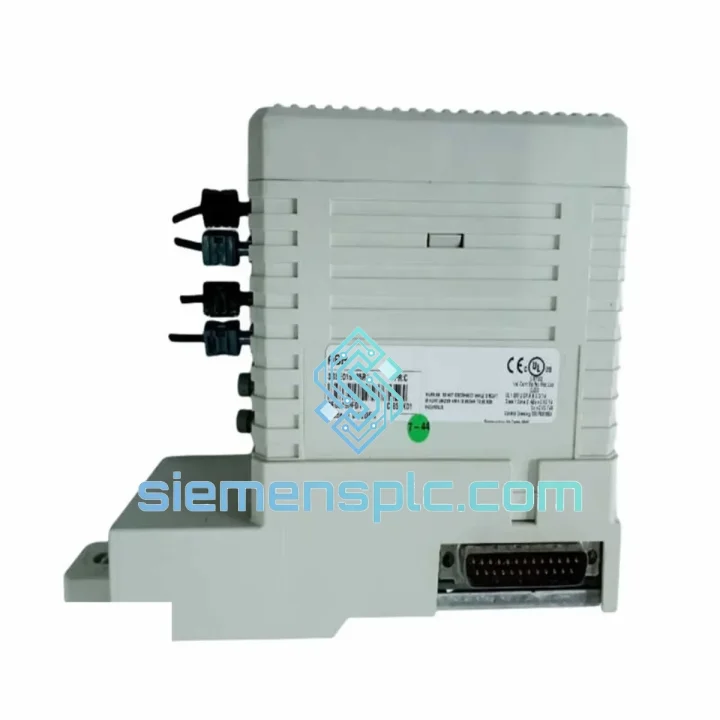

ABB CI858K01 3BSE018135R1 DCS Interface Module – AC800M Series

ABB CI858K01 (3BSE018135R1) — PROFIBUS DP Master Interface in AC800M Distributed Control Architecture

The CI858K01, carrying ABB order code 3BSE018135R1, is a dedicated PROFIBUS DP communication interface module engineered for the AC800M Distributed Control System platform. Within a process control loop, this module occupies the communication layer between the AC800M processor (PM8xx series) and the PROFIBUS DP field segment — a position that directly governs the determinism, diagnostic transparency, and fault-tolerance of the entire field device network. Its role is not peripheral: every cyclic data exchange between the controller and field instruments, drives, remote I/O stations, or third-party subsystems passes through the CI858K01’s internal PROFIBUS DP stack.

The module mounts directly onto the AC800M controller unit via the internal S100 module bus. The PM8xx processor dispatches cyclic process data and acyclic parameter/diagnostic requests across this high-speed internal bus to the CI858K01, which then autonomously manages all PROFIBUS DP master functions on the external segment: token-ring arbitration, slave polling sequences, GSD-based device configuration, and fault event reporting. This architecture offloads PROFIBUS protocol processing from the main CPU, preserving controller scan-cycle headroom for closed-loop control execution.

In redundant AC800M configurations, a secondary CI858K01 installed on the standby controller continuously monitors the PROFIBUS DP bus. Upon primary controller failover — whether triggered by hardware fault, watchdog timeout, or planned maintenance — the standby CI858K01 assumes master role without re-initializing the slave population, maintaining uninterrupted field device communication. This bumpless transfer characteristic is critical in continuous process industries where even a 100 ms communication gap can trigger protective shutdowns.

The CI858K01 supports both PROFIBUS DP Class 1 Master and Slave operating modes, selectable via ABB Control Builder M (CBM) software. In Class 1 Master mode — the standard deployment — the module manages cyclic I/O data exchange with up to 125 DP slaves per segment across baud rates from 9.6 kbps to 12 Mbps with automatic baud rate detection. The integrated software-selectable bus termination eliminates the need for external termination resistors at the module end of the cable, reducing wiring complexity in panel installations.

Procurement engineers replacing end-of-life communication modules or expanding existing AC800M-based control systems will find the CI858K01 to be the OEM-exact solution. No protocol gateway, no third-party adapter, no firmware patching — the module is auto-detected upon insertion into the AC800M hardware tree and configured natively within Control Builder M. siemensplc.com supplies genuine ABB CI858K01 / 3BSE018135R1 modules from verified industrial channels, with full serial number traceability and 12-month warranty coverage.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CI858K01’s internal architecture separates the PROFIBUS DP protocol stack from the AC800M S100 bus interface via a dual-port RAM (DPRAM) buffer. The PROFIBUS DP ASIC — operating as an autonomous co-processor — handles all time-critical bus functions: token passing, slave address resolution, cyclic data polling, and acyclic service management. The DPRAM acts as the handshake boundary between the PROFIBUS DP ASIC and the S100 bus interface logic, decoupling the deterministic PROFIBUS timing domain from the AC800M’s internal bus arbitration cycles. This prevents jitter in the PROFIBUS DP scan cycle caused by S100 bus contention during high-load controller states.

EMC Design: The module’s PCB layout implements a split ground plane strategy, isolating the PROFIBUS DP physical layer (RS-485 transceiver circuitry) from the digital logic ground. The DB9 connector shell is bonded to the chassis ground via a low-impedance path, providing a defined return route for common-mode interference induced on the PROFIBUS cable shield. This design conforms to IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge) immunity requirements — relevant in industrial environments where variable-frequency drives and high-current switching equipment generate significant conducted and radiated interference.

Redundancy Arbitration Logic: In redundant AC800M configurations, the primary and standby CI858K01 modules exchange heartbeat signals via the AC800M redundancy link. The standby module maintains a shadow copy of the PROFIBUS DP slave configuration (GSD parameters, address table, cyclic data layout) in its local memory. Upon failover, the standby module transitions to active master state using this pre-loaded configuration, bypassing the GSD re-initialization sequence that would otherwise cause a multi-second bus re-configuration delay. The result is a failover time measured in milliseconds rather than seconds — a distinction that determines whether downstream process controllers see a transient or a sustained fault.

Diagnostic Architecture: The CI858K01 implements PROFIBUS DP extended diagnostics (DPV1 acyclic services) in addition to standard cyclic diagnostics. Slave-level fault data — including device-specific diagnostic bytes from field instruments — is forwarded to the AC800M event log and made accessible via Control Builder M’s online diagnostic view. This provides maintenance engineers with root-cause data at the device level without requiring a separate PROFIBUS diagnostic tool on the segment.

System Integration Benefits

• Zero-Gateway Integration: The CI858K01 is natively recognized by Control Builder M upon hardware insertion. No intermediate protocol converter or OPC server is required to expose PROFIBUS DP field data to the AC800M application program, eliminating an entire layer of potential failure points.
• Deterministic Scan Cycle: PROFIBUS DP cyclic data exchange operates on a fixed bus cycle time, configurable in CBM. This determinism is essential for closed-loop control applications — flow, pressure, and temperature loops — where variable communication latency would introduce phase lag into the PID calculation.
• Bumpless Redundancy Failover: The shadow-configuration mechanism described above ensures that redundant controller switchover does not trigger a PROFIBUS DP bus re-initialization, preserving continuous field device communication during planned and unplanned controller transitions.
• Scalable Network Capacity: Multiple CI858K01 modules can be installed per AC800M controller (subject to backplane slot availability and power budget), allowing engineers to partition large field device populations across independent PROFIBUS DP segments for improved fault isolation and reduced bus loading.
• Broad Device Interoperability: Any PROFIBUS DP-certified field device — transmitters, valve positioners, motor starters, drives, remote I/O — integrates via standard GSD files. The CI858K01 does not impose proprietary device restrictions, preserving vendor flexibility in field device selection.
• DPV1 Acyclic Services: Support for PROFIBUS DPV1 acyclic read/write services enables online parameter access to intelligent field devices (e.g., HART-over-PROFIBUS transmitters, ABB ACS drives) without interrupting cyclic process data exchange.
• Integrated Fault Diagnostics: Module-level hardware faults (power failure, internal communication error) and segment-level faults (slave offline, bus short-circuit) are reported to the AC800M system log with timestamp and fault code, supporting structured maintenance workflows and MTTR reduction.
• Long-Segment Cable Support: At 93.75 kbps, the CI858K01 supports cable runs up to 1,200 m using standard shielded twisted-pair (STP) cable per PROFIBUS DP wiring guidelines. This range accommodates geographically distributed field device installations without requiring repeaters in most plant layouts.

Quality Assurance & Global Logistics

Every CI858K01 / 3BSE018135R1 unit supplied by siemensplc.com is sourced from ABB’s authorized industrial distribution network or verified decommissioned plant inventories with documented maintenance histories. Prior to dispatch, each module undergoes a structured pre-shipment inspection protocol: visual examination of PCB, connector pins, and label integrity; part number and serial number verification against ABB’s 3BSE018135R1 documentation; and a functional power-on check confirming module initialization and S100 bus communication status.

Units are packaged in anti-static ESD bags with foam cushioning, enclosed in double-wall corrugated cartons rated for international air freight handling. All shipments originate from our warehouse in Xiamen, China — a major logistics hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard express transit times: 3–5 business days to Europe and North America; 2–4 business days to Southeast Asia and the Middle East. Economy freight options (sea/air consolidation) are available for large-quantity orders.

Export documentation — commercial invoice, packing list, certificate of origin, and HS code classification — is prepared in compliance with destination country import requirements. For projects requiring ATEX or SIL documentation, original ABB factory certificates are provided where available in our inventory records.

Warranty: All units carry a 12-month operational warranty from the dispatch date, covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit.
