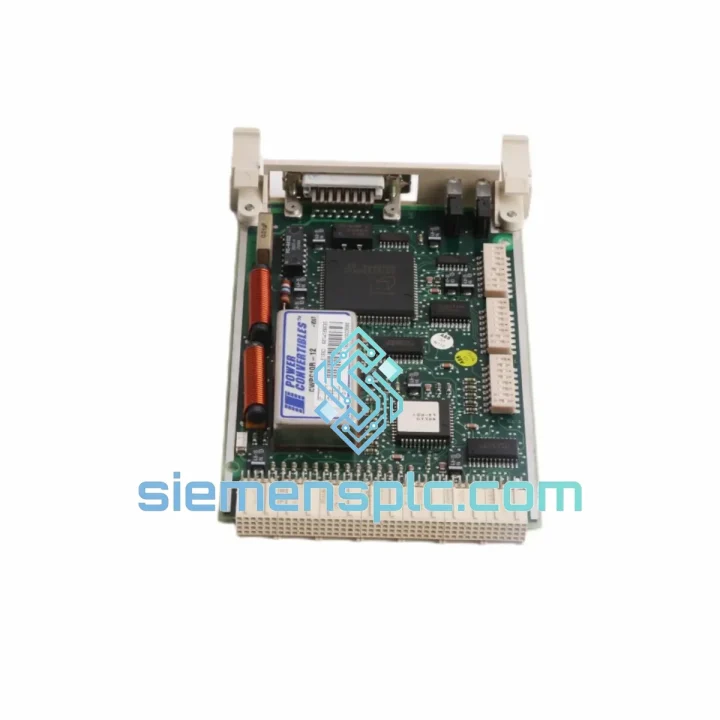

ABB CS513 3BSE000435R1 Communications Module – AC 800M Series

ABB CS513 3BSE000435R1 — MasterBus 300E Optical Fieldbus Interface for AC 800M Controllers

The ABB CS513 (catalog reference 3BSE000435R1) is a dedicated MasterBus 300E communications module engineered for integration into the AC 800M distributed control system platform. Its primary function within a control loop is to serve as the optical fieldbus gateway between the AC 800M controller backplane and the MasterBus 300E network — a fiber-optic, token-passing fieldbus that ABB developed to achieve deterministic, low-jitter data exchange across multi-node process control architectures.

In a typical AC 800M installation, the CS513 occupies a dedicated slot in the PM8xx processor unit’s local bus. It handles all MasterBus 300E protocol framing, token arbitration, and optical transceiver management autonomously, offloading these tasks entirely from the PM8xx CPU. This architectural separation ensures that fieldbus communication latency does not compete with the controller’s scan cycle, preserving cycle-time determinism even under high network load. The module supports full-duplex optical transmission, with the fiber interface providing galvanic isolation between the controller and the fieldbus segment — a critical design requirement in environments with high common-mode voltage differentials or significant ground potential differences between cabinets.

The CS513 is compatible with ABB’s Control Builder M engineering environment and is recognized automatically during hardware configuration. Firmware updates are managed through the controller’s standard software tools without requiring physical removal of the module. For process plants operating continuous production cycles, this characteristic directly reduces planned maintenance windows.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Optical Isolation Architecture: The CS513 implements full optical isolation at the physical layer. The ST-connector fiber interface eliminates any conductive path between the AC 800M backplane ground and the MasterBus 300E network. In large process plants — particularly in oil & gas and power generation facilities — ground loops between geographically separated control cabinets can introduce common-mode voltages exceeding 50 V. The CS513’s optical interface renders these differentials irrelevant to signal integrity, preventing data corruption and protecting the controller’s internal logic from transient overvoltage events.

Token-Ring Arbitration and Determinism: MasterBus 300E uses a token-passing protocol on a physical ring topology. The CS513 manages token arbitration locally, maintaining a fixed, bounded worst-case latency for each node’s transmission window. Unlike Ethernet-based fieldbuses that rely on CSMA/CD or probabilistic scheduling, the token-ring mechanism guarantees that every node on the ring receives its transmission slot within a calculable time frame — a property essential for closed-loop process control where scan-cycle overruns translate directly into process upsets.

Redundant Ring Support: The CS513 supports dual-ring redundancy. In a redundant configuration, two independent fiber paths connect each node. If a fiber break or node failure interrupts one ring segment, the CS513 detects the fault within milliseconds and reconfigures the network to operate on the surviving path. This self-healing behavior occurs without controller intervention and without interrupting ongoing data exchange on the healthy segment.

EMC Design: The module’s PCB layout follows ABB’s standard EMC design rules for industrial control hardware: ground planes are segmented to prevent high-frequency return currents from coupling into signal traces; the optical transceiver circuitry is shielded within the module housing; and the backplane connector incorporates filtered power pins to suppress conducted interference from the 5 VDC supply rail. These measures allow the CS513 to operate within IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-5 (surge) test levels without performance degradation.

Firmware and Diagnostics: The CS513 exposes a set of diagnostic counters accessible through Control Builder M: frame error rate, token loss events, optical signal level (where supported by the transceiver), and node reachability status. These counters are updated each controller scan cycle and can be mapped to process variables for integration into the plant’s alarm management system, enabling predictive maintenance based on degrading fiber link quality before a hard fault occurs.

System Integration Benefits

• Deterministic scan-cycle isolation: Fieldbus protocol processing is handled entirely within the CS513, preventing MasterBus 300E communication overhead from extending the PM8xx CPU scan cycle under any network load condition.
• Zero-configuration hardware recognition: Control Builder M automatically identifies the CS513 during hardware scan, populating the I/O tree without manual address assignment — reducing commissioning time on multi-node installations.
• Redundant fiber ring failover <10 ms: Dual-ring reconfiguration occurs within the module’s own logic, transparent to the controller application layer, maintaining process data continuity during single-point fiber failures.
• Galvanic isolation eliminates ground-loop interference: Full optical isolation at the fieldbus interface removes the most common source of intermittent communication faults in large industrial installations with distributed grounding systems.
• Diagnostic transparency to the process layer: Link quality metrics and error counters are exposed as readable process variables, enabling alarm-based maintenance triggers without additional diagnostic hardware.
• Hot-swap capability: The AC 800M platform supports module replacement under power in non-redundant configurations, and with zero process impact in redundant controller setups — minimizing planned outage duration.
• Firmware management via software: No physical jumpers or DIP switches are required for configuration. All parameters are managed through Control Builder M, supporting version-controlled configuration management aligned with IEC 61511 functional safety documentation requirements.
• Long-distance node separation: Multimode fiber segments up to 500 m per span allow MasterBus 300E nodes to be distributed across physically separated buildings or process units without signal repeaters, reducing infrastructure cost in large-footprint plants.
• Backward compatibility within AC 800M ecosystem: The CS513 operates alongside legacy MasterBus 300 nodes where mixed-generation networks exist, protecting prior capital investment during phased system upgrades.

Quality Assurance & Global Logistics

Every ABB CS513 3BSE000435R1 unit dispatched from our Xiamen, China facility is sourced through traceable supply channels and subjected to a structured pre-shipment inspection protocol. Physical inspection covers PCB condition, optical connector cleanliness and mechanical integrity, label authenticity cross-referenced against ABB’s known part marking standards, and housing condition. Where test equipment is available, modules undergo a powered initialization check to confirm fault-free startup behavior prior to packaging.

Units are packed in anti-static ESD-safe bags, placed in foam-lined cartons rated for international air freight handling, and accompanied by a quality inspection record with a traceable lot reference. A 12-month warranty from the date of shipment covers all units against manufacturing defects and functional failure under normal operating conditions. Defective units are replaced or credited without additional freight charges to the buyer.

Logistics from Xiamen covers all major international destinations. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every shipment. DHL Express, FedEx International Priority, and UPS are the primary carriers for time-sensitive orders. Sea freight consolidation is available for bulk procurement. HS code classification and ECCN determination are provided on request to support the buyer’s import compliance process. In-stock units typically ship within 1–3 business days of order confirmation.
