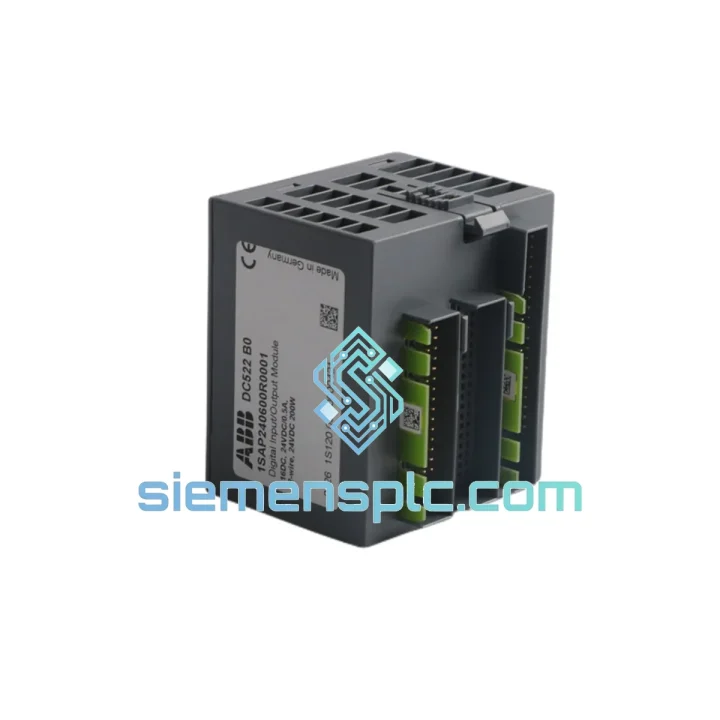

ABB DC522 1SAP240600R0001 PLC I/O Module

ABB DC522 1SAP240600R0001 — Cut the Downtime, Not the Corners

Three AM. Your AC500 rack throws a red fault LED and the line stops. Shift supervisor is on the phone. Maintenance is staring at a dead DC522 with no spare on the shelf. You have been here before — and you know the next call you make determines whether production resumes in hours or days.

The ABB DC522 (order code 1SAP240600R0001) is a 32-channel digital I/O module purpose-built for the AC500 platform. It handles 16 inputs and 16 transistor-sourcing outputs at 24 V DC, and it sits at the nerve center of thousands of production lines worldwide. When it goes down, nothing substitutes for the exact part. No cross-reference. No workaround. You need a DC522, tested, boxed, and moving toward your site today.

We carry verified stock in Xiamen and dispatch via DHL Express and FedEx International Priority. Confirmed orders placed before 14:00 CST ship same day. Most destinations in Southeast Asia receive within 2–3 days; Europe and North America within 4–5 days. Every unit ships with a full inspection record and original ABB labeling intact.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on AC500 systems produce a short list of recurring failure modes for the DC522. Work through these before you condemn the module — and follow the replacement sequence precisely to avoid introducing a second fault.

Red SF LED (System Fault, solid): The most common cause is an inductive field load — solenoid valve, relay coil, motor contactor — wired to a DO channel without a suppression diode or RC snubber. The output transistor absorbs the back-EMF spike and fails open. Before fitting a replacement DC522, measure the field wiring for inductive loads and add suppression at the load terminals. A replacement module wired into the same uncorrected circuit will fail within hours.

Flashing SF LED (intermittent output fault): Usually a marginal 24 V DC field supply. The DC522 requires a minimum of 20.4 V DC at the TU515/TU516 field supply terminals under full load. A sagging PSU — particularly one shared with contactors or drives — drops below threshold during switching transients and causes false output trips. Measure supply voltage under load before ordering a replacement module.

CF LED (Communication Fault with CPU): The DC522 communicates over the AC500 internal I/O bus via the terminal unit connector. Reseating the module resolves roughly 40% of CF faults in the field — the gold-plated bus pins oxidize in humid or chemically aggressive environments. Remove the module, clean the bus connector on both the module and the TU515/TU516 with 99% isopropyl alcohol and a lint-free swab, then reseat firmly until the connector clicks. If CF persists, swap the terminal unit before replacing the module.

Step-by-step replacement procedure:

1. De-energize the 24 V DC field supply to the terminal unit. The AC500 supports module hot-swap at the logic level, but field circuits must be de-energized to protect personnel and prevent output glitches during insertion.
2. Slide the DC522 vertically off the TU515/TU516. Do not lever sideways — the bus connector is fragile and a bent pin on the terminal unit will damage the replacement module immediately.
3. Inspect the terminal unit bus connector for corrosion, bent pins, or debris. A damaged TU is the single most common cause of repeat module failures. Replace the TU if in doubt — it is far cheaper than a second DC522.
4. Seat the replacement module straight down onto the terminal unit until you feel and hear the bus connector engage. A half-seated module produces intermittent CF faults that are difficult to diagnose.
5. No DIP switch or address configuration is required. The DC522 self-addresses on the AC500 I/O bus. The CPU (PM5xx or PM5xx-ETH) reads the module type automatically at power-up and maps it to the existing project configuration.
6. Verify firmware compatibility: AC500 V2 CPUs require DC522 firmware ≥ V1.3. V3 CPUs accept all firmware revisions. The firmware version is printed on the module side label. If the version is below the minimum, update via ABB Automation Builder before commissioning.
7. Check input filter time settings in your Automation Builder project. The factory default is 3.2 ms. High-speed proximity sensors or encoder-derived signals may require 0.1 ms. Mismatched filter times cause missed input pulses that look like intermittent sensor faults.
8. Restore field supply voltage and verify all 32 channels in the diagnostic view. Force each output channel individually and confirm field-side response before returning the machine to automatic mode.

Firmware note for V3 systems: On PM5xx-ETH CPUs running AC500 V3 firmware, the DC522 appears in the hardware catalog as a legacy module. It is fully supported but must be added manually to the hardware configuration if the project was originally built on a V3 template. Do not attempt to substitute a DC532 — the channel count and addressing differ.

Reliability in Harsh Conditions

The DC522 was engineered for environments that destroy consumer-grade electronics in weeks. ABB’s design brief for the AC500 I/O range was explicit: the modules must operate without nuisance faults in cement plants, offshore platforms, food processing facilities running daily wash-down cycles, and outdoor switchgear cabinets exposed to desert heat and coastal humidity simultaneously.

The PCB carries a conformal coating that seals the board against condensation, oil mist, and airborne particulates — the kind of contamination that corrodes unprotected boards within a single production season. The 500 V AC galvanic isolation barrier between field wiring and the logic bus absorbs the ground loops, common-mode noise, and transient spikes that are routine in heavy industrial power environments. A shorted field device trips only the affected output channel; the auto-reset circuit restores the channel without operator intervention and without propagating the fault to the CPU or adjacent modules.

Mechanical robustness meets IEC 60068-2-6 for sinusoidal vibration (5–150 Hz, 1 g) and IEC 60068-2-27 for shock (15 g, 11 ms half-sine pulse). These figures reflect real-world installation on machine frames that vibrate continuously during operation — not laboratory conditions. The DIN rail mounting via the TU515/TU516 terminal unit provides additional mechanical damping and eliminates direct stress on the module housing.

ATEX II 3 G and IECEx certification permits installation in Zone 2 explosive gas atmospheres. This is a hard requirement in petrochemical, gas compression, and solvent-handling facilities where non-certified modules cannot legally be installed regardless of technical performance. The DC522 meets the certification without requiring an additional enclosure or purge system in Zone 2 locations.

Global Express Logistics

Our dispatch warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to international air freight lanes through Xiamen Gaoqi International Airport and sea freight through Xiamen Port. The logistics chain for an urgent DC522 order works as follows:

Order confirmed before 14:00 CST: Stock is pulled from the shelf, visually inspected against the order code, and packed in a static-shielding ESD bag inside a rigid corrugated carton with closed-cell foam inserts. Commercial invoice, packing list, and HS code declaration (8537.10) are prepared simultaneously to eliminate customs clearance delays at destination.

Same day — carrier handover: Shipment is tendered to DHL Express or FedEx International Priority depending on destination routing and your preference. A tracking number is issued to you within two hours of the carrier pickup scan.

Transit times by region: Southeast Asia 2–3 business days; Europe 3–4 business days; North America 4–5 business days; Middle East and South Asia 3–4 business days; Australia and New Zealand 4–5 business days. These are carrier-quoted transit times under normal customs conditions — not estimates padded with buffer days.

We support DAP, DDP (Delivered Duty Paid), and EXW Incoterms. DDP is strongly recommended for customers who want zero customs involvement on arrival — we prepay import duties and taxes on your behalf and the shipment clears without requiring your customs broker. For project orders involving multiple line items, sea freight LCL consolidation is available with 10–18 day transit to major ports. We prepare all required export documentation including Certificate of Origin, Form E (ASEAN FTA), and EUR.1 (EU preferential origin) as required by your import authority.
