ABB DC551-CS31 1SAP220500R00011 Digital I/O Module

ABB DC551-CS31 1SAP220500R00011 — Stop the Clock on Your Downtime

Your line is down. The CS31 bus is silent. Every minute without a functioning digital I/O node is burning money — rejected batches, idle labor, missed delivery windows, and a plant manager breathing down your neck. You don’t need a lecture on specifications right now. You need the part, fast, and you need to know it will work first time.

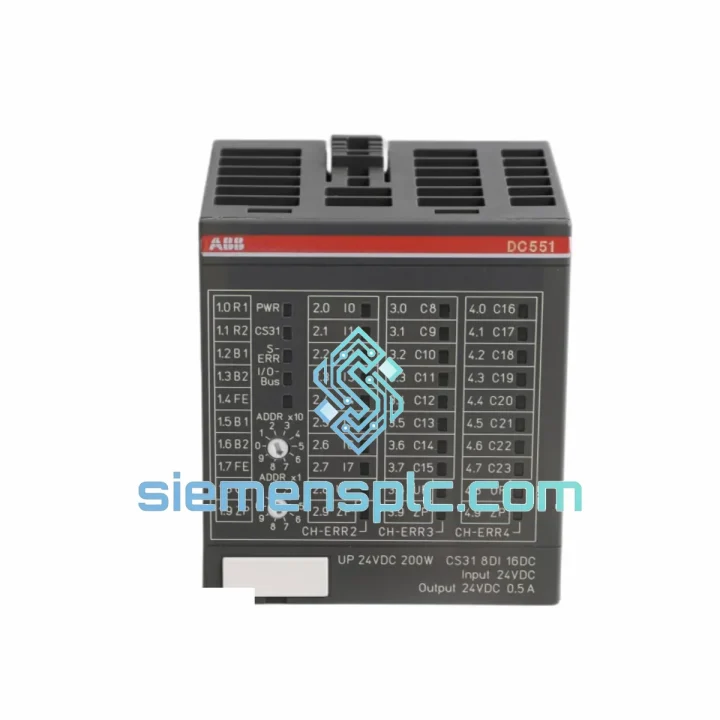

The ABB DC551-CS31 (part number 1SAP220500R00011) is a CS31-series digital I/O bus module built for ABB AC500 distributed control systems. It handles the handshake between your controller and the physical world — digital inputs from sensors, digital outputs to actuators — across a robust CS31 fieldbus backbone. When this module fails, your entire I/O node goes dark. There is no workaround. You need a direct replacement, and you need it now.

We stock the DC551-CS31 at our Xiamen warehouse. Same-day dispatch is available for orders confirmed before 15:00 CST. DHL Express and FedEx International Priority are our default carriers for urgent shipments. Most destinations in Southeast Asia, the Middle East, and Europe receive delivery within 3–5 business days from dispatch.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field calls, the DC551-CS31 fails in predictable ways. Here is what to check before you pull the module, and what to watch when you install the replacement.

Common Failure Signatures:

• All I/O channels dead, bus LED off: Internal power rail failure or blown input protection. The module is not recoverable — replace immediately.
• Intermittent channel faults (ERR LED flashing): Often caused by loose CS31 bus termination or a degraded cable shield. Check the bus terminator resistor at both ends of the CS31 segment before condemning the module.
• Module recognized by CPU but outputs not switching: Verify 24 V DC sensor supply at the module’s L+ terminal. A failed external fuse is the most common culprit — not the module itself.
• CS31 address conflict after replacement: The DC551-CS31 uses rotary DIP switches (SW1/SW2) to set its node address. Confirm the address matches the original module’s setting before powering up. Mismatched addresses cause the CPU to report a configuration fault and refuse to go online.
• Firmware mismatch warning in Automation Builder: If your AC500 CPU firmware is below version 2.x, the replacement module may require a firmware downgrade or a CPU update. Check the compatibility matrix in ABB document 3ADR010066 before ordering.

Step-by-Step Replacement Procedure:

1. Place the AC500 CPU in STOP mode. Confirm all outputs are de-energized before touching the CS31 segment.
2. Photograph the existing module’s DIP switch positions (SW1 and SW2) and wiring terminal layout before disconnecting anything.
3. Disconnect the CS31 bus cable from the faulty module. Note which terminal is IN and which is OUT if the module is mid-chain.
4. Remove the module from the DIN rail. Inspect the rail clip for damage — a cracked clip causes intermittent contact faults on the replacement.
5. Set the replacement DC551-CS31 DIP switches to match the photographed address. Double-check: SW1 sets the tens digit, SW2 sets the units digit of the node address (0–31 valid range).
6. Reconnect the CS31 bus cable. Ensure the bus terminator is in place if this module is at the end of the segment.
7. Power up. Observe the module’s RUN LED — it should go solid green within 3 seconds of the CPU entering RUN mode. A flashing RUN LED indicates the CPU has not yet established communication; check the address setting.
8. Force-test each I/O channel from Automation Builder’s online diagnostic view before handing the line back to operations.

Reliability in Harsh Conditions

The DC551-CS31 was not designed for a climate-controlled server room. ABB engineered this module for the realities of industrial environments — and those realities are unforgiving.

Vibration is the silent killer of I/O modules. Conveyor drives, compressors, and press machines generate continuous mechanical stress that loosens terminal screws and fatigues PCB solder joints over time. The DC551-CS31’s conformal-coated PCB and reinforced DIN rail locking mechanism are specifically designed to maintain electrical integrity under sustained vibration loads up to IEC 60068-2-6 test levels.

Thermal cycling is equally destructive. A module that runs at 55°C during peak production and cools to 10°C overnight undergoes thousands of thermal expansion cycles over its service life. ABB’s component selection for the DC551-CS31 accounts for this — capacitors, connectors, and bus transceivers are all rated for the full -25°C to +60°C operating envelope without derating.

Humidity and condensation are the enemies of unprotected electronics. The IP20 rating of the DC551-CS31 assumes installation inside a sealed control cabinet. If your cabinet has a compromised door gasket or inadequate anti-condensation heating, the module’s conformal coating provides a secondary line of defense against moisture ingress on the PCB surface. It is not a substitute for proper cabinet maintenance, but it buys you time.

EMC immunity is non-negotiable in environments with variable-frequency drives, welding equipment, or large motor starters. The DC551-CS31 meets EN 61000-6-2 industrial immunity standards, including 2 kV burst immunity on the CS31 bus lines. Proper cable shielding and grounding at the cabinet entry point remain the engineer’s responsibility — the module handles the rest.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — one of China’s primary export ports with direct access to DHL, FedEx, and UPS international gateways. This is not a drop-ship operation. Stock is physically on our shelves, inspected, and ready to pack.

Standard urgent shipment flow:

• Order confirmed before 15:00 CST: Same-day dispatch. Tracking number issued by 18:00 CST.
• DHL Express Worldwide: Southeast Asia 2–3 days, Middle East 3–4 days, Europe 3–5 days, Americas 4–6 days.
• FedEx International Priority: Available as an alternative carrier for destinations where FedEx has a service advantage.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day. HS code 8537.10 applied for customs clearance. DDP (Delivered Duty Paid) terms available on request for select destinations.
• Packaging: Anti-static bag, foam-lined carton, moisture barrier. The module arrives in the same condition it left our warehouse.

For plant shutdowns or scheduled maintenance windows where timing is critical, contact us via WhatsApp for real-time coordination. We can confirm stock, generate a proforma invoice, and initiate packing within the hour.
