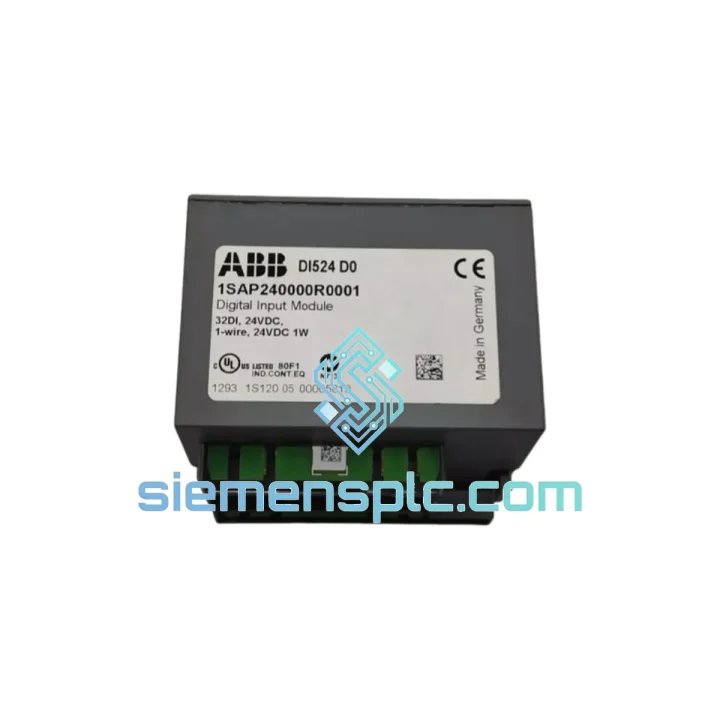

ABB DI524 1SAP240000R0001 Digital Input Module – AC500 Series

ABB DI524 1SAP240000R0001 – 32-Channel 24 VDC Digital Input Module for AC500 PLC Systems

The ABB DI524 (order code 1SAP240000R0001) is a high-density digital input module engineered for the AC500 programmable logic controller platform. Occupying a single slot on the S500 I/O bus, it delivers 32 independent 24 V DC input channels within a compact 67.5 × 100 × 71 mm housing. In process-critical control architectures where deterministic signal acquisition and panel space efficiency are non-negotiable, the DI524 functions as the primary discrete-state interface between field instrumentation and the AC500 CPU’s execution cycle.

Each input channel is individually optocoupler-isolated, presenting a nominal input impedance that draws approximately 4 mA at 24 V DC. This current level is deliberately chosen to ensure reliable activation of IEC 61131-2 Type 1 and Type 3 sensors while remaining below the threshold that would cause excessive self-heating in dense wiring harnesses. The module’s internal filter network applies a configurable debounce time — selectable per channel group in Automation Builder — suppressing contact bounce from mechanical limit switches without introducing latency that would compromise high-speed machine cycle detection.

Signal state is transferred to the AC500 CPU via the S500 backplane bus using a synchronous parallel protocol. The bus cycle time is tightly coupled to the CPU scan cycle, ensuring that all 32 channel states are captured atomically within a single scan — a property that eliminates the inter-channel skew artifacts common in serialized remote I/O architectures. For applications requiring sub-millisecond event timestamping, the DI524 supports hardware interrupt generation on configurable rising or falling edges, allowing the CPU to execute interrupt service routines with a response latency below 1 ms from signal transition to ISR entry.

The module’s EMC design follows IEC 61000-4 series test criteria. The optocoupler barrier provides galvanic isolation rated at 500 V AC between the field-side 24 V DC commons and the backplane logic supply, attenuating common-mode noise injected by variable-frequency drives, solenoid coil switching, and ground-loop differentials in large panel installations. Transient suppression diodes on each input line clamp inductive kickback from inductive field devices to within the optocoupler’s absolute maximum input voltage rating, preventing latch-up events that would require a module power cycle to clear.

Mechanical integration follows the AC500 S500 standard: the DI524 snaps onto a TB521 or TB522 terminal base, which provides the 40-pin field wiring interface and the backplane bus connector. The terminal base remains wired in the panel during module replacement, enabling hot-swap maintenance without disconnecting field cables — a significant operational advantage in continuous-process plants where scheduled downtime windows are measured in minutes. The module’s front face carries a 32-LED status array, one per channel, providing local visual diagnostics without requiring a laptop or HMI connection.

Operating temperature range spans -25 °C to +60 °C, with storage rated to -40 °C. This thermal envelope accommodates outdoor enclosures in northern European climates, cold-storage facility panels, and high-ambient machine rooms without supplemental heating or forced-air cooling. The IP20 protection rating is appropriate for standard industrial control cabinets; for wash-down or outdoor-exposed installations, the enclosure itself provides the required ingress protection.

The DI524 carries CE marking under the EU Low Voltage and EMC Directives, UL 508 and cUL industrial control equipment listing, and ATEX II 3 G certification for Zone 2 hazardous-area use with gas groups IIC at temperature class T4. RoHS compliance is documented in ABB’s material declaration database. All certifications are maintained under ABB’s ISO 9001-certified quality management system at the manufacturing facility in Ladenburg, Germany.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DI524’s internal architecture separates the field-side input conditioning circuit from the backplane logic domain through a two-stage signal path. In the first stage, each of the 32 input lines passes through a series resistor network that limits inrush current and provides a defined input impedance. A Zener clamp referenced to the field-side 24 V DC common suppresses transient overvoltages — including those generated by inductive load switching on shared field power rails — before the signal reaches the optocoupler anode.

The optocoupler itself is a high-speed phototransistor type with a current transfer ratio selected to guarantee a defined logic-high threshold at the collector output across the full operating temperature range. Temperature-induced CTR degradation — a known failure mode in optocouplers operated near their maximum junction temperature — is mitigated by operating the LED drive current at approximately 60% of the rated maximum, extending the component’s service life well beyond the module’s rated 20-year design life.

On the backplane side, the 32 phototransistor outputs feed a parallel input register clocked by the S500 bus controller ASIC. The ASIC samples all 32 channels simultaneously on each bus cycle, writing the captured state to a dual-port RAM buffer accessible by both the bus controller and the CPU’s I/O image table update mechanism. This architecture guarantees that the CPU always reads a coherent 32-bit snapshot — no channel can be in a transitional state relative to its neighbors within the same scan cycle read.

EMC hardening extends to the PCB layout: the field-side and backplane-side circuit planes are separated by a physical slot in the PCB substrate, enforcing the creepage and clearance distances required by IEC 60664-1 for 500 V AC isolation. Decoupling capacitors on the backplane supply rails are placed within 2 mm of each logic IC’s supply pin, suppressing high-frequency switching noise generated by the bus controller ASIC from coupling into the optocoupler output lines.

System Integration Benefits

• Atomic 32-channel scan capture – All input states are latched simultaneously by the S500 bus ASIC, eliminating inter-channel time skew and ensuring logically consistent data in every CPU scan cycle.
• Sub-millisecond hardware interrupt response – Edge-triggered interrupt generation allows the AC500 CPU to respond to critical field events — E-stop activation, encoder index pulses, flow-switch trips — within a deterministic latency window independent of the programmed scan cycle time.
• Hot-swap terminal base architecture – Field wiring remains connected to the TB521/TB522 terminal base during module replacement, reducing mean time to repair and eliminating re-wiring errors in maintenance scenarios.
• Configurable per-channel debounce filtering – Automation Builder allows independent filter time constants per channel group, enabling the same module to simultaneously handle high-speed photoelectric sensors (short filter) and mechanical limit switches (long filter) without hardware modification.
• Transparent diagnostic reporting – The module reports channel-level wire-break detection (where field sensor type supports it) and internal supply undervoltage conditions to the AC500 CPU’s diagnostic buffer, surfacing faults in the HMI alarm system without requiring dedicated diagnostic wiring.
• Scalable I/O expansion – Up to 10 S500 I/O modules per CPU station, expandable via FBP field bus couplers (PROFIBUS, PROFINET, EtherNet/IP) to distributed I/O islands, allowing the DI524 to serve both local and remote panel roles within the same project.
• Multi-generation CPU compatibility – The DI524 operates without firmware modification on AC500 V1, V2, and V3 CPUs, protecting the capital investment in field wiring and panel engineering across control system upgrade cycles.
• IEC 61131-3 native addressing – Channels map directly to %IX byte.bit addresses in Automation Builder, compatible with all five IEC 61131-3 programming languages (LD, FBD, ST, IL, SFC) and ABB’s library of pre-certified function blocks.

Quality Assurance & Global Logistics

Every ABB DI524 unit dispatched from our Xiamen, China facility is sourced through verified supply channels and subjected to a structured pre-shipment verification protocol. Units are inspected against ABB’s OEM packaging specifications — including holographic label authentication, hardware revision marking, and date-code traceability — before acceptance into stock. A functional power-on test with an AC500 CPU confirms correct bus enumeration and channel-state reporting prior to packaging for shipment.

Export documentation is prepared in compliance with Chinese customs regulations and the destination country’s import requirements, including commercial invoice, packing list, and certificate of origin. HS code 8537.10 applies to this product category for most jurisdictions. Air freight via DHL Express, FedEx International Priority, or UPS Worldwide Express delivers to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East within 3–7 business days from Xiamen Gaoqi International Airport. Sea freight consolidation is available for bulk orders exceeding 50 units. All shipments are fully insured against transit loss and damage. A 12-month warranty covers manufacturing defects; DOA units are replaced or credited within 5 business days of confirmed fault diagnosis.
