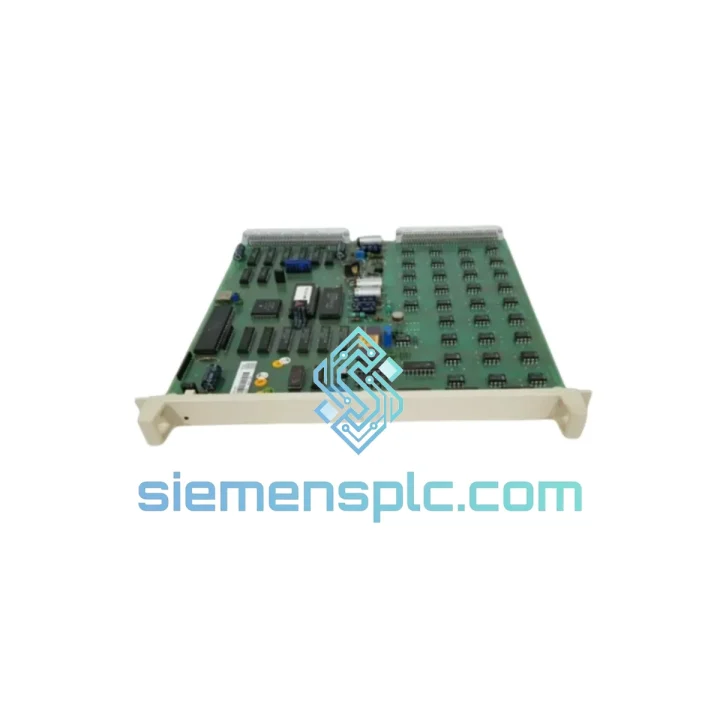

ABB DSAI133 57120001-PS Analog Input Module – DSAI Series

ABB DSAI133 57120001-PS: 32-Channel Analog Input Module for High-Density DCS Signal Acquisition

The ABB DSAI133 (order code 57120001-PS) is a 32-channel analog input board engineered for deployment within ABB’s Advant and Symphony Plus distributed control system architectures. In large-scale process plants — refineries, power stations, chemical complexes — the analog input tier is the sensory layer of the entire control loop. Every 4–20 mA transmitter signal, every thermocouple millivolt output, every pressure transducer reading must be digitized with sufficient resolution and temporal consistency to support closed-loop PID execution at the controller level. The DSAI133 addresses this requirement by consolidating 32 independent analog input channels onto a single board, reducing backplane slot consumption while maintaining the per-channel signal fidelity that ABB’s DCS platforms require for deterministic process control.

Unlike generic I/O boards, the DSAI133 is designed as a native component of ABB’s DSAI (Distributed System Analog Input) series — a hardware family that has accumulated decades of field hours across oil & gas upstream and downstream, pulp and paper, water treatment, and power generation. Its physical architecture reflects the engineering constraints of continuous-process environments: stable analog front-end circuitry, channel-to-channel isolation to prevent ground loop interference, and a backplane interface optimized for ABB’s proprietary communication protocol stack. The result is a module that integrates without signal conditioning adapters, without firmware workarounds, and without the compatibility uncertainty that accompanies third-party I/O substitutions.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DSAI133’s analog front-end is structured around a multiplexed sampling architecture. Each of the 32 input channels feeds into a shared analog-to-digital conversion pipeline via a solid-state multiplexer array. The multiplexer sequencing is controlled by the board’s local microcontroller, which arbitrates channel scan order and presents digitized values to the backplane bus in a format directly consumable by the ABB Advant controller’s process object database. This architecture eliminates the per-channel ADC cost while maintaining scan rates adequate for the process time constants typical in thermal, pressure, and flow measurement loops.

Optical isolation is implemented at the channel-to-board boundary. Each input group passes through an opto-coupler stage before reaching the multiplexer, breaking the galvanic path between field wiring and the board’s internal logic ground. This is not a cosmetic feature — in process plants where field instruments share common cable trays with power conductors, ground potential differences of several volts are routine. Without isolation, these differentials inject common-mode noise directly into the ADC input, degrading effective resolution. The DSAI133’s isolation stage suppresses common-mode voltages up to the rated isolation barrier, preserving the 12-bit conversion accuracy under real-world field conditions.

EMC performance is addressed at the PCB layout level. Analog signal traces are routed on dedicated copper layers, separated from digital clock lines by ground plane interposers. Decoupling capacitors are placed at each power rail entry point on the board, attenuating high-frequency switching transients from the backplane supply before they reach the analog circuitry. The board’s metal faceplate provides a Faraday shield effect against radiated interference from adjacent modules in the same rack, a relevant consideration in cabinets where digital communication modules and analog I/O boards share the same enclosure.

The backplane interface logic implements a handshake protocol with the Advant controller’s I/O bus arbiter. The DSAI133 does not initiate bus transactions autonomously — it responds to controller-initiated read cycles, presenting pre-latched channel data from its internal scan buffer. This passive bus behavior prevents the module from introducing bus contention in multi-module rack configurations, a design discipline that becomes critical when 8 or more I/O boards share a single backplane segment.

System Integration Benefits

• Zero-adapter native integration: The DSAI133 connects directly to ABB Advant and Symphony Plus backplanes without signal conditioning intermediaries, eliminating the impedance mismatch and calibration drift risks associated with third-party interface boards.
• High-density I/O consolidation: 32 channels per slot reduces the number of occupied backplane positions by a factor of 4 compared to 8-channel alternatives, freeing rack space for redundant controller modules or communication processors.
• Deterministic scan latency: The board’s synchronous scan architecture ties channel update timing to the controller’s base execution cycle, ensuring that all 32 process values presented to the PID function blocks reflect the same sampling instant — a prerequisite for accurate cascade and ratio control loops.
• Optical isolation for ground loop immunity: Channel-level isolation prevents ground loop currents from corrupting analog readings, a persistent source of measurement error in plants with distributed earthing systems across multiple buildings or process units.
• Diagnostic transparency: The module reports channel-level fault status (open circuit, over-range, under-range) to the controller’s diagnostic database, enabling operators to identify failed field instruments without physical inspection of terminal blocks.
• Hot-swap compatible rack architecture: ABB’s Advant I/O rack design supports board extraction and insertion under power, allowing DSAI133 replacement during plant operation without requiring a controller shutdown or process interruption.
• Long-term spare parts availability: siemensplc.com maintains verified stock of DSAI133 modules to support plants operating on extended lifecycle plans, where migration to current-generation I/O platforms is deferred due to engineering cost or process risk constraints.
• Consistent calibration baseline: Factory-calibrated channel gain and offset values are stored in the module’s non-volatile memory, ensuring that a replacement DSAI133 restores measurement accuracy to OEM specification without field recalibration of individual channels.
• Reduced MTTR: Board-level replacement architecture — rather than component-level repair — allows maintenance technicians to restore full I/O functionality within the time required to physically swap the module and execute a controller I/O rescan, typically under 15 minutes.

Quality Assurance & Global Logistics

Every ABB DSAI133 unit dispatched from siemensplc.com is sourced as genuine ABB original hardware. Units are procured through verified industrial supply channels — authorized distributors, decommissioned plant inventories with documented provenance, and OEM surplus stock — and are not sourced from unverified grey-market intermediaries. Before dispatch, each board undergoes a structured pre-shipment inspection: visual examination of PCB surface, connector pin integrity, and component population against OEM reference photographs; functional power-on verification where test fixtures are available; and ESD-safe packaging in anti-static bags with moisture barrier sealing and rigid outer carton protection rated for international air freight handling.

Shipments originate from Xiamen, China — a major logistics hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express services. Transit times to major industrial centers in Southeast Asia, the Middle East, Europe, and North America typically range from 3 to 7 business days depending on destination customs clearance. Full export documentation is provided with every shipment: commercial invoice, packing list, certificate of origin, and — where required by the destination country — CITES or dual-use export declarations. For buyers in regulated industries requiring material traceability, test records and sourcing documentation are available upon request. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.
