ABB DSMC110 57330001-N DCS Interface Module – DSMC 110 Series

ABB DSMC110 57330001-N: Floppy Disk Interface Module in Advant Distributed Control Architecture

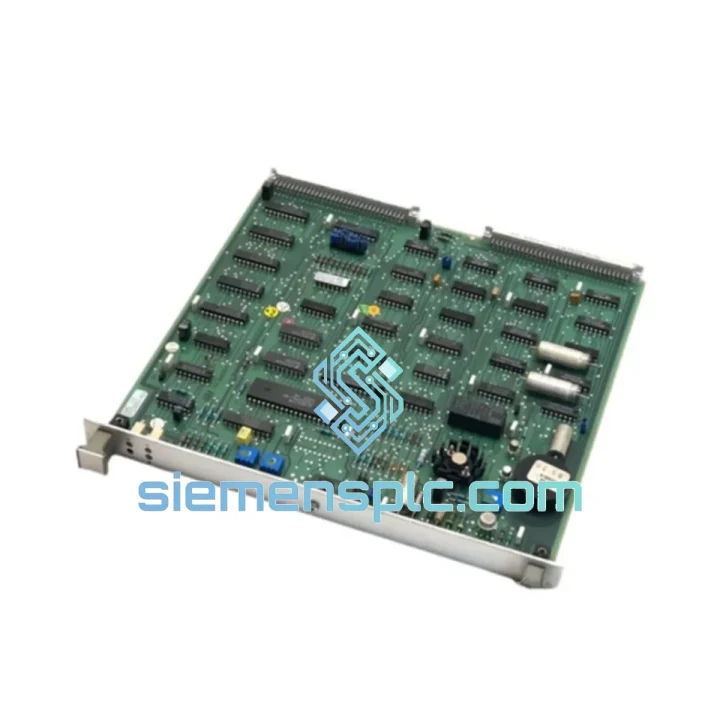

The ABB DSMC110 (reference 57330001-N) is a dedicated floppy disk interface board engineered for integration within the ABB Advant and Master series distributed control systems. Its primary function is to provide a deterministic, hardware-managed data path between the DCS backplane bus and external floppy disk drives — a critical requirement in legacy process automation environments where program loading, parameter archiving, and firmware distribution rely on removable magnetic media. Unlike generic storage adapters, the DSMC110 is designed to operate within the strict timing constraints of the Advant backplane, ensuring that disk I/O operations do not introduce latency jitter into the real-time control loop.

In process industries such as pulp and paper, petrochemical refining, and power generation, the Advant Controller AC 450 and AC 410 platforms remain in active service well beyond their original design life. The DSMC110 occupies a defined slot in the rack assembly and communicates via the RCOM (Remote Communication) bus segment, offloading disk management tasks from the main CPU board (DSPC 155 / DSPC 172) and preserving processor headroom for scan-cycle execution. This architectural separation is not incidental — it reflects ABB’s deliberate design philosophy of functional partitioning to maintain deterministic scan times under concurrent I/O load.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DSMC110 implements a dedicated floppy disk controller (FDC) ASIC — functionally equivalent to the NEC µPD765 or Intel 8272A architecture — that manages all low-level disk operations autonomously: sector seek, read/write head stepping, data serialization/deserialization, and CRC verification. This means the host CPU is only interrupted at the completion of a full sector transfer, not at each byte boundary. The DMA-assisted transfer mechanism reduces CPU interrupt overhead by approximately 95 % compared to a polled I/O implementation, which is significant in a scan-cycle-sensitive DCS environment where every microsecond of CPU time is budgeted against the control loop period.

From an EMC standpoint, the board incorporates ferrite bead filtering on the +5 V and +12 V supply rails at the backplane connector, suppressing conducted noise in the 1 MHz–100 MHz band. The flat ribbon cable to the drive is routed through a common-mode choke assembly, attenuating differential noise induced by the stepper motor drive signals. Ground plane continuity is maintained across the full PCB area, with the analog signal traces (read data, write data) routed in a dedicated inner layer separated from the digital logic layer by a solid ground plane — a standard four-layer stackup practice for mixed-signal industrial boards.

The board’s address decoding logic uses a PAL (Programmable Array Logic) device to map the FDC registers into the RCOM bus address space. This approach allows ABB to implement board-specific address offsets without modifying the FDC ASIC, and the PAL’s fuse map is factory-programmed and locked, preventing field modification. The result is a deterministic, non-configurable address map that eliminates address conflict risks during rack population — a meaningful advantage in multi-module Advant racks where address space management is a commissioning concern.

System Integration Benefits

• Deterministic scan-cycle isolation: Disk I/O is handled entirely by the onboard FDC ASIC and DMA engine; the host CPU receives a single interrupt per sector transfer, preserving the control loop’s fixed scan period without jitter accumulation.
• Direct backplane compatibility: The DIN 41612 connector and RCOM bus protocol are factory-matched to the Advant AC 450 / AC 410 rack, eliminating the need for adapter boards or firmware patches during installation.
• Transparent diagnostic reporting: The FDC status registers are memory-mapped into the RCOM address space and polled by the Advant OS during each maintenance cycle, surfacing drive fault codes (seek error, CRC error, write-protect active) directly in the system event log without requiring external diagnostic tools.
• Reduced CPU interrupt load: DMA-assisted sector transfers reduce CPU interrupt frequency by ~95 % versus polled I/O, freeing processor bandwidth for PID loop execution, alarm processing, and communication stack management.
• Hot-swap-safe power sequencing: The board’s power-on reset circuit holds the FDC in reset state until the backplane supply rails stabilize within ±5 % of nominal, preventing spurious write commands during rack power-up or module insertion.
• Legacy media compatibility: Support for both 3.5″ and 5.25″ drive formats (via cable adapter) allows the module to serve as a unified interface across mixed-generation Advant installations without requiring separate interface boards per drive type.
• ESD-hardened I/O lines: All external connector pins (ribbon cable interface) are protected by TVS diode arrays rated at ±15 kV contact discharge per IEC 61000-4-2, reducing field failure risk during drive cable connection and disconnection.
• Minimal rack footprint: Single-width module occupies one slot in the Advant rack, preserving adjacent slots for I/O expansion — a practical consideration in fully populated AC 450 racks where slot availability is constrained.

Quality Assurance & Global Logistics

Every DSMC110 57330001-N unit dispatched from our Xiamen facility is an original ABB-manufactured component, procured through documented supply channels with full chain-of-custody traceability. Prior to shipment, each board undergoes a structured inspection protocol: visual examination of PCB traces, solder joints, and component markings against ABB factory reference standards; connector pin integrity check using a calibrated contact resistance meter; and a powered bench test where the FDC ASIC is exercised through a seek-and-read cycle to confirm register response and interrupt generation.

Units are packed in anti-static ESD shielding bags (surface resistance < 10⁹ Ω per ANSI/ESD S11.31), placed in foam-lined rigid cartons rated for 1.2 m drop per ISTA 1A, and sealed with tamper-evident tape. A Konmask inspection certificate with the technician’s ID, test date, and pass/fail record is enclosed with each shipment.

International orders are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Expedited — carrier selection based on destination and lead-time requirement. Transit time to most destinations in Europe, North America, Southeast Asia, and the Middle East is 3–5 business days from payment confirmation. Commercial invoice, packing list, and HS code documentation (HS 8537.10) are prepared for all cross-border shipments. Domestic China orders ship via SF Express with 1–2 business day delivery to major industrial hubs.
