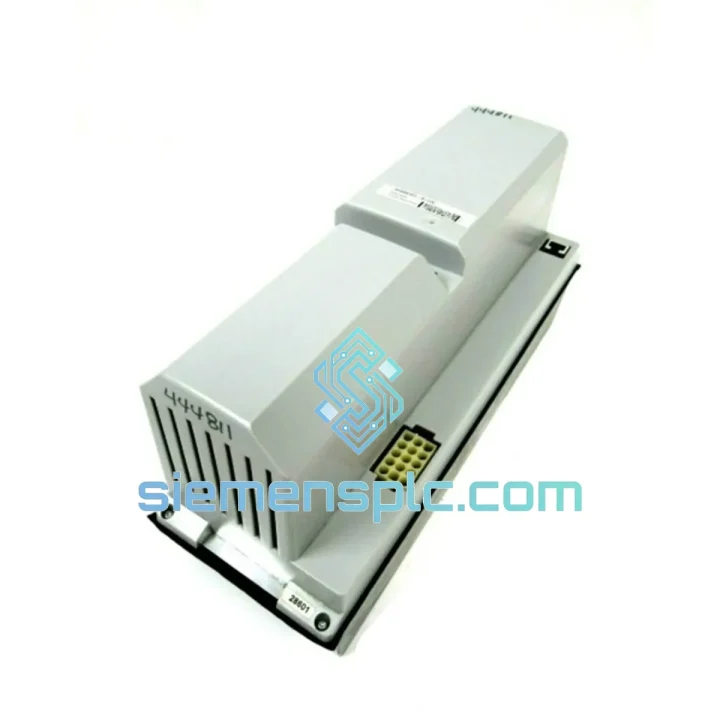

ABB DSQC346G AC Servo Drive Unit

ABB DSQC346G AC Servo Drive Unit – Stop the Clock on Your Downtime

Every minute a robot axis is offline in an automotive weld cell or a palletizing line costs real money. The ABB DSQC346G is the axis-level AC servo drive module fitted inside IRC5 and S4C+ controller cabinets. When it fails, the robot stops — full stop. This page exists for one reason: to get a verified, ready-to-ship replacement into your hands before the next shift starts.

We maintain physical stock of the DSQC346G in Xiamen, China, dispatched same-day or next-morning via DHL Express or FedEx International Priority. From Xiamen to Frankfurt, Chicago, or Seoul, transit is typically 2–4 business days. No lead-time games, no back-order promises — call or email and we confirm stock within the hour.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Axis-specific current and power ratings vary by robot model and axis number. Provide your robot serial number and axis designation for datasheet confirmation before ordering.

Troubleshooting & Replacement Tips

The DSQC346G fails in predictable patterns. Knowing them cuts your diagnosis time from hours to minutes.

Common Fault Codes Pointing to DSQC346G Failure:

• 20001 – Drive Unit Error: Generic drive fault. Check the axis number in the error log — it maps directly to the physical drive slot in the cabinet. If the fault follows the module when swapped to another slot, the drive is confirmed faulty.
• 20002 – Drive Communication Error: Loss of communication between the axis computer (DSQC374) and the drive. Before condemning the drive, reseat the internal ribbon cable and verify the drive bus connector is fully engaged. If the fault persists after reseating, the DSQC346G drive interface is likely damaged.
• 20010 – Overcurrent / Short Circuit: Often caused by a shorted motor winding or cable insulation breakdown — not always the drive itself. Disconnect the motor cable at the drive output and re-power. If the fault clears, the motor or cable is the root cause. If the fault remains, the drive’s IGBT output stage has failed.
• 20050 – DC Link Undervoltage: Check the DSQC508 power supply first. If DC bus voltage is within spec and the fault is axis-specific, the drive’s internal voltage monitoring circuit may have drifted — a known aging failure mode on older DSQC346G units.

Replacement Procedure — Key Steps:

1. Power down and lock out the controller cabinet. Verify DC bus capacitors have discharged (minimum 5 minutes after power-off) before touching drive modules.
2. Record the axis slot position. The DSQC346G does not carry a physical address switch — its axis identity is determined by its physical slot position in the drive rack. Install the replacement in the identical slot.
3. Check firmware revision compatibility. The replacement drive must match the system software version loaded on the IRC5 controller. Mismatched firmware revisions can cause axis calibration errors or prevent the robot from entering motors-on state. Confirm the RobotWare version on the FlexPendant before ordering.
4. Inspect the motor feedback cable connector. Resolver or encoder connector pins at the drive end are a common secondary failure point — clean and inspect before connecting to the new drive.
5. Perform axis calibration after replacement. Even a direct slot-for-slot swap requires a fine calibration check. Use the calibration routine in RobotStudio or the FlexPendant to verify axis zero position has not shifted.
6. Run a slow-speed test cycle before returning the robot to production speed. Monitor the drive temperature and check for recurrence of fault codes during the first 30 minutes of operation.

Reliability in Harsh Conditions

The DSQC346G is not a general-purpose drive — it is designed to survive inside robot controller cabinets that operate in foundries, automotive stamping plants, and food processing facilities where ambient conditions are far outside the comfort zone of standard industrial electronics.

• Thermal Cycling Endurance: The drive’s power stage is rated for continuous duty at cabinet ambient temperatures up to 55 °C. ABB’s thermal design uses copper heat spreaders and direct contact between the IGBT module and the cabinet’s heat sink rail, maintaining junction temperatures within safe limits even during sustained high-torque axis movements.
• Vibration Resistance: Mounted on a rigid drive rack with captive fasteners, the DSQC346G meets IEC 60068-2-6 vibration test requirements. PCB components are selected for vibration-rated solder joint integrity — a critical factor in foundry and press-shop environments where floor vibration is continuous.
• EMC Shielding: The module’s metal enclosure provides shielding against conducted and radiated interference from welding equipment, variable-frequency drives, and high-current bus bars operating in the same cabinet or adjacent panels. Internal filtering on the DC bus input suppresses voltage spikes from switching transients.
• Humidity Tolerance: Conformal coating on the main PCB protects against condensation in environments where cabinet doors are opened frequently in humid conditions. This is particularly relevant in food and beverage plants where washdown procedures create high ambient humidity.
• Connector Durability: ABB specifies gold-plated contacts on the drive bus connector to resist oxidation in environments with airborne contaminants — a common failure accelerator in metalworking and chemical processing facilities.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian Province, China — one of the country’s primary export ports with direct access to DHL, FedEx, and UPS international express networks.

• Same-Day Dispatch: Orders confirmed and paid before 14:00 CST ship the same business day. Orders after 14:00 ship the following morning.
• DHL Express Worldwide: Xiamen to Western Europe (Germany, Netherlands, UK): 2–3 business days. Xiamen to North America (USA, Canada): 3–4 business days. Xiamen to Southeast Asia (Thailand, Vietnam, Indonesia): 1–2 business days.
• FedEx International Priority: Available as an alternative carrier for destinations where FedEx has stronger local delivery networks. Transit times are comparable to DHL.
• Export Documentation: Full commercial invoice, packing list, and Certificate of Origin provided with every shipment. HS code classification and customs value declaration handled by our logistics team — no delays at customs due to incomplete paperwork.
• ESD-Safe Packaging: The DSQC346G ships in anti-static bags inside foam-lined cartons. Outer carton is double-walled corrugated with fragile labeling. Units arrive in the same condition they left our warehouse.
• Tracking: AWB tracking number provided within 2 hours of dispatch. We monitor shipments proactively and alert you to any customs holds or delivery exceptions before you need to ask.
