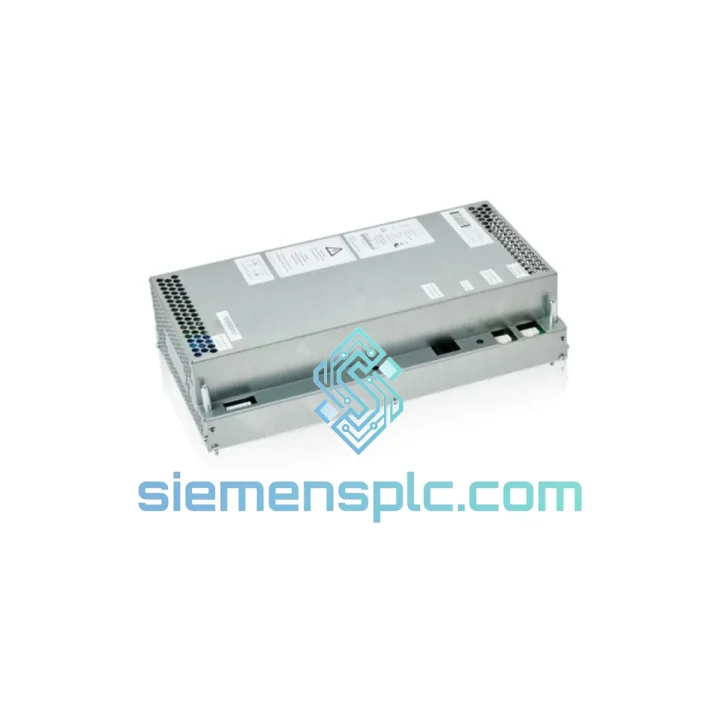

ABB DSQC626 3HAC026289-001 Robot Controller Power Supply

ABB DSQC626 — Stop the Bleed: IRC5 Power Supply Failure Costs You $10,000+ Per Hour

Your IRC5 cabinet is dark. The FlexPendant is unresponsive. Servo drives have tripped. You’ve already confirmed it’s not the mains breaker, not the E-stop chain — the DSQC626 AC/DC power supply module has failed, and your production line is hemorrhaging money every minute it stays down. We’ve been in that pit with you. This page exists for one reason: get you the ABB DSQC626 (3HAC026289-001) before your shift supervisor calls the plant manager.

We stock the DSQC626 in Xiamen and ship globally via DHL Express and FedEx International Priority. Confirmed orders placed before 16:00 CST dispatch same day. No RFQ theater, no 15-business-day lead time. You tell us your cabinet serial, we confirm compatibility, and the unit is moving within hours.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How to confirm the DSQC626 is the failed component — before you order:

The IRC5 controller runs a self-diagnostic at power-on. If the DSQC626 has failed, you’ll typically see one or more of the following before the cabinet goes completely dark:

• Error 20001 / 20002 — Power supply fault: Logged in the event log immediately before shutdown. Pull the log via RobotStudio or the FlexPendant history if you can still access it.
• Error 20050 — Internal voltage out of range: Indicates one of the regulated DC rails (typically +24 V or +5 V) has dropped below threshold. The DSQC626 is the primary suspect.
• All axis drives tripped simultaneously: If every drive unit (DSQC633A) faults at the same instant with no mechanical cause, the common upstream power rail has collapsed — that’s the DSQC626.
• FlexPendant powers off mid-session: The teach pendant draws from the +24 V rail. Intermittent pendant shutdowns under load are an early-stage DSQC626 failure signature.
• Cabinet fan continues running but CPU board (DSQC609) is unresponsive: Fans are often on a separate circuit. CPU board silence with fans running = CPU rail failure = DSQC626.

Replacement procedure — field notes:

1. Isolate and lock out: Confirm mains isolation at the cabinet disconnect. Verify zero voltage at the DSQC626 input terminals with a calibrated meter. Do not rely on the cabinet door interlock alone.
2. Document connector positions: The DSQC626 has multiple output connectors feeding different backplane rails. Photograph all connector positions before disconnecting — mislabeled connectors are the #1 cause of post-replacement faults.
3. No DIP switch or address configuration required: The DSQC626 is not a node on the IRC5 DeviceNet or PROFIBUS backplane. It is a passive power converter — no firmware, no addressing, no RobotWare configuration changes needed after swap.
4. Check input fuses first: Before condemning the DSQC626, verify the two input fuses (typically F1 and F2 on the cabinet power distribution board). A blown fuse with an intact DSQC626 is a $5 fix. Confirm with a continuity test.
5. Verify output rails after installation: With the new DSQC626 installed and mains restored, measure the +24 V, +5 V, and ±15 V rails at the backplane test points before powering the CPU board. Tolerance should be within ±2% of nominal.
6. Cold-start the controller: After a power supply replacement, perform a full cold start (main power off for 30 seconds, then on). Do not use warm restart — the CPU board needs to re-initialize from a clean power state.
7. RobotWare version compatibility: The DSQC626 hardware is compatible across all RobotWare 5.x and 6.x versions. No firmware matching is required. If you’re running RW 4.x on legacy M2000 hardware, the DSQC626 does not apply — contact us for the correct legacy PSU.

Common misdiagnosis to avoid: Engineers frequently replace the DSQC609 CPU board when the actual failure is the DSQC626 starving the CPU of its +5 V rail. The DSQC626 is a fraction of the cost of the DSQC609. Always verify power rails before condemning the CPU.

Reliability in Harsh Conditions

The DSQC626 was designed for the realities of industrial production environments — not a climate-controlled server room. ABB’s IRC5 platform is deployed in automotive body shops where ambient temperatures routinely hit 45°C, in foundries where vibration is constant, and in food processing facilities where humidity and washdown cycles are daily events. The DSQC626 is built to survive all of it.

Thermal performance: The module operates continuously at up to 55°C ambient without derating. Internal thermal management uses a combination of conduction cooling through the backplane mounting and convection via the cabinet’s forced-air cooling system. Units that fail prematurely in high-temperature environments are almost always the result of blocked cabinet air filters — not component weakness. Check your filter maintenance schedule.

Vibration tolerance: The DSQC626 meets IEC 60068-2-6 vibration testing requirements. All internal components are conformal-coated and mechanically secured. In press-tending and stamping applications where floor vibration is severe, the module’s backplane connector is the most vulnerable point — inspect the connector locking tabs during replacement.

Humidity and contamination: The IRC5 cabinet provides IP54 protection when properly sealed. The DSQC626 itself is not rated for direct moisture exposure. In high-humidity environments (food, beverage, pharmaceutical), verify cabinet door gasket integrity and check for condensation on the backplane during seasonal temperature swings. Condensation-related failures on the DSQC626 are identifiable by corrosion tracks on the PCB — visible under inspection.

EMI resilience: The module includes internal EMI filtering on the AC input stage, compliant with EN 61000-4 series immunity standards. In environments with large VFDs or welding equipment on the same power bus, ensure the IRC5 cabinet is on a dedicated circuit with proper grounding — the DSQC626’s input filter handles normal industrial EMI, but sustained conducted interference from poorly isolated welding inverters will degrade any PSU over time.

Every unit we ship has been functionally tested under load conditions that simulate real-world IRC5 operation. We do not ship untested surplus. If a unit fails our bench test, it does not leave our facility.

Global Express Logistics

We operate from Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. When your robot is down, logistics speed is not a nice-to-have. It is the only variable you can still control.

Our standard dispatch process:

• Order confirmation by 16:00 CST → Same-day dispatch. The unit is packed, labeled, and handed to the carrier before end of business.
• DHL Express Worldwide: Xiamen to most of Europe, North America, and Southeast Asia in 2–4 business days. Real-time tracking from pickup to delivery.
• FedEx International Priority: Alternative routing for destinations where FedEx has stronger last-mile coverage. We select the faster option for your specific destination at no extra charge.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared for every international shipment. HS Code 8537.10 (industrial control panels/modules) — we handle customs classification correctly so your shipment clears without delay.
• ESD-safe packaging: Anti-static bag, foam-lined rigid box, moisture barrier. The DSQC626 arrives in the same condition it left our bench.
• Emergency freight: For critical downtime situations, we can arrange next-flight-out courier options. Contact us via WhatsApp for real-time coordination.

We’ve shipped to automotive plants in Germany, semiconductor fabs in Taiwan, food processing facilities in Australia, and oil & gas installations in the Middle East. The process is the same every time: fast, documented, and traceable.
