ABB DSQC688 3HAC031670-001 — PROFIBUS-DP Option Board for IRC5 Robot Controllers

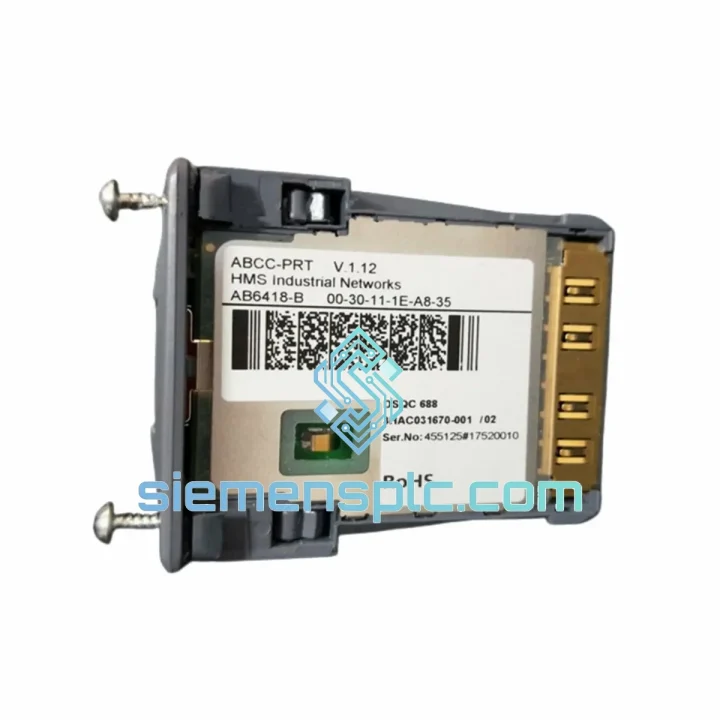

The ABB DSQC688, catalogued under part number 3HAC031670-001, is a dedicated PROFIBUS-DP fieldbus communication board engineered for integration into ABB IRC5 robot controller cabinets. Its primary function is to establish a deterministic, high-speed data link between the IRC5 motion controller and upstream PLC or SCADA systems operating on a PROFIBUS-DP network. The board occupies one of the IRC5 internal option board slots and communicates with the main computer unit (MCU) via the IRC5 internal PCI-based backplane, enabling real-time I/O exchange without burdening the robot’s primary CPU processing cycle.

In a typical manufacturing cell, the DSQC688 operates as a PROFIBUS-DP slave node, receiving process commands and returning status data to a Siemens S7-300, S7-400, or S7-1500 PLC acting as the DP master. The board supports baud rates from 9.6 kbit/s up to 12 Mbit/s, automatically negotiating the network speed during initialization. This auto-baud detection eliminates manual DIP-switch configuration and reduces commissioning time in multi-node PROFIBUS segments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DSQC688 is built around a dedicated PROFIBUS ASIC — the Siemens SPC3 or equivalent second-generation DP controller IC — which handles all PROFIBUS-DP protocol state machine processing independently of the host CPU. This architecture is architecturally significant: the IRC5 main computer unit is not interrupted on every PROFIBUS token pass. Instead, the ASIC buffers incoming and outgoing process data in dual-port RAM, and the host reads or writes this shared memory region at its own scheduler interval. The result is a decoupled communication model where PROFIBUS cycle jitter does not propagate into the robot motion planner’s real-time thread.

Optical Isolation Architecture: The RS-485 transceiver stage on the DSQC688 incorporates galvanic isolation between the PROFIBUS bus lines and the board’s internal logic ground. This isolation barrier — typically rated at 500 V DC or higher — prevents ground loop currents from corrupting the differential RS-485 signal, a common failure mode in large factory installations where welding equipment or variable-frequency drives introduce significant common-mode noise on the cable shield. The isolation also protects the IRC5 backplane from transient overvoltages induced by cable faults or lightning coupling on long PROFIBUS trunk runs.

EMC Design: The board’s PCB layout follows IEC 61000-4-4 (electrical fast transient) and IEC 61000-4-6 (conducted RF immunity) design rules. Decoupling capacitors are placed at each power rail entry point, and the DB9 connector shell is bonded to the chassis ground plane through a low-impedance path, ensuring the cable shield termination does not float. This is consistent with PROFIBUS International’s installation guideline for Class A EMC environments, which includes automotive body shops and arc welding cells.

Watchdog and Fail-Safe Logic: The PROFIBUS ASIC implements a hardware watchdog that monitors the DP master’s cyclic polling interval. If the master fails to address the DSQC688 within the configured watchdog timeout (configurable in the GSD file, typically 10–100 ms), the board asserts a fault signal to the IRC5 system software, which can trigger a controlled robot stop or a safe-state output transition. This behavior is compliant with PROFIBUS-DP fail-safe extensions and is essential for SIL-rated cell designs where loss of fieldbus communication must result in a defined safe state rather than an undefined output freeze.

System Integration Benefits

• Zero-latency I/O exchange via dual-port RAM: Process data is available to the IRC5 motion controller within one PROFIBUS cycle after the DP master writes it, with no additional software polling overhead on the robot CPU.
• GSD file-based configuration: The board ships with a standard PROFIBUS GSD (General Station Description) file, allowing any DP master configuration tool — Siemens STEP 7, TIA Portal, Beckhoff TwinCAT, or Schneider Unity Pro — to import the I/O map without manual parameter entry.
• Deterministic cycle time: At 12 Mbit/s with a 32-byte I/O payload, the PROFIBUS cycle time for a single slave is under 1 ms, enabling the IRC5 to synchronize robot motion events with PLC-controlled peripheral equipment at sub-millisecond precision.
• Transparent diagnostic reporting: The DSQC688 supports PROFIBUS-DP diagnostic telegrams (Diag.ExtDiag), allowing the PLC master to read board-level fault codes — such as watchdog timeout, configuration mismatch, or hardware fault — directly from the PROFIBUS network without requiring a separate Ethernet or serial diagnostic channel.
• Backward compatibility with legacy PROFIBUS segments: The board operates at baud rates as low as 9.6 kbit/s, maintaining compatibility with older PROFIBUS networks that cannot be upgraded to higher speeds due to cable length or repeater constraints.
• Hot-swap awareness: While the IRC5 does not support live board insertion, the DSQC688’s initialization sequence is designed to complete within the IRC5 boot cycle, minimizing controller restart time after a board replacement — typically under 90 seconds from power-on to PROFIBUS ready state.
• Multi-master network support: In networks with redundant PLC masters using token-passing arbitration, the DSQC688 correctly handles master switchover without requiring a robot controller restart, preserving production continuity during PLC failover events.
• Reduced wiring complexity: A single PROFIBUS trunk cable replaces the discrete I/O wiring harness between the PLC and the IRC5, reducing panel wiring labor, connector failure points, and cable tray congestion in dense robot cell installations.

Quality Assurance & Global Logistics

Every DSQC688 3HAC031670-001 unit supplied through siemensplc.com is sourced from verified ABB-authorized distribution channels or factory-sealed surplus stock with traceable lot documentation. Prior to dispatch, each board undergoes a structured pre-shipment verification protocol: visual inspection for component damage, connector pin integrity check, part number and revision label cross-reference against ABB’s published bill of materials, and a power-on functional test confirming PROFIBUS ASIC initialization and backplane communication handshake.

Units are packaged in anti-static shielding bags, placed in foam-lined rigid cartons, and sealed with tamper-evident tape. For international shipments, ESD-safe inner packaging is enclosed within double-wall corrugated outer cartons rated for air freight handling. Shipments originate from our warehouse in Xiamen, China, with standard transit times of 3–7 business days to Europe and North America via DHL Express or FedEx International Priority. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. All shipments include a commercial invoice, packing list, and — upon request — a certificate of conformance and test report.

The 12-month warranty covers functional failure under normal operating conditions. Boards exhibiting failure within the warranty period are replaced or refunded at no additional freight cost to the buyer. Our technical team, with direct experience in IRC5 commissioning and PROFIBUS network architecture, is available to assist with pre-installation compatibility verification, GSD file configuration, and post-installation diagnostic support.
