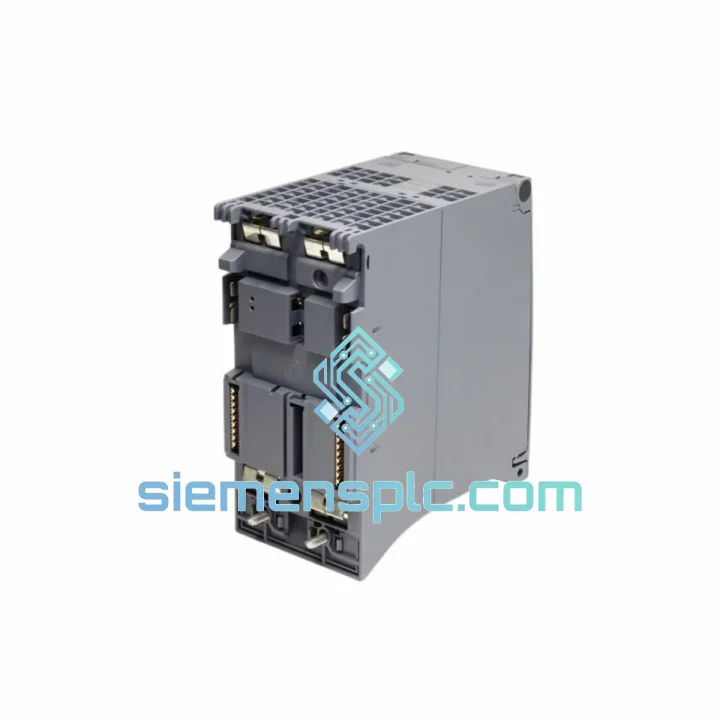

Siemens 6ES7515-2AM01-0AB0 PLC CPU Module – SIMATIC S7-1500

Siemens 6ES7515-2AM01-0AB0 CPU 1515-2 PN — Backplane Bus Architecture and Control Loop Processing in SIMATIC S7-1500 Systems

The CPU 1515-2 PN, ordered under MLFB 6ES7515-2AM01-0AB0, occupies the mid-to-upper performance tier of the SIMATIC S7-1500 family. It is designed for distributed automation architectures where a single controller must simultaneously manage local rack I/O, multiple PROFINET subnets, motion technology objects, and OPC UA data publishing — without sacrificing deterministic cycle execution. This page documents the hardware logic, electrical parameters, and system integration characteristics of this specific firmware V2.1 variant.

The S7-1500 backplane bus connecting the CPU to co-located I/O modules operates at an internal transfer rate that sustains sub-millisecond I/O update cycles for up to 32 modules per rack. Unlike the S7-300 parallel backplane, the S7-1500 U-connector bus is a serial, point-to-point differential link with integrated error detection per segment — eliminating the propagation faults that could corrupt multi-module read cycles on older platforms. The CPU arbitrates bus access through a deterministic time-division scheme, ensuring that each module’s process image is refreshed within a bounded window regardless of program scan load.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Backplane Bus Arbitration and Throughput

The S7-1500 internal U-connector bus uses a differential serial protocol with hardware-level CRC per frame. The CPU 1515-2 PN acts as the bus master, issuing time-slotted read/write cycles to each module slot in a fixed sequence. This deterministic arbitration model means that the worst-case I/O latency from field signal change to process image update is calculable at design time — a property that is absent in asynchronous bus architectures. For a fully populated 32-module rack, the backplane cycle completes within the CPU’s configured OB1 scan cycle, typically 1–10 ms depending on program complexity.

EMC Design and Shielding Architecture

The CPU housing is a die-cast aluminum front frame with a steel backplane interface, providing a continuous Faraday enclosure around the processor board. The PROFINET PHY transceivers are galvanically isolated from the internal logic supply via pulse transformers rated to 1.5 kV isolation voltage, suppressing common-mode noise injected from field cable shields. The 24 V DC input passes through an integrated LC filter (inductance in series, capacitance to PE) before reaching the DC/DC converter, attenuating conducted emissions in the 150 kHz–30 MHz band per EN 55011 Class A limits. All I/O module connectors on the backplane carry chassis ground continuity through the U-connector mechanical latch, ensuring that shield drain currents from analog signal cables return to PE without traversing the logic ground plane.

Processor Core and Memory Subsystem

The CPU 1515-2 PN employs a multi-core SoC architecture where one core is dedicated to the real-time PLC task scheduler (OB execution, I/O update, motion TO processing) and a second core handles communication stack processing (PROFINET stack, OPC UA server, web server, S7 communication). This physical separation prevents communication load spikes from introducing jitter into the deterministic control loop — a common failure mode in single-core PLC designs under heavy HMI polling. The 1 MB program work memory and 5 MB data work memory are implemented in low-latency SRAM with ECC (Error Correcting Code) protection, detecting and correcting single-bit upsets caused by cosmic ray ionization — relevant in installations above 2,000 m altitude or in high-radiation industrial environments.

PROFINET IRT Isochronous Mode

Interface X1 supports PROFINET IRT (Isochronous Real-Time) with a minimum send clock of 250 µs. In IRT mode, the PROFINET ASIC on the CPU schedules Ethernet frame transmission at hardware-level precision, bypassing the OS scheduler entirely. This enables jitter values below ±1 µs for motion-critical I/O data exchange with IRT-capable drives (e.g., SINAMICS S120 via DRIVE-CLiQ bridge or PROFINET IRT). The X2 interface operates in standard RT mode (cycle ≥ 1 ms), suitable for HMI, SCADA, and engineering station connections where microsecond jitter is not a constraint.

Retentive Memory and Battery-Free Operation

The CPU 1515-2 PN uses a supercapacitor-backed SRAM buffer for retentive data areas (M, DB, T, C marked as retentive in TIA Portal). The supercapacitor sustains RAM content for a minimum of 10 days at 25 °C after power loss — eliminating the maintenance burden of lithium backup batteries that require periodic replacement in S7-300/400 installations. For long-term data persistence beyond the supercapacitor window, the SIMATIC Memory Card provides non-volatile flash storage for program blocks and data records.

System Integration Benefits

• Dual-Subnet PROFINET Topology: X1 and X2 operate as independent PROFINET controllers, allowing physical separation of machine-level IRT traffic (drives, encoders) from plant-level RT traffic (HMI, SCADA, MES). Cross-subnet jitter contamination is eliminated at the hardware level.
• Native OPC UA Server — No Gateway Required: The integrated OPC UA server (DA, Alarms & Conditions from V2.6+) exposes PLC data tags directly to MES, historian, and cloud platforms via standard TCP/IP. This removes the cost and latency of a dedicated OPC gateway PC in the control cabinet.
• Motion Technology Objects with Synchronized Axes: Up to 30 technology axes (speed, positioning, synchronous) are managed natively within TIA Portal without a separate motion controller license. Cam profiles, gear synchronization, and electronic line shaft configurations are programmed in standard IEC 61131-3 function blocks.
• Integrated Web Diagnostics: The built-in web server provides real-time module status, CPU load, cycle time histogram, and alarm buffer access via standard browser — enabling remote first-level diagnostics without a TIA Portal license on-site.
• Scalable Distributed I/O via PROFINET: The CPU supports up to 256 PROFINET devices per interface, enabling large-scale distributed architectures with ET 200SP, ET 200MP, and ET 200eco PN stations across multiple production cells without additional communication processors.
• TIA Portal Unified Engineering: A single TIA Portal project file contains PLC logic, HMI screens, drive parameterization, and safety program — reducing version management complexity and eliminating inter-tool data consistency errors common in multi-tool engineering environments.
• Transparent Diagnostics to Field Level: PROFINET diagnostic alarms propagate from field devices (e.g., broken wire on an ET 200SP DI module) through the PROFINET stack to the CPU diagnostic buffer and TIA Portal online view in under 100 ms, enabling precise fault localization without manual I/O scanning.
• Forward Compatibility with S7-1500 Ecosystem: The CPU 1515-2 PN is firmware-upgradeable via SIMATIC Memory Card, allowing adoption of new TIA Portal features (e.g., GRAPH V7, ProDiag, Modbus TCP library updates) without hardware replacement — protecting capital investment across multi-year plant lifecycles.
• Cybersecurity — Access Protection and Integrity: Four-level access protection (no restriction / HMI access / read access / full access) is configurable per CPU in TIA Portal, with know-how protection for individual function blocks. Communication integrity is enforced via S7 protocol authentication, preventing unauthorized program uploads from non-engineering stations.

Quality Assurance & Global Logistics

Every unit of 6ES7515-2AM01-0AB0 supplied by siemensplc.com is sourced as genuine Siemens AG manufactured hardware. Each module carries the original Siemens MLFB label with traceable serial number, verifiable through Siemens Industry Online Support (SIOS) at support.industry.siemens.com. Factory seals are inspected prior to dispatch; any unit with compromised packaging is quarantined and not shipped.

Our warehouse is located in Xiamen, China — a major international logistics hub with direct air freight connections to Frankfurt, Amsterdam, Dubai, Singapore, Los Angeles, and Chicago. Standard export documentation provided with every shipment includes: commercial invoice, packing list, certificate of origin, and HS code classification (HS 8537.10) for customs clearance. For time-critical projects, DHL Express and FedEx International Priority options are available with typical transit times of 3–5 business days to Europe and North America.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are processed via email with photographic evidence of the defect; DOA (Dead on Arrival) units are replaced or refunded within 7 business days of confirmed receipt of the returned item. Export compliance documentation (EAR/ECCN classification) is available upon request for regulated destination countries.

Bulk order pricing, scheduled delivery contracts, and consignment stock arrangements are available for system integrators and OEM machine builders with recurring procurement requirements. Contact our technical sales team for framework agreement terms.
