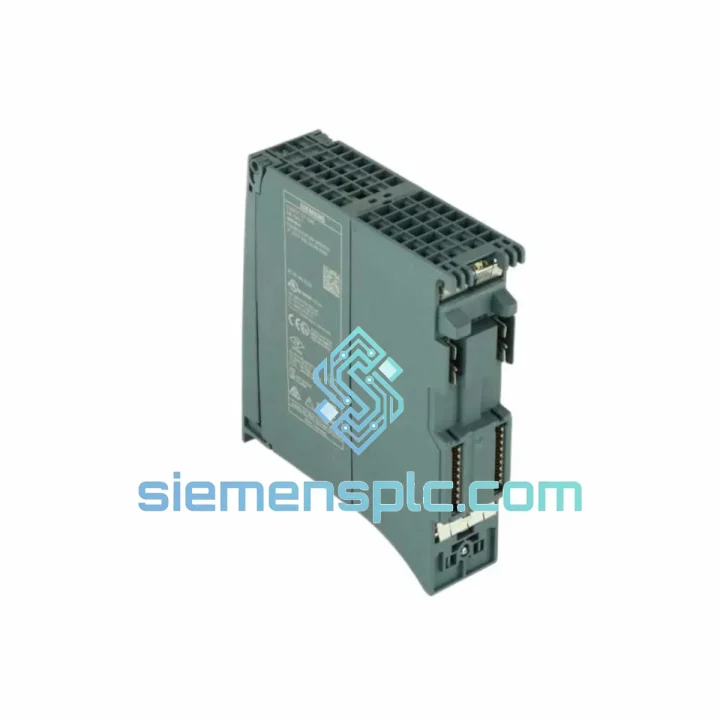

Siemens 6GK7542-1AX00-0XE0 Communication Module

6GK7542-1AX00-0XE0 CM 1542-1 — Every Hour of Downtime Costs You. We Ship Today.

Your S7-1500 rack is dark. The PROFINET ring is broken. Production is stopped. You’ve already isolated the fault to the CM 1542-1 — now you need a verified replacement on your bench, not a 6-week lead time from a distributor. We stock the Siemens 6GK7542-1AX00-0XE0 in Xiamen and ship same-day via DHL Express or FedEx International Priority. Most destinations in Asia receive delivery within 24–48 hours. Europe and the Americas within 3–5 business days. No excuses. No delays.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fifteen years of field calls on S7-1500 racks teach you the same lesson every time: the CM 1542-1 fails quietly before it fails completely. Here’s what to watch for and how to execute a clean swap.

Common Fault Signatures Before Full Failure

• Diagnostic buffer entries 0x0001 / 0x0002 (Module inserted/removed): Intermittent backplane bus contact — check rack slot seating and backplane connector pins before condemning the module.
• PROFINET IO device alarms (OB 82 triggered): If multiple IO devices drop simultaneously and the CPU’s onboard PN interface is healthy, the CM 1542-1’s controller AR has collapsed. Pull the diagnostic buffer from TIA Portal → Online & Diagnostics → Diagnostic Buffer.
• SF/BF LED solid red on CM 1542-1: Module-level hardware fault. Cross-check with TIA Portal hardware diagnostics. If the module shows “Not reachable” in the device view, the backplane communication has failed — replacement is required.
• Intermittent IRT jitter spikes: Before replacing, verify cable shielding continuity on all PROFINET segments. A single unshielded splice can mimic module failure under load.
• Error code 0x0200 in PROFINET diagnostic: IP address conflict on the PROFINET subnet. The replacement module inherits the device name and IP from the TIA Portal project — no manual IP assignment needed if the project is intact.

Step-by-Step Replacement Procedure

1. Document current configuration: Before powering down, export the TIA Portal project and note the CM 1542-1’s device name (visible in TIA Portal → Devices & Networks). The replacement module ships without a device name — it must be assigned via TIA Portal or the PRONETA tool.
2. Power down the S7-1500 rack: Remove the 24 V DC supply to the PS module. The CM 1542-1 draws power from the backplane — there is no separate power connector to disconnect.
3. Disconnect PROFINET cables: Label both RJ45 ports (P1 and P2) before removal. Port assignment matters in line topology — reversing them breaks the ring segment.
4. Slide out the module: Press the orange release lever at the top of the module, tilt forward, and lift out. No tools required.
5. Seat the replacement module: Align the backplane connector and press firmly until the latch clicks. Reconnect PROFINET cables in the correct port order.
6. Assign device name: Power up the rack. In TIA Portal, go to Online → Assign PROFINET device name. Select the new module (it will appear with a blank name) and assign the project-defined device name. The module will automatically receive its IP address from the IO controller.
7. Verify IRT topology: If IRT is configured, run the topology check in TIA Portal → Devices & Networks → Topology view. Confirm all neighbor relationships are correctly detected before going online.
8. Firmware check: Compare the replacement module’s firmware version against the project’s hardware catalog version. If mismatched, update via TIA Portal → Online → Firmware update. A firmware mismatch will not prevent operation but may cause diagnostic warnings.
9. Go online and verify: Set CPU to RUN. Confirm all IO devices transition from “Bad” to “Good” state in the PROFINET diagnostics view. Check OB 82 is not being called.

Critical Configuration Notes

• The CM 1542-1 does not use DIP switches or rotary address selectors — all addressing is software-defined via TIA Portal. No physical configuration required on the module itself.
• If replacing in a PROFIsafe environment (F-CPU), verify that the F-address (F-Dest_Add) of safety IO devices is preserved in the TIA Portal project. The F-address is stored in the IO device, not the CM 1542-1, so it survives the module swap.
• MRP ring configurations require both ring ports to be reconnected before powering up — an open ring will cause all devices on the ring segment to report faults.

Reliability in Harsh Conditions

The CM 1542-1 is not office-grade hardware dressed in industrial packaging. It is built for environments that destroy lesser components.

Vibration & Mechanical Shock: Tested to IEC 60068-2-6 (sinusoidal vibration, 5–150 Hz, 1g) and IEC 60068-2-27 (mechanical shock, 15g / 11 ms). In automotive body-shop environments with press lines running at 60 strokes per minute, the backplane connector maintains contact integrity across the full service life. The DIN rail mounting system includes a positive-locking mechanism that prevents rack creep under sustained vibration.

Thermal Performance: Rated for continuous operation at +60 °C ambient without derating. Inside a sealed control cabinet with poor ventilation, internal temperatures routinely exceed the ambient rating. The module’s thermal design accounts for this — the aluminum housing acts as a passive heat spreader, and the internal power regulation circuit maintains stable 3.3 V and 5 V backplane rails across the full temperature range. Storage down to -40 °C means the module survives unheated warehouses and cold-start commissioning in northern climates.

Humidity & Condensation: Rated 5–95% RH non-condensing. For installations in coastal or high-humidity environments — paper mills, food processing, offshore platforms — the conformal coating option provides additional protection against moisture ingress on the PCB. If your application involves rapid temperature cycling that risks condensation, specify conformal-coated units when ordering.

EMC Immunity: Compliant with IEC 61000-4-2 (ESD), IEC 61000-4-3 (radiated immunity), IEC 61000-4-4 (EFT/burst), and IEC 61000-4-5 (surge). In high-voltage switchgear environments where VFDs and contactors generate significant conducted and radiated noise, the CM 1542-1’s PROFINET ports include integrated magnetics and TVS protection on the RJ45 interface.

ATEX / IECEx Zone 2: The module carries ATEX Zone 2 and IECEx certification for use in potentially explosive atmospheres (gas group IIC, temperature class T4). For Zone 2 installations, the module must be installed in a certified Ex e or Ex p enclosure — it is not intrinsically safe for Zone 1 or Zone 0 use.

Global Express Logistics

We operate from a bonded warehouse in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways.

Order Cut-Off & Same-Day Dispatch: Orders confirmed and paid before 15:00 CST (UTC+8) ship the same business day. Orders received after cut-off ship the following morning. Each shipment is processed individually with a dedicated tracking number issued within 2 hours of dispatch.

Carrier Selection by Destination:

• Southeast Asia (SG, MY, TH, VN, ID, PH): DHL Express — 1–2 business days, door-to-door with customs clearance included.
• Northeast Asia (JP, KR, TW, HK): FedEx International Priority — 1–2 business days.
• South Asia (IN, PK, BD): DHL Express — 3–4 business days. We provide accurate HS code documentation (HS 8537.10) to minimize customs delays.
• Middle East (AE, SA, QA, KW): FedEx International Priority — 2–3 business days.
• Europe (DE, FR, NL, PL, CZ, and all EU): DHL Express — 3–5 business days. EORI number required for EU import — provide yours at order time.
• North America (US, CA, MX): FedEx International Priority — 3–5 business days. US HTS code 8537.10.9170 used for customs entry.
• Australia & New Zealand: DHL Express — 3–4 business days.

Documentation Package (Standard with Every Shipment): Commercial invoice (English), packing list, certificate of origin, and product datasheet. Test report and certificate of conformity available upon request at no additional charge.

Emergency Freight: For genuine production-down situations, contact us via WhatsApp for same-day courier booking with real-time tracking. Hand-carry delivery to select destinations in Asia available within 12 hours for critical situations.
