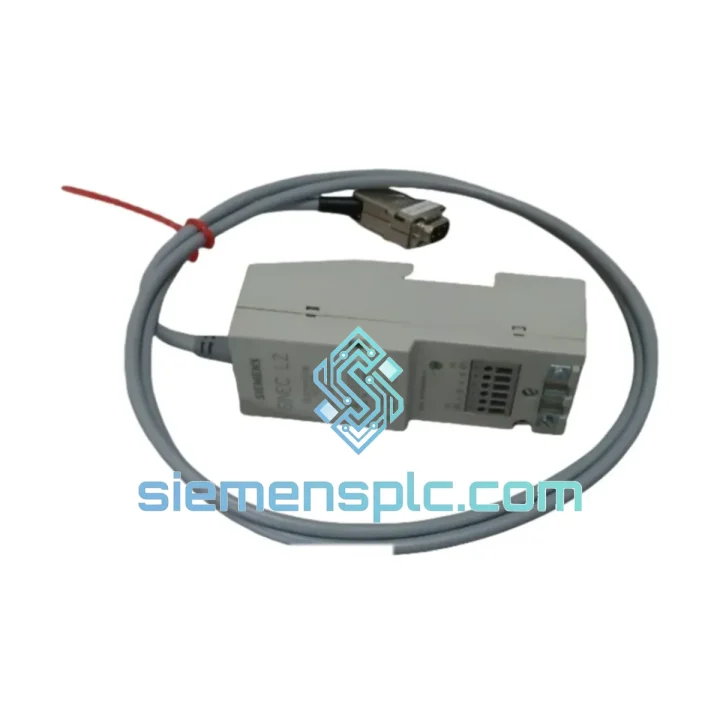

Siemens 6GK1500-0AA00 PROFIBUS Cable

6GK1500-0AA00 Down? Every Minute of Bus Failure Costs You — We Ship Same Day from Xiamen

A broken PROFIBUS segment doesn’t wait for procurement cycles. When your Siemens 6GK1500-0AA00 connecting cable fails — whether from connector fatigue, shield breach, or physical damage — the entire DP network segment goes dark. S7-300 CPUs throw BF (Bus Fault) LEDs, ET 200 remote I/O drops offline, and your line stops. We stock the 6GK1500-0AA00 in Xiamen and dispatch within hours of order confirmation via DHL Express or FedEx International Priority. No waiting on factory lead times. No minimum order. One cable, shipped today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Symptom: BF LED solid red on S7-300/400 CPU, all DP slaves offline.
This is the classic total-segment failure. Before condemning the cable, check the following in order:

1. Termination resistors: The 6GK1500-0AA00 is a passive cable — it carries no built-in termination. Confirm that the bus connector at each physical end of the segment has its termination switch set to ON (typically a slide switch on the PROFIBUS plug body, e.g., 6ES7972-0BB52-0XA0). A missing terminator at either end causes reflections that corrupt the entire segment at baud rates above 1.5 Mbit/s.
2. Shield continuity: Use a multimeter to verify shield continuity end-to-end. A broken braid shield — common after repeated cable flexing or cable tray abrasion — allows EMI ingress that manifests as intermittent BF faults, not always a hard failure. Resistance should be <1 Ω.
3. Pin 3 (RxD/TxD-P) and Pin 8 (RxD/TxD-N): These are the active data lines. Check for continuity and verify no short to shield or chassis ground. A single shorted pin kills the segment.
4. Connector seating: DB9 connectors on PROFIBUS plugs are notorious for cold solder joints after vibration. Reseat and tighten the locking screws. Torque to 0.2 Nm — overtightening cracks the connector housing.
5. Baud rate mismatch after swap: The 6GK1500-0AA00 supports up to 12 Mbit/s, but if you’re replacing a cable that was previously run at a lower baud rate, verify the CPU DP master baud rate setting in HW Config (STEP 7) or the Device Configuration (TIA Portal) matches the network. A mismatch after hardware change causes immediate BF.

Replacement procedure (zero-downtime swap, if a spare segment port is available):

1. In STEP 7 / TIA Portal, note the DP address of all slaves on the affected segment.
2. Power down only the affected segment — do not cycle the CPU if other segments are running.
3. Disconnect the faulty 6GK1500-0AA00 from both ends. Label the connectors before removal.
4. Install the replacement cable. Verify termination switches are correctly set on the two end connectors.
5. Power up the segment. The CPU should re-establish DP communication within 3–5 seconds. Monitor the BF LED — it should extinguish.
6. In TIA Portal / STEP 7, run a “Module Status” check to confirm all slave addresses are responding.
7. If BF persists after confirmed cable replacement, suspect the DP master interface module (CP or CPU integrated DP port) — check for hardware fault entries in the CPU diagnostic buffer (OB82 / OB86 call stack).

Common fault codes associated with 6GK1500-0AA00 failure:

• OB86 / Event ID 16#DCBA: DP slave station failure — triggered when a slave drops off the bus due to cable loss.
• OB82 / Diagnostic interrupt: Module-level diagnostic from a DP slave reporting loss of bus communication.
• W#16#0005 in SFC13 (DPRD_DAT): Return value indicating DP slave not reachable — direct indicator of physical bus break.

Reliability in Harsh Conditions

The 6GK1500-0AA00 is built to Siemens’ SIMATIC NET industrial cable specification — not a commercial-grade product dressed up for industrial use. The double-shielded construction (inner foil + outer braided copper) provides >85 dB EMI attenuation across the PROFIBUS frequency range, making it suitable for installation in the same cable tray as 400V motor power cables without signal degradation.

The cable jacket compound is rated for continuous operation at 60 °C ambient — relevant in enclosed control cabinets during summer production peaks. The DB9 connector housings are zinc-die-cast, not plastic, providing mechanical rigidity under repeated mating cycles and resistance to deformation under cable pull loads. Siemens specifies a minimum bend radius of 5× cable diameter for fixed installation and 10× for flexing applications — respect these limits during routing to avoid shield fracture at the connector entry point, which is the most common physical failure mode in the field.

Vibration resistance is validated per IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), covering the frequency ranges typical of compressor rooms, press lines, and mobile equipment. Units supplied from our Xiamen stock are stored in climate-controlled conditions and shipped in original Siemens anti-static packaging to prevent connector oxidation during transit.

Global Express Logistics

Our dispatch hub is located in Xiamen, Fujian, China — a major international freight gateway with direct DHL and FedEx sort facilities. This means your emergency order doesn’t transit through an inland hub before reaching the airport. Typical dispatch-to-delivery timelines:

• Southeast Asia (SG, MY, TH, VN, ID): DHL Express — 1–2 business days
• Europe (DE, NL, PL, IT, ES): FedEx International Priority — 3–4 business days
• North America (US, CA, MX): DHL Express Worldwide — 3–5 business days
• Middle East (AE, SA, QA): FedEx International Priority — 2–3 business days
• Australia / New Zealand: DHL Express — 3–4 business days
• Domestic China: SF Express next-day to major cities

All shipments include a commercial invoice with accurate HS code declaration (HS 8544.42 — insulated electric conductors for a voltage not exceeding 1,000V, fitted with connectors) to prevent customs clearance delays. For orders requiring formal import documentation, we provide a packing list, certificate of origin, and Siemens product authenticity documentation upon request. DDP (Delivered Duty Paid) terms available for select destinations — contact us before ordering to confirm eligibility.

Tracking numbers are issued within 2 hours of dispatch and sent directly to your registered email. For urgent shipments, WhatsApp us your order number for real-time carrier updates.

Contact Information

📧 Email: [email protected]
💬 WhatsApp: +86 18359268345
🌐 Web: siemensplc.com
