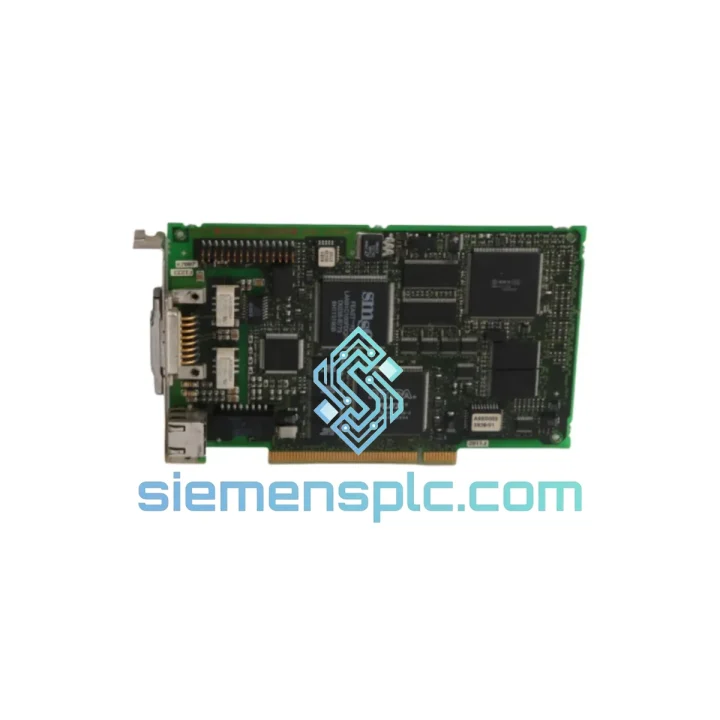

Siemens 6GK1161-3AA00 PCI Communication Processor – CP 1613 A2

Siemens 6GK1161-3AA00 CP 1613 A2 — PCI-Based Industrial Ethernet Communication Processor for PROFINET IO Networks

The Siemens 6GK1161-3AA00, commercially designated as the CP 1613 A2, is a 32-bit PCI communication processor engineered for integrating PC-class hardware — including programming devices, industrial PCs, and SCADA workstations — into PROFINET IO and Industrial Ethernet environments. Unlike generic NIC adapters, the CP 1613 A2 carries a dedicated hardware architecture that offloads protocol-layer processing from the host CPU, enabling deterministic frame handling at 10/100 Mbit/s with full support for ISO transport, TCP/IP, and PROFINET IO Controller, Device, and Supervisor roles within a single card footprint.

Deployed across automotive body-shop lines, pharmaceutical batch-control systems, and continuous-process plants, the 6GK1161-3AA00 occupies a well-defined position in the SIMATIC communication hierarchy: it bridges the engineering layer (PG/PC) to the field-device layer (S7-300, S7-400, S7-1500, ET 200 distributed I/O) without requiring an intermediate gateway or protocol converter. The card integrates natively with STEP 7 V5.x via the SOFTNET-IE S7 driver stack and with TIA Portal V13 through V19 via the updated SOFTNET-IE Industrial Ethernet package, preserving backward compatibility across multi-generation plant architectures.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6GK1161-3AA00 is built around a dedicated Ethernet controller ASIC paired with an onboard microprocessor that handles the lower layers of the PROFINET IO stack independently of the host CPU. This architecture produces two measurable benefits: first, the host CPU is relieved of cyclic frame scheduling, which is critical in soft-PLC (WinAC) deployments where the same processor manages both the control logic and the HMI; second, the card can sustain deterministic send-clock cycles for PROFINET IRT without relying on Windows scheduler interrupts, which are inherently non-deterministic.

The PCI bus interface operates at 32-bit width with support for both 33 MHz and 66 MHz bus speeds, and the 3.3 V / 5 V universal keying ensures physical compatibility with legacy and current-generation industrial PC backplanes. The RJ45 port implements auto-MDI/MDIX crossover detection, eliminating the need for crossover cables in direct-connect topologies — a practical advantage during commissioning in confined control-cabinet environments.

From an EMC standpoint, the card’s PCB layout follows Siemens’ internal shielding guidelines for industrial-grade hardware: the analog front-end (magnetics, transformer isolation) is physically separated from the digital logic plane by a ground-pour moat, reducing capacitive coupling between the Ethernet PHY and the PCI bus traces. This layout discipline contributes to the card’s compliance with EN 61000-6-2 Class A immunity levels, which mandate withstanding 10 V/m radiated fields and ±2 kV EFT/burst transients — conditions routinely encountered near variable-frequency drives and high-current contactors in panel environments.

The PROFINET IRT implementation on the CP 1613 A2 uses a hardware-based send-clock synchronization mechanism. The card receives the IRT domain’s synchronization frames and aligns its own transmission windows to the master clock with sub-microsecond precision, achieving jitter values below 1 µs — a prerequisite for motion-control applications where axis synchronization tolerances are in the single-digit microsecond range.

System Integration Benefits

• Zero-gateway PROFINET IO Controller role: The CP 1613 A2 allows a standard PC to act as a PROFINET IO Controller, directly managing up to 128 IO devices (ET 200SP, ET 200MP, distributed drives) without an intermediate S7 CPU — reducing BOM cost and latency in PC-centric control architectures.
• Simultaneous multi-role operation: A single 6GK1161-3AA00 can operate concurrently as PROFINET IO Controller, Device, and Supervisor, enabling the host PC to both control field devices and expose its own process data to an upstream controller — a topology common in test-bench and quality-inspection systems.
• Native TIA Portal hardware catalog entry: The card appears as a catalogued hardware object in TIA Portal’s device view, allowing engineers to configure IO device assignments, send-clock intervals, and watchdog times graphically without manual GSD file import.
• SOFTNET-IE S7 connection pooling: Up to 64 S7 connections are managed by the driver’s connection pool, with automatic reconnection on link loss — eliminating the need for application-level reconnection logic in SCADA and historian software.
• Isochronous Real-Time (IRT) support: Enables synchronized data exchange with IRT-capable IO devices (e.g., SINAMICS drives, SIMOTION controllers) at send-clock intervals as low as 250 µs, supporting coordinated multi-axis motion profiles.
• Integrated network diagnostics via PROFINET Supervisor role: The card can read LLDP neighbor tables, port statistics, and alarm records from all PROFINET devices on the subnet, feeding structured diagnostic data to WinCC or custom OPC DA/UA clients without additional diagnostic hardware.
• Backward compatibility with ISO and TCP/IP stacks: Legacy S5-compatible ISO transport connections and modern TCP/IP socket connections coexist on the same card, protecting investments in older SCADA drivers while enabling migration to Ethernet-native protocols.
• Deterministic cycle-time contribution: Because the card’s onboard processor handles frame scheduling, the host OS scheduling jitter does not propagate into the PROFINET send-clock domain. This decoupling allows the CP 1613 A2 to maintain ≤ 1 ms RT cycle times even when the host PC is under high CPU load from HMI rendering or historian writes.
• ESD and surge protection on the RJ45 port: The integrated magnetics assembly provides 1500 V AC isolation between the Ethernet cable and the card’s logic ground, protecting the PCI bus and host motherboard from cable-borne surge events in industrial wiring environments.
• Compact half-length PCI form factor: At approximately 170 mm card length, the 6GK1161-3AA00 fits in short-slot industrial PC chassis (e.g., Siemens SIMATIC IPC427, IPC477) where full-length cards cannot be accommodated.
