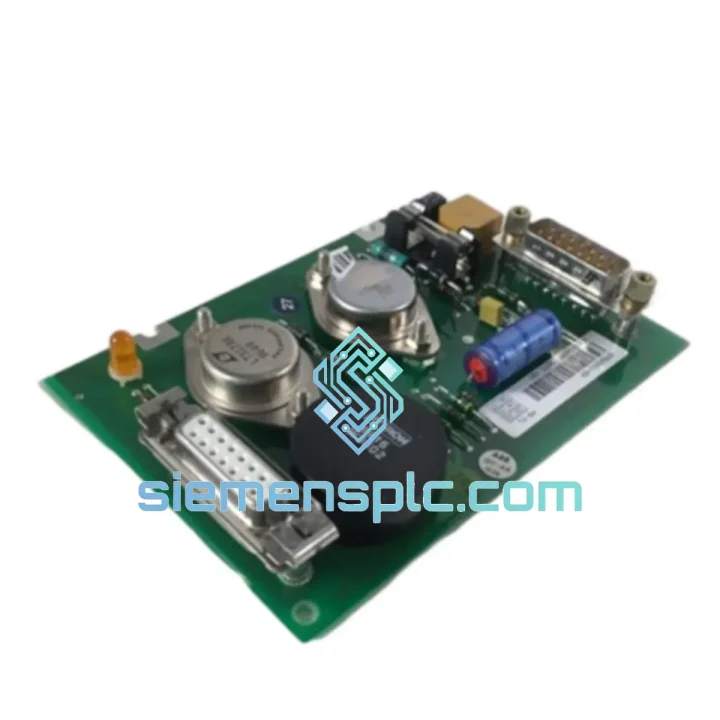

ABB DSTC190 57520001-ER Communications Module – Advant DCS

ABB DSTC190 57520001-ER: Advant DCS Inter-Module Communications Connection Unit

The ABB DSTC190 (part number 57520001-ER) is a dedicated Communications Connection Unit engineered for ABB’s Advant Open Control System (OCS) architecture. Its primary function is to terminate and route the Advant Fieldbus 100 (AF 100) or MasterBus 300 segment at the controller station level, providing a deterministic, electrically isolated data path between the process controller and the distributed I/O or peer controller nodes. In a multi-drop bus topology, the DSTC190 acts as the physical layer anchor: it absorbs bus termination impedance, manages signal reflection suppression, and presents a standardized backplane connector interface to the AC 450 or AC 410 controller chassis. Without a correctly specified connection unit at each bus segment endpoint, signal integrity degrades at baud rates above 500 kbit/s, introducing cyclic redundancy check (CRC) errors that manifest as sporadic communication faults in the operator station alarm log.

From a system architecture perspective, the DSTC190 occupies a slot in the S100 I/O bus subrack and communicates upstream to the controller CPU via the internal S100 parallel bus at a data transfer rate synchronized to the controller scan cycle. This tight coupling means the module’s propagation delay characteristics directly influence the achievable closed-loop scan time. ABB specifies the DSTC190 for applications where the fieldbus segment length does not exceed 750 m (twisted-pair, shielded) without a repeater, and where the node count per segment remains at or below 32 physical addresses.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DSTC190’s internal architecture centers on three functional blocks: the bus transceiver front-end, the optical isolation barrier, and the S100 backplane interface logic.

Bus Transceiver and Termination: The fieldbus-side transceiver implements a balanced RS-485-compatible differential driver/receiver pair. The DSTC190 integrates a switchable termination resistor network (typically 120 Ω matched to the characteristic impedance of the cable) that can be enabled or disabled via a hardware jumper, allowing the module to serve as either a segment endpoint (termination active) or a mid-segment node (termination inactive). This eliminates the need for external termination plugs and reduces wiring errors during commissioning.

Optical Isolation Barrier: Between the fieldbus transceiver and the backplane logic, the DSTC190 employs a dual-channel optocoupler stage. The transmit and receive data paths each pass through a separate high-speed optocoupler with a propagation delay of less than 1 µs, preserving signal timing integrity at 1 Mbit/s. The isolation barrier provides a galvanic break rated at 500 V AC, which is critical in industrial environments where ground potential differences between field cable shields and the controller chassis can reach tens of volts during ground fault events. Without this isolation, common-mode transients would couple directly into the backplane logic, causing data corruption or permanent device damage.

EMC Design: The PCB layout routes all high-frequency fieldbus signals on inner layers with continuous ground planes above and below, minimizing radiated emissions. Ferrite beads are placed in series with the power supply pins to attenuate conducted noise from the subrack power bus. The module’s front panel connector shell is bonded to chassis ground through a low-impedance path, providing a defined return route for shield currents and preventing them from flowing through the signal ground reference.

Backplane Interface Logic: On the S100 side, a programmable logic device (PLD) manages the address decoding and data multiplexing required to present the communications channel as a memory-mapped register set to the controller CPU. The PLD implements a hardware handshake protocol that prevents the CPU from reading a partially updated receive buffer, ensuring data coherency without requiring software semaphores. This deterministic handshake contributes directly to the predictable scan-cycle behavior that Advant OCS is specified to deliver.

System Integration Benefits

• Deterministic scan-cycle contribution: The hardware handshake between the DSTC190 and the AC 450 CPU guarantees that communications data is presented to the application program at a fixed point within each scan cycle, eliminating jitter-induced process variable errors in fast control loops.
• Galvanic isolation eliminates ground loops: The 500 V AC optical barrier prevents ground loop currents from corrupting fieldbus data, a common failure mode in plants where cable runs cross multiple electrical zones with differing earth potentials.
• Integrated termination reduces commissioning errors: The on-board switchable termination resistor removes the need for external termination plugs, which are frequently omitted or incorrectly installed during field wiring, causing reflections that degrade bus signal quality.
• Transparent diagnostics via controller CPU: The DSTC190 exposes a set of status registers readable by the AC 450 application program, including frame error count, CRC error count, and bus-off event flag. These counters can be mapped to operator station faceplates, giving maintenance engineers real-time visibility into fieldbus health without requiring a separate diagnostic tool.
• Hot-swap compatible subrack design: When installed in an S100 subrack with the appropriate backplane, the DSTC190 can be replaced without powering down the entire controller station, reducing mean time to repair (MTTR) in plants that cannot tolerate extended process shutdowns.
• Segment length flexibility: The 750 m maximum segment length (extendable with ABB-specified repeaters) accommodates large plant layouts where field junction boxes are distributed across multiple process areas, avoiding the cost of additional controller stations solely to reduce cable runs.
• Multi-master arbitration support: In redundant controller configurations, the DSTC190 participates in the MasterBus 300 arbitration protocol, allowing a standby controller to assume bus mastership within one scan cycle of a primary controller failure, maintaining process continuity during controller switchover.
• Long-term spare availability: The DSTC190 form factor and register map have remained stable across multiple Advant OCS hardware revisions, meaning a single spare module can serve as a replacement across a wide range of installed system vintages without firmware reconfiguration.

Quality Assurance & Global Logistics

Every ABB DSTC190 57520001-ER unit dispatched from our Xiamen, China facility is sourced exclusively from authorized ABB distribution channels or verified OEM-surplus stock. Prior to shipment, each module undergoes a structured inspection protocol: visual examination of the PCB for component damage, solder joint integrity, and connector pin condition; functional power-on test confirming correct LED status indication; and where test fixtures are available, a loopback communications test verifying the optical isolation stage and transceiver operation.

Units are packed in anti-static (ESD) shielding bags, placed in foam-lined cartons, and labeled with export-compliant documentation including a commercial invoice, packing list, and certificate of conformance. For customers in the EU, US, or other regulated markets, we can provide a material declaration on request. Standard international shipment is via DHL Express or FedEx International Priority, with typical transit times of 3–5 business days to Europe and North America. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. All shipments are fully tracked and insured. A 12-month warranty covers defects in materials and workmanship from the date of shipment.
