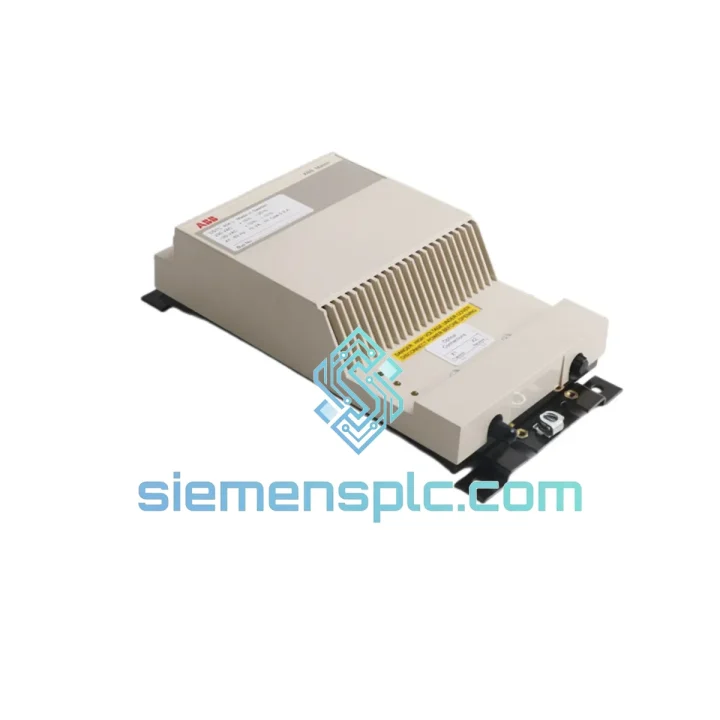

ABB DSTC454L 5751017-R Fiber Optic LDB Modem – ADVANT Series

ABB DSTC454L 5751017-R: Fiber Optic LDB Modem in ADVANT Distributed Control Architecture

The ABB DSTC454L (factory part number 5751017-R) is a dedicated fiber optic modem module engineered for the Local Data Bus (LDB) communication layer within ABB’s ADVANT and Master series distributed control systems. In a multi-node DCS topology, the LDB ring serves as the deterministic real-time backbone connecting controllers, I/O stations, and operator interfaces. The DSTC454L occupies a critical position in this architecture: it converts electrical backplane signals into optical pulses, transmits them across the fiber ring, and reconstructs the data stream at the receiving node — all within the strict cycle-time budget demanded by process-critical control loops.

Unlike generic industrial fiber transceivers, the DSTC454L is factory-calibrated to ABB’s proprietary LDB protocol stack, including its token-passing arbitration scheme and deterministic slot allocation. This means zero protocol tuning at commissioning and guaranteed interoperability with ADVANT Controller 450 and 410 platforms without firmware modification.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DSTC454L’s internal architecture reflects the design constraints of a high-availability process control environment. Several hardware-level decisions are worth examining:

Optical Isolation and EMC Immunity: By converting the LDB signal to optical form at the module boundary, the DSTC454L inherently breaks ground loops between nodes. In heavy industrial environments — motor drives, arc furnaces, high-voltage switchgear — conducted and radiated EMI can corrupt copper-based fieldbus signals. The fiber medium is immune to electromagnetic induction, eliminating the need for additional surge suppressors or isolation transformers on the communication path. The module’s internal transceiver circuitry is shielded and decoupled from the backplane power rail through LC filters, preventing switching noise from the host rack from modulating the optical output.

Token-Passing Arbitration Support: The LDB protocol uses a deterministic token-passing scheme rather than CSMA/CD. The DSTC454L’s onboard logic handles token detection, regeneration, and forwarding with a fixed, bounded latency. This is not a software-managed process — the token arbitration is implemented in dedicated gate-array logic, ensuring that worst-case bus cycle time remains constant regardless of CPU load on the host controller. For control loops with scan times in the 100–500 ms range, this determinism is non-negotiable.

Optical Power Budget and Link Margin: The module’s transmitter output power and receiver sensitivity are matched to ABB’s specified fiber segment lengths (typically up to 500 m per segment on 62.5/125 µm multi-mode fiber). The receiver incorporates an automatic gain control (AGC) circuit that compensates for connector aging and fiber bend losses over the installation lifetime, maintaining a link margin of approximately 6 dB above the minimum detectable signal threshold.

Hot-Swap Mechanical Design: The module’s edge connector and ejector lever mechanism are rated for a defined number of insertion cycles. The backplane interface includes passive pull-down resistors that hold the LDB bus in a defined idle state during module removal, preventing spurious token generation that could disrupt the ring during maintenance operations.

System Integration Benefits

• Deterministic Cycle Time: Hardware token arbitration guarantees a fixed worst-case LDB scan cycle, enabling control loop tuning with a known, stable communication delay component.
• Zero-Configuration Protocol Compatibility: Factory-programmed for ABB LDB protocol; no baud rate, parity, or framing parameters to configure at commissioning.
• Galvanic Isolation Across All Nodes: Fiber medium eliminates ground potential differences between geographically separated control cabinets, a common source of latent faults in large plant installations.
• Diagnostic Transparency: The module exposes optical link status (signal present / loss of light) to the ADVANT controller’s diagnostic layer, enabling the DCS to generate alarms and log events without external test equipment.
• Ring Redundancy Readiness: In dual-ring LDB configurations, the DSTC454L supports automatic ring reconfiguration upon single-fiber break, maintaining communication continuity to all nodes within one bus scan cycle.
• Reduced Cable Infrastructure Cost: A single fiber pair replaces multiple shielded copper pairs, reducing cable tray fill, conduit sizing, and long-term maintenance overhead in large installations.
• Long-Distance Node Separation: Supports inter-cabinet distances up to 500 m per segment, enabling distributed I/O placement without signal repeaters or protocol converters.
• Backward Compatibility with Legacy Racks: Mechanically and electrically compatible with existing ADVANT 450/410 rack slots; no rack modification or adapter required for direct replacement of failed units.
• Reduced Commissioning Risk: Eliminates the integration variables associated with third-party fiber modems — optical wavelength mismatch, protocol timing deviation, and connector incompatibility are non-issues with the OEM module.
• Predictable Spare Parts Lifecycle: Sourcing the original ABB part number ensures access to ABB’s engineering documentation, firmware release notes, and field service bulletins for the life of the installation.

Quality Assurance & Global Logistics

Every DSTC454L 5751017-R unit offered through siemensplc.com is sourced from verified supply channels — authorized distributor surplus, OEM-certified refurbishers, and factory-sealed new-old-stock. Prior to dispatch, each module undergoes a structured inspection protocol: visual examination of the PCB, optical connector, and ejector mechanism; functional verification of the optical transmitter output power using a calibrated optical power meter; and a loopback communication test confirming LDB frame integrity at rated data rate.

Units are packaged in anti-static ESD bags, placed in foam-lined cartons, and sealed with tamper-evident tape. A 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Test records and certificates of conformance are available upon request for quality-audited procurement processes.

Logistics operations are based in Xiamen, China, with established accounts with DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for all international shipments. For time-critical plant shutdowns, same-day dispatch is available for in-stock units confirmed before 14:00 CST. Sea freight consolidation is available for multi-unit orders where air freight cost is a constraint.
