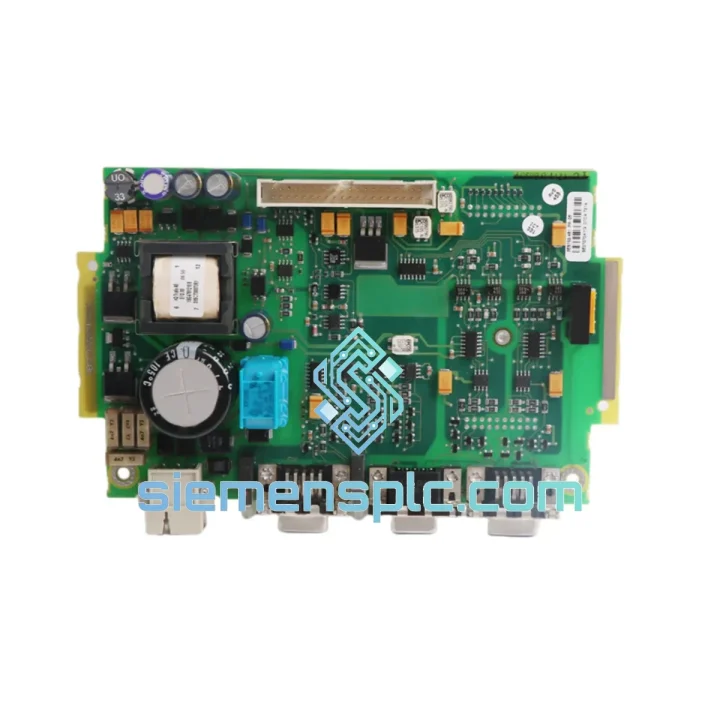

ABB DTCA721A 3EST92-481 DCS Interface Module – Advant Series

ABB DTCA721A 3EST92-481 — Backplane Communication Interface Module for Advant DCS Architectures

The ABB DTCA721A (cross-referenced as 3EST92-481) is a dedicated communication interface module engineered for deployment within ABB’s Advant Controller and AC 400 series distributed control system platforms. Its primary function is to manage deterministic data exchange across the internal backplane bus, bridging the controller CPU with downstream I/O subsystems and peer communication nodes. In high-availability process environments — where a single missed scan cycle can trigger a process trip — this module’s role in maintaining cycle-accurate data coherence is not incidental; it is structural.

Unlike generic fieldbus adapters, the DTCA721A is designed as a native backplane participant. It does not translate protocols at the application layer; it operates at the hardware arbitration level, ensuring that I/O data frames are transferred with fixed latency and without software-layer jitter. This architecture is particularly relevant in turbine control, reactor management, and compressor surge protection loops, where the control system’s deterministic response window is measured in single-digit milliseconds.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The DTCA721A’s internal architecture reflects ABB’s design philosophy for deterministic industrial communication: minimize software overhead, maximize hardware-enforced timing guarantees.

Backplane Bus Arbitration: The module implements a token-passing arbitration scheme on the internal backplane, ensuring that no single node can monopolize bus bandwidth. Each communication slot is time-bounded at the hardware level, preventing the latency spikes that occur in software-polled bus architectures. This is critical in multi-module racks where simultaneous I/O updates from analog, digital, and communication modules must be serialized without priority inversion.

Optical Isolation Architecture: Signal paths between the backplane interface and the module’s internal logic are optically isolated. This galvanic barrier suppresses common-mode noise — typically generated by large motor drives, welding equipment, or high-current switching — from propagating into the controller’s data bus. The isolation barrier is rated to withstand transient voltages consistent with IEC 61000-4-5 surge immunity requirements.

Watchdog and Fault Detection Logic: An onboard hardware watchdog monitors communication frame integrity on a cycle-by-cycle basis. If a frame is not acknowledged within the defined timeout window, the module asserts a fault flag on the backplane without waiting for software intervention. This hardware-first fault detection reduces the time between fault occurrence and controller awareness from hundreds of milliseconds (software polling) to sub-millisecond hardware assertion.

EMC Shielding: The module’s PCB layout follows ABB’s internal EMC design rules: ground planes are continuous beneath high-frequency signal traces, decoupling capacitors are placed at each power entry point, and the card-edge connector includes chassis ground pins to bond the module’s shield to the rack’s Faraday enclosure. This design approach is consistent with EN 55011 Class A industrial emission limits.

System Integration Benefits

• Deterministic Scan Cycle Participation: The DTCA721A participates in the controller’s fixed scan cycle as a hardware-timed bus node, not a software-polled peripheral. This guarantees that I/O data is available to the CPU at the start of each scan without variable software latency.
• Zero-Configuration Rack Insertion: Module identity and slot addressing are resolved automatically via the backplane’s hardware addressing scheme. No DIP switch configuration or firmware parameterization is required for basic operation, reducing commissioning time and eliminating address-conflict errors.
• Transparent Diagnostic Reporting: Fault states — including communication timeout, parity error, and power supply undervoltage — are mapped to addressable status registers accessible by the controller CPU. Engineering workstations running ABB’s control builder software can read these registers in real time, enabling predictive maintenance without physical inspection.
• Hot-Swap Compatibility: In supported rack configurations, the DTCA721A can be replaced under power without requiring a full controller shutdown. The backplane’s bus arbitration logic detects module removal and re-insertion, re-initializing the communication link within a defined recovery window.
• Redundancy Support: The module supports redundant communication topologies in ABB DCS architectures where dual-path backplane configurations are implemented. In the event of a primary path failure, the redundancy arbiter switches to the secondary path within the controller’s scan cycle, maintaining process continuity.
• Legacy Platform Lifecycle Extension: For plants operating ABB Advant or AC 400 series controllers beyond OEM end-of-life, the DTCA721A provides a direct hardware replacement path without requiring controller migration or re-engineering of the I/O subsystem.
• Reduced MTTR in Unplanned Outages: Stocked inventory with same-day dispatch capability directly reduces mean time to repair. In process industries where unplanned downtime costs exceed USD 10,000 per hour, the availability of a verified replacement module is a quantifiable risk mitigation measure.
• Cross-Reference Procurement Accuracy: The dual part number (DTCA721A / 3EST92-481) is maintained in our inventory system, ensuring that procurement teams sourcing by either reference number receive the correct module without substitution risk.

Quality Assurance & Global Logistics

Every DTCA721A unit dispatched from our Xiamen, China facility undergoes a structured verification process before packaging:

• Visual Inspection: PCB surface, card-edge connector pins, and housing are examined for physical damage, oxidation, counterfeit indicators, and label authenticity. ABB’s holographic serial labels are verified against known-good references.
• Functional Power-On Test: Where test bench infrastructure is available, modules are powered via a compatible ABB rack and communication handshake is verified against a reference controller node.
• ESD-Safe Packaging: Units are sealed in anti-static bags, placed in foam-lined cartons, and labeled with handling instructions compliant with ANSI/ESD S20.20.
• Export Documentation: Commercial invoice, packing list, and certificate of origin are prepared for all international shipments. HS code classification and customs value declaration are handled by our logistics team.
• Shipping Partners: DHL Express, FedEx International Priority, and UPS Worldwide Expedited are used for time-critical shipments. Standard freight options are available for volume orders. Transit time from Xiamen to major industrial hubs: Europe 3–5 days, North America 4–6 days, Southeast Asia 2–3 days.
• 12-Month Warranty: All units carry a 12-month replacement warranty from the date of dispatch. DOA (dead on arrival) claims are processed within 48 hours of receipt confirmation.
