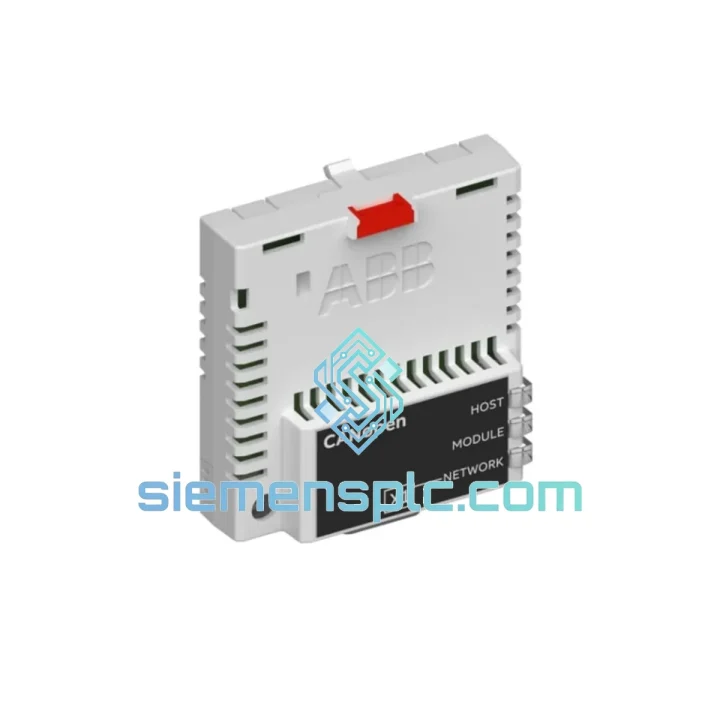

ABB FCAN-01 Fieldbus Adapter Module – CANopen DS402

ABB FCAN-01 CANopen Fieldbus Adapter: Deterministic Drive Integration for ACS-Series Variable Frequency Drives

The ABB FCAN-01 is a dedicated CANopen fieldbus adapter engineered for direct installation into the option slot of ABB ACS-series variable frequency drives. It implements the CANopen communication profile CiA DS301 v4.02 and the drive-specific device profile CiA DS402, providing a standards-compliant, deterministic interface between a CANopen master controller and the drive’s internal motion control ASIC. Unlike generic gateway solutions, the FCAN-01 operates as a native option module — powered entirely from the drive’s internal bus rail, with no external 24 V DC supply required.

In a closed-loop control architecture, the FCAN-01 occupies the fieldbus layer between the supervisory PLC and the drive’s torque/speed regulation core. The module translates CANopen Process Data Objects (PDOs) into ABB’s internal fieldbus parameter words in real time, with a minimum PDO cycle time of 1 ms at 1 Mbps bus speed. This latency figure is deterministic and bounded — a critical requirement for multi-axis synchronisation in packaging, textile, and conveyor applications where inter-axis phase error must remain below ±0.5°.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The FCAN-01 is built around a dedicated CAN controller IC interfaced to a microprocessor that handles the CANopen protocol stack independently of the drive’s main CPU. This dual-processor architecture ensures that fieldbus communication overhead does not compete with the drive’s real-time PWM generation and flux vector calculation cycles — a design constraint that single-CPU fieldbus implementations frequently violate.

Galvanic Isolation: The CAN physical layer is galvanically isolated from the drive’s internal logic bus via a DC/DC converter and digital isolators rated at ≥2.5 kV RMS. This isolation barrier prevents ground loop currents — common in large motor cabinets where PE potential differences between drive chassis and PLC cabinet can reach 50–100 V transient — from corrupting the CAN differential signal pair. The ISO 11898-2 transceiver maintains a common-mode voltage tolerance of −7 V to +12 V, providing additional margin against bus-level disturbances.

EMC Design: The module PCB uses a four-layer stackup with dedicated ground planes separating the CAN transceiver layer from the digital logic layer. Ferrite beads are placed on the CAN_H and CAN_L lines at the D-Sub connector entry point, attenuating high-frequency common-mode noise above 25 MHz. The module housing is conductive and bonds to the drive’s option slot frame, providing a continuous shielding enclosure that meets EN 61800-3 Category C2 EMC requirements when installed in a properly earthed cabinet.

Watchdog and Fault Arbitration: An independent hardware watchdog monitors the CANopen protocol stack. If the stack fails to service the watchdog within a configurable timeout (default: 500 ms), the module asserts a fault signal to the drive’s control board, triggering a configurable drive response (coast stop, ramp stop, or fault). This mechanism prevents the drive from continuing to run under an undetected fieldbus failure — a requirement under IEC 61508 SIL 1 partial safety architectures.

Object Dictionary Architecture: The FCAN-01 exposes ABB drive parameters as CANopen objects in the manufacturer-specific profile area (index 0x2000–0x5FFF). Each drive parameter group maps to a sub-index array, allowing SDO-based parameter read/write without interrupting ongoing PDO traffic. The object dictionary is stored in non-volatile flash on the module, ensuring consistent mapping across power cycles without re-commissioning.

System Integration Benefits

• Plug-in installation, zero panel wiring: The FCAN-01 inserts directly into the drive option slot with a single connector. No terminal blocks, no intermediate relay boards, and no additional DIN rail space are consumed. Installation time is under 5 minutes per drive axis.
• Deterministic real-time response: PDO exchange at 1 ms cycle time provides bounded latency for closed-loop speed and torque commands. This is measurably superior to Modbus RTU (typical 5–20 ms per transaction) and eliminates the jitter associated with polled serial protocols.
• Full DS402 motion profile support: Velocity Mode, Profile Velocity Mode, Profile Position Mode, and Homing Mode are natively supported. PLC application code complexity is reduced because the drive handles trajectory interpolation internally, rather than requiring the PLC to generate step-by-step position commands.
• Transparent parameter access via SDO: All drive parameters remain accessible for read/write over CANopen SDO during normal operation. This enables online parameter adjustment — for example, changing acceleration ramp times or PID gains — without stopping the drive or disconnecting from the fieldbus.
• Structured fault diagnostics: ABB drive fault codes are mapped to CANopen Emergency Objects (EMCY) and transmitted to the master PLC immediately upon fault detection. The error register (object 0x1001) and pre-defined error field (object 0x1003) provide a timestamped fault history accessible via SDO, reducing mean time to diagnose (MTTD) in production environments.
• Multi-master network compatibility: The module operates as a CANopen slave and is compatible with any DS301-compliant master, including Beckhoff TwinCAT, Siemens S7 with CP5611/CP5621, B&R Automation Studio, and Schneider Electric Modicon with CANopen master cards. No vendor-specific master software is required.
• Firmware field-upgradeable: Module firmware is updatable via ABB Drive Composer Pro over the drive’s USB service port. No module removal, no factory return, and no bus interruption during the update procedure. This ensures compatibility with future drive firmware releases without hardware replacement cost.
• Reduced system commissioning time: The NMT auto-start feature allows the module to transition from Pre-Operational to Operational state automatically upon receiving a valid CANopen master heartbeat, eliminating the need for explicit NMT Start commands in PLC startup sequences. Combined with LSS-free node addressing via drive parameters, commissioning a new axis takes under 15 minutes from module insertion to first PDO exchange.
