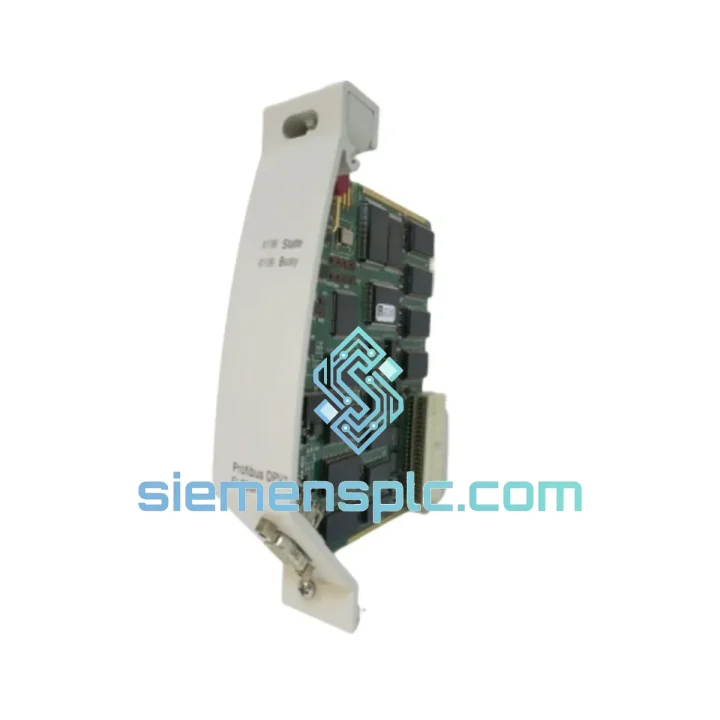

ABB FI830F 3BDH000032R Fieldbus Interface Module

ABB FI830F 3BDH000032R — Stop the Bleed: Every Hour of DCS Downtime Costs You More Than This Module

Your AC800M controller is down. The fieldbus segment is silent. Production is hemorrhaging money by the minute. You don’t need a sales pitch — you need a module on a plane tonight. The ABB FI830F (3BDH000032R) is in stock at our Xiamen warehouse right now. We’ve shipped this exact part to refineries in the Middle East, chemical plants in Southeast Asia, and power stations in Europe — all on emergency timelines. We know what’s at stake.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on AC800M systems teach you the same lessons the hard way. Here’s what actually matters when you’re swapping an FI830F under pressure:

Common Failure Signatures:

• All DP slaves go offline simultaneously — classic FI830F hardware fault, not a cable issue. Check the module’s LED status: a solid red FAULT LED with no BUS activity confirms the interface chip has failed, not the fieldbus segment itself.
• Intermittent slave dropouts at high baud rates (6–12 Mbps) — often caused by internal oscillator drift on aging modules. Dropping to 1.5 Mbps temporarily confirms the diagnosis. Replace the module; recalibration is not field-serviceable.
• Control Builder M shows FI830F as “Unknown Module” — firmware version mismatch between the module and the PM8xx controller. The FI830F must run firmware compatible with your PM8xx revision. Check the compatibility matrix in ABB document 3BSE035980.
• Bus cycle time alarms in the application — a degraded FI830F will still communicate but with increased jitter. If your application logs show cycle time violations without network load changes, the module is the first suspect.

Replacement Procedure — Field Checklist:

• ☐ Export the current FI830F configuration from Control Builder M before pulling the module (File → Export Hardware Configuration). This saves the DP slave address map and GSD parameters.
• ☐ Note the physical slot position on the AC800M rack — the FI830F is slot-addressed. Inserting into a different slot will change the hardware address and break the application reference.
• ☐ Power down the controller rack before swapping. Hot-swap is not supported on the FI830F — unlike S800 I/O modules, the CEX backplane does not support live insertion for this module type.
• ☐ After insertion, verify the module firmware version via Control Builder M → Hardware → Module Properties. If the firmware is older than your application requires, upload the correct firmware file before going online.
• ☐ Re-download the hardware configuration. The FI830F will re-initialize the PROFIBUS segment and poll all configured slave addresses. Allow 30–60 seconds for full segment recovery before declaring success.
• ☐ Check the PROFIBUS termination resistors on both ends of the segment. A failed module swap is often blamed on the new hardware when the real culprit is a termination resistor that was disturbed during the physical swap.

Configuration Notes:

• The FI830F does not use DIP switches for addressing — all configuration is software-defined via Control Builder M. There are no hardware jumpers to set.
• If replacing a module with a different firmware revision, re-validate your DP slave GSD files. Some slave devices require specific DP master firmware levels for V1/V2 acyclic services.
• For redundant PROFIBUS configurations (dual FI830F), ensure both modules carry identical firmware. A firmware mismatch between primary and standby will prevent automatic switchover.

Reliability in Harsh Conditions

The FI830F was engineered for process industry environments — not office automation. ABB designed this module to operate continuously in conditions that would kill consumer-grade electronics within weeks.

The module’s conformal-coated PCB provides protection against humidity, condensation, and airborne contaminants common in chemical and petrochemical environments. Operating at sustained 55°C ambient — the kind of heat inside a poorly ventilated marshalling cabinet in a Middle Eastern summer — is within spec, not an edge case. Vibration compliance to IEC 60068-2-6 means the module handles the mechanical stress of compressor rooms and pump stations without connector fatigue or solder joint cracking over time.

Every unit we ship from Xiamen has been stored in climate-controlled conditions with anti-static packaging. We do not pull modules from decommissioned equipment and rebox them. What you receive is what the manufacturer shipped — with our inspection layer added on top. If a module doesn’t pass our bench power-on and communication test, it doesn’t leave our warehouse. That’s not a marketing claim; it’s the only way we stay in business with B2B buyers who come back for the next emergency.

Global Express Logistics

Our Xiamen warehouse is positioned specifically for international air freight efficiency. Xiamen Gaoqi International Airport (XMN) has direct cargo connections to DHL and FedEx regional hubs, which means your module moves faster than it would from inland Chinese cities.

Standard Emergency Shipment Timeline:

• Order confirmed before 14:00 CST → same-day dispatch via DHL Express or FedEx International Priority
• DHL Express transit times: Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | Americas 3–5 days
• FedEx International Priority: comparable transit, used when DHL capacity is constrained on specific routes
• Documentation included as standard: commercial invoice, packing list, customs declaration (HS code 8537.10), and our inspection report
• Tracking: AWB number sent within 2 hours of dispatch — no chasing required
• Customs clearance support: we pre-classify all shipments and can provide additional documentation (CoC, datasheet, end-use declaration) to prevent customs holds

For plant shutdowns or turnaround projects requiring multiple modules, contact us before placing the order. We can consolidate shipments, pre-stage inventory, and coordinate delivery timing with your site logistics team.

Contact Information

📧 Email: [email protected]
📱 WhatsApp: +86 18359268345
🌐 Web: siemensplc.com

© 2026 siemensplc.com. All rights reserved. ABB® and AC800M® are registered trademarks of ABB Ltd. Product references are used for identification and compatibility purposes only.
