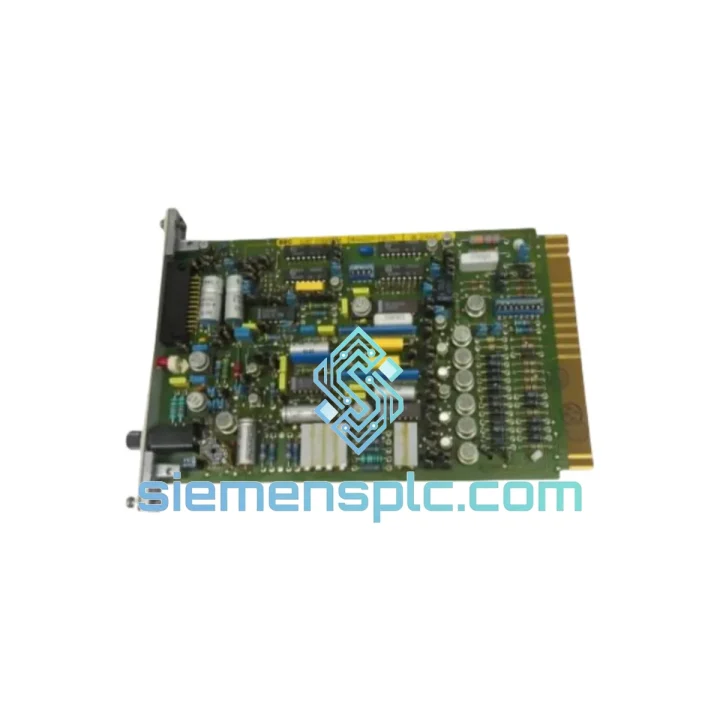

ABB HE667102-318 Transducer Module

ABB HE667102-318 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Every minute your line is down, you’re bleeding money. A failed angle measure transducer in an ABB MOD 300 or AC 450 system doesn’t just halt one loop — it can cascade into a full process shutdown. The ABB HE667102-318 is a precision Angle Measure Transducer Module purpose-built for ABB’s Advant DCS architecture, and we keep it on the shelf precisely because you can’t afford to wait 6 weeks for a factory order. We ship from Xiamen within 24 hours of order confirmation. That’s the difference between a shift delay and a week-long outage.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of ABB Advant field replacements, here are the failure patterns and swap pitfalls that actually matter on the floor:

Common Failure Signatures for HE667102-318:

• Erratic or frozen angle feedback: The most frequent symptom. The DCS historian shows a flat line or oscillating value that doesn’t track the physical shaft. Nine times out of ten, the resolver excitation circuit on the module has degraded — not the resolver itself. Swap the module before condemning the field device.
• Fault code F0023 / F0031 on AC 450 controller: These codes point to a transducer signal out-of-range or loss-of-signal condition. Cross-check with the ABB AC 450 fault log. If the field wiring checks out (shield continuity, no ground loops), the HE667102-318 is the prime suspect.
• Intermittent dropouts during high-vibration events: The card-edge connector on aging units develops micro-fretting corrosion. Clean the subrack slot contacts with isopropyl alcohol before inserting the replacement — don’t skip this step.
• Module LED status: On power-up, the green RUN LED should illuminate within 3 seconds. A flashing red FAULT LED after insertion indicates a firmware mismatch or incorrect slot addressing — see below.

Replacement Procedure — Critical Configuration Steps:

• Step 1 — Record the slot address: Before pulling the failed module, note the physical slot number in the subrack. The HE667102-318 uses hardware slot addressing; the AC 450 controller maps I/O by physical position. Inserting into the wrong slot will cause an immediate configuration mismatch alarm.
• Step 2 — Check the DIP switch settings: The HE667102-318 carries a small DIP switch bank on the PCB edge (visible when the module is partially withdrawn). Photograph the switch positions on the failed unit before removal. The replacement must be set identically — these switches configure the resolver excitation frequency and signal scaling. Factory default is not always correct for your application.
• Step 3 — Firmware revision matching: If your AC 450 system is running firmware below Rev. 4.x, verify that the -318 revision suffix is compatible. The -317 and -318 differ in firmware handshake protocol. Mixing revisions in the same subrack is possible but requires a controller configuration reload. Confirm with your ABB system documentation or contact us — we can cross-check revision compatibility before shipment.
• Step 4 — Power cycle sequence: After insertion, perform a controlled power cycle on the subrack — do not hot-swap unless your system documentation explicitly permits it for this module type. The AC 450 controller requires a cold restart to re-enumerate the transducer module on the Advant bus.
• Step 5 — Verify feedback loop: After restart, command a known angular position from the DCS and confirm the HE667102-318 feedback value matches within ±0.1° of the reference. If deviation exceeds this, re-check DIP switch scaling settings before assuming a faulty replacement.

Reliability in Harsh Conditions

The ABB HE667102-318 was engineered for environments that would destroy consumer-grade electronics. The module’s conformal-coated PCB resists condensation and airborne contaminants common in pulp mills, offshore platforms, and chemical plants. Vibration tolerance is validated to IEC 60068-2-6 standards — the card-edge connector and internal solder joints are designed to withstand continuous mechanical stress from rotating machinery nearby.

Thermal cycling is a non-issue within the rated 0–55°C envelope. The onboard resolver excitation circuit maintains signal stability across the full temperature range without recalibration. In high-humidity environments (up to 95% RH non-condensing), the conformal coating prevents the creepage failures that plague uncoated alternatives. Units supplied by siemensplc.com are inspected for coating integrity before dispatch — we reject any unit showing delamination or flux residue that could compromise long-term reliability.

For installations in Zone 2 hazardous areas or with elevated EMI exposure (variable frequency drives, large motor starters in the same panel), ensure the cable shield is terminated at one end only (controller end) per ABB wiring guidelines. Improper shielding is the single most common cause of premature transducer module failure in the field — and it’s entirely preventable.

Global Express Logistics

Our Xiamen warehouse operates a same-day cut-off at 16:00 CST. Orders confirmed before that window ship the same business day via DHL Express or FedEx International Priority — your choice at checkout. Typical transit times:

• Southeast Asia (SG, MY, TH, VN): 2–3 business days
• Middle East (AE, SA, QA): 3–4 business days
• Europe (DE, NL, GB, FR): 3–5 business days
• North America (US, CA): 4–5 business days
• Australia / New Zealand: 3–4 business days

Every shipment includes a commercial invoice, packing list, and Certificate of Origin — all pre-prepared to clear customs without delay. For orders requiring an ATA Carnet, CITES documentation, or specific HS code declarations, contact us 24 hours before shipment and we’ll have the paperwork ready. We’ve shipped to 60+ countries; customs clearance delays caused by our documentation are essentially zero.

Tracking numbers are issued within 2 hours of dispatch and sent directly to your registered email. For urgent shipments, our logistics team monitors the consignment through to delivery and proactively contacts the carrier if any delay is flagged in transit.
