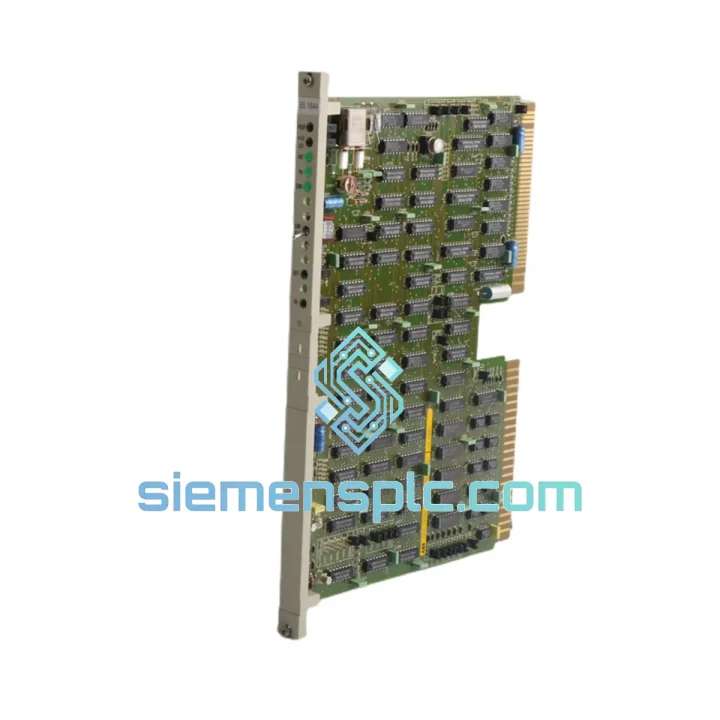

ABB HESG330184R1 ES1844C DCS PC Board

ABB HESG330184R1 ES1844C – Stop the Clock on Your Unplanned Shutdown

Every minute your DCS is down, the losses compound. A failed PC board in an ABB Advant or MOD 300 rack doesn’t just halt one loop — it can cascade into a full-plant trip, missed production targets, and regulatory exposure. The ABB HESG330184R1 ES1844C is a verified, shelf-ready replacement module. We ship from Xiamen within 24 hours of order confirmation. No waiting on OEM lead times. No sourcing delays. Just the part, on your bench, fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field experience with the ABB Advant / MOD 300 platform shows that the HESG330184R1 ES1844C fails in predictable patterns. Knowing them cuts your diagnostic time from hours to minutes.

Most Common Failure Modes:

• Intermittent I/O signal dropout — Often caused by capacitor degradation on the analog front-end. If you’re seeing sporadic 4–20 mA loop errors or AI channel faults in the DCS event log, this board is the first suspect before you chase field wiring.
• Backplane communication fault (ERR LED solid) — Indicates the board has lost handshake with the processor module. Before condemning the board, reseat the backplane connector and check for bent pins. If the fault persists after reseating, the board’s bus interface IC has likely failed.
• Power rail collapse under load — The onboard DC/DC converter can fail after years of thermal cycling. Symptom: board powers up briefly then drops offline. Measure the secondary rail at the test points; if it’s sagging below spec, the board needs replacement, not repair.
• Firmware mismatch after rack reconfiguration — If this board was moved from a different rack or a spare shelf, verify the firmware revision matches the rest of the station. Mismatched revisions cause silent data corruption on shared memory segments.

Step-by-Step Replacement Procedure:

1. Place the affected control loop in manual mode at the DCS operator station. Confirm with the field operator that the process is stable before proceeding.
2. Document the current board address — check the rotary address switch or DIP switch bank on the board face. Photograph it before removal. The replacement board must be set to the identical address.
3. Power down the rack slot if your cabinet supports per-slot isolation. If not, coordinate a controlled shutdown of the affected station.
4. Discharge static by touching the cabinet frame before handling the PCB. Use a grounded wrist strap throughout.
5. Extract the board using the ejector levers — do not pull by the edge connector. Inspect the backplane socket for debris or corrosion before inserting the replacement.
6. Set the address switches on the HESG330184R1 ES1844C replacement to match the documented configuration. This is the single most common commissioning error — a wrong address causes the processor to ignore the module entirely.
7. Insert the board firmly until both ejector levers click. Power up the slot and observe the status LEDs: RUN green within 30 seconds indicates successful initialization.
8. Verify all I/O channels in the DCS engineering station. Return the loop to automatic mode only after confirming signal integrity across all channels.

Configuration Notes: The ES1844C revision carries specific firmware that must align with the station processor revision. If your MOD 300 station is running an older processor firmware, confirm compatibility before installation. Mixing ES1844C with ES1844A/B hardware in the same rack is not recommended without ABB revision compatibility confirmation.

Reliability in Harsh Conditions

The HESG330184R1 ES1844C was designed for environments that would destroy consumer-grade electronics in weeks. ABB’s industrial PCB manufacturing process for the Advant / MOD 300 platform includes conformal coating on critical circuit areas, providing a barrier against moisture ingress, condensation, and airborne contaminants common in chemical plants and coastal facilities.

The board’s mechanical design accounts for continuous vibration exposure — a reality in compressor houses, pump stations, and rotating equipment control rooms. The through-hole and press-fit connector technology used on this board maintains electrical continuity under vibration profiles that would crack surface-mount solder joints on lesser designs.

Thermal performance is engineered for the long haul. The onboard components are rated for sustained operation at elevated ambient temperatures typical of enclosed DCS cabinets with marginal cooling. Thermal cycling tests conducted during ABB’s qualification process simulate years of daily startup/shutdown cycles without parametric drift.

Units supplied from our Xiamen warehouse are stored in climate-controlled conditions with ESD protection. Each board is individually bagged in anti-static packaging with desiccant, ensuring it arrives in the same condition it left the factory — regardless of how long it spent on the shelf.
