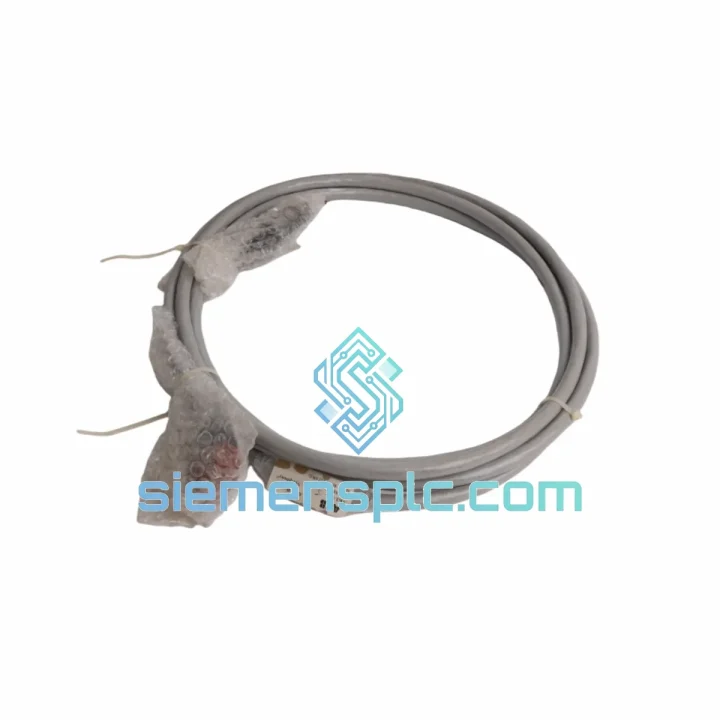

ABB NKLS01-15 Loop Interface Cable

ABB NKLS01-15 Loop Interface Cable — Stop the Clock on Your Downtime, Ship Today

Every hour a DCS loop goes dark costs money. When an ABB Advant or MOD 300 system loses its loop interface cable — whether from connector fatigue, sheath abrasion, or a botched maintenance pull — the pressure to restore communication is immediate. The NKLS01-15 is not a shelf curiosity; it is the physical backbone of your controller-to-field loop, and when it fails, nothing downstream talks. siemensplc.com maintains verified stock of the ABB NKLS01-15 specifically to serve engineers who cannot wait two weeks for a factory order. We ship from Xiamen within 24 hours of payment confirmation, with DHL and FedEx express options reaching most global destinations in 3–5 business days.

This is not a generic cable. The NKLS01-15 is an OEM-specified loop interface cable engineered for ABB’s Advant OCS and MOD 300 DCS architectures. Its pin mapping, shielding topology, and connector termination are defined by ABB’s loop communication protocol — substituting an off-spec cable risks signal degradation, spurious alarms, or complete loop dropout. If your system is down, use the right part the first time.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The NKLS01-15 sits at the physical layer of your loop communication stack. Before you pull the cable, rule out the obvious: check that the fault is not a termination unit (NKTU01/02) or a controller module issue. A loop communication fault that clears when you wiggle the cable at either end is almost always the NKLS01-15 — connector fatigue at the controller backplane or termination unit header is the single most common failure mode on systems older than five years.

Step-by-step replacement procedure:

1. Isolate the loop. In ABB Control Builder or your MOD 300 operator station, force the affected loop to manual and acknowledge any active alarms. Do not pull the cable hot without confirming the loop is in a safe state — on live process loops this can trigger spurious outputs.
2. Label both ends before disconnecting. The NKLS01-15 is directional — the controller end and the termination unit end are not interchangeable. Mark them with tape before removal. Reversing the cable is a common mistake that produces a clean-looking installation that simply does not communicate.
3. Inspect the mating connectors on the backplane and termination unit. Bent pins or oxidized contacts on the fixed hardware will destroy a new cable within weeks. Clean with isopropyl alcohol and a fine brush before seating the replacement.
4. Seat the replacement firmly. The OEM connector requires positive engagement — you should feel a tactile click or resistance increase at full insertion. A half-seated connector is electrically unreliable under vibration.
5. Restore the loop and monitor. Bring the loop back to automatic and watch for communication quality indicators in your DCS historian for the first 30 minutes. Intermittent faults that appear only under load suggest a marginal connector seat or a damaged mating header.

Common fault codes associated with NKLS01-15 failure:

• MOD 300: Loop Communication Fault (LCF), Controller Offline, I/O Module Not Responding
• Advant OCS: COMM ERROR on loop status display, module status LED flashing amber, loss of field values on affected loop
• General: Intermittent signal dropout correlating with ambient temperature changes (thermal expansion stressing a fatigued connector)

Configuration notes: The NKLS01-15 is a passive cable — there are no DIP switches, firmware, or addressing to configure. However, confirm the cable revision matches your system’s loop interface specification. If your Advant system was upgraded from an early MOD 300 baseline, verify the loop interface standard in your system engineering documentation before ordering.

Reliability in Harsh Conditions

Control room environments are rarely as benign as the drawings suggest. The NKLS01-15 is built to ABB’s industrial cable specification, which means it is rated for the real world: continuous vibration from adjacent rotating equipment, ambient temperatures that swing 40 °C between summer and winter shutdowns, and humidity levels in coastal and tropical facilities that would corrode lesser cable assemblies within a season.

The shielded construction is not cosmetic. In facilities with variable-frequency drives, large motor starters, or high-current bus bars running parallel to cable trays, unshielded loop cables pick up enough EMI to corrupt communication frames and generate false alarms. The NKLS01-15’s shield, properly grounded at one end per ABB’s installation guidelines, provides measurable noise rejection that keeps your loop data clean even in electrically noisy environments.

The PVC outer sheath is rated for continuous flexing in cable management systems — relevant in installations where the cable must route through a hinged cabinet door or a moving cable carrier. Sheath cracking from repeated flexing is a known failure mode on aged cables; if your system is more than seven years old and has never had the loop cables replaced, treat them as a scheduled maintenance item rather than waiting for a fault.

Global Express Logistics

siemensplc.com operates from Xiamen, Fujian — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and the Port of Xiamen. For urgent orders, we use DHL Express and FedEx International Priority as our primary carriers, both of which offer door-to-door tracking and customs clearance support.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Germany, Netherlands, UK): 4–5 business days
• North America (USA, Canada): 4–6 business days
• South America and Africa: 5–8 business days (varies by destination)

Every shipment includes a commercial invoice, packing list, and certificate of origin. For destinations requiring import permits or specific HS code documentation, our logistics team prepares the paperwork in advance to prevent customs delays. All export declarations are processed through Xiamen Customs in full compliance with Chinese export regulations — no grey-channel shipments, no misdeclared values.

For orders requiring sea freight (bulk cable orders or multi-item consolidated shipments), we offer LCL and FCL options through our freight forwarding partners at Xiamen Port. Contact us for a freight quote if your order volume justifies consolidation.
