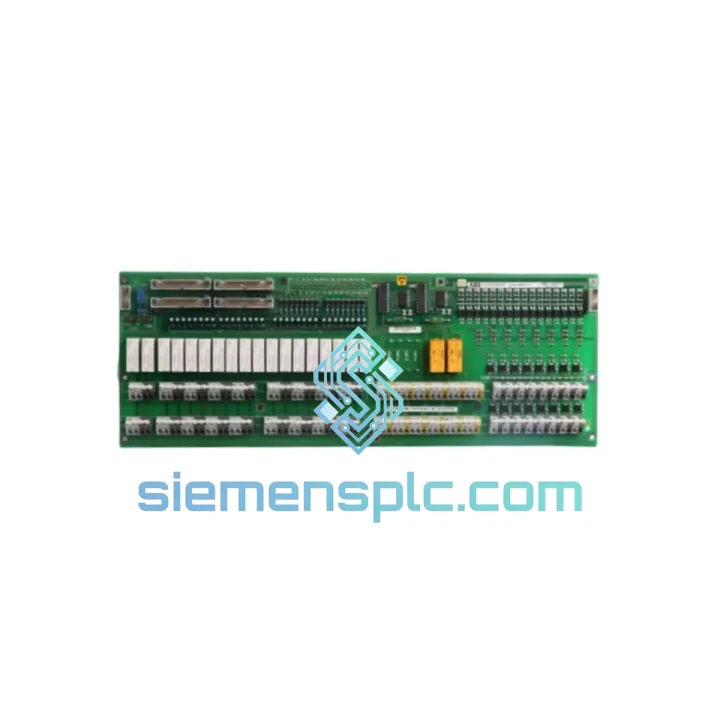

ABB HIEE305082R0001 Digital I/O Card – UNS0863A-P V1 Series

ABB HIEE305082R0001 UNS0863A-P V1 — Deterministic Digital I/O Processing in ABB AC800M DCS Architecture

The HIEE305082R0001, carrying the hardware reference UNS0863A-P V1, is a digital input/output card engineered for deployment within ABB’s AC800M Distributed Control System platform and its predecessor Advant Controller series. Its function within the control loop is unambiguous: it serves as the primary signal interface layer between field-level discrete devices — limit switches, solenoid valve feedback contacts, motor run/stop status relays, and digital actuator command outputs — and the controller’s process image table. Without a correctly functioning digital I/O card at this layer, the controller’s scan cycle operates on stale or absent field data, rendering closed-loop control impossible.

In process industries where the AC800M platform is deployed — power generation, hydrocarbon processing, pulp and paper, water treatment, and metals — the HIEE305082R0001 handles the binary state acquisition and command distribution that underpins every interlock, permissive, and sequence step in the control narrative. Each channel’s state is read into the controller’s I/O server at the configured scan rate, time-stamped, and made available to the application program running on the PM8xx CPU module. The module’s position in the S800 I/O cluster means it communicates over the Modulebus or PROFIBUS DP fieldbus segment depending on the cluster interface card (CI801/CI810/CI820/CI840) installed, with cycle times that support deterministic response within the controller’s task execution window.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The UNS0863A-P V1 board architecture reflects ABB’s design philosophy for the S800 I/O family: functional isolation between the field-side signal conditioning circuit and the Modulebus communication logic is achieved through an optocoupler barrier on each channel. This galvanic separation prevents ground loop currents and transient voltage spikes originating from field wiring — common in environments with large inductive loads such as motor contactors and solenoid valves — from propagating into the module’s logic circuitry or corrupting the Modulebus data frame.

On the input side, the signal conditioning stage filters contact bounce and suppresses high-frequency noise through RC networks before the signal reaches the optocoupler input. The threshold detection circuit is calibrated to the IEC 61131-2 Type 1 or Type 3 input specification, ensuring consistent logic-level discrimination across the full operating temperature range without requiring field-side signal conditioning hardware. This is particularly relevant in installations where the field device wiring runs exceed 50 metres, where capacitive loading and induced noise from adjacent power cables would otherwise cause false triggering on unfiltered inputs.

On the output side, the drive circuit is designed to handle the inrush current associated with relay coil energisation and small solenoid loads without requiring external current-limiting resistors in standard configurations. The output stage incorporates a flyback suppression diode across the load terminals to clamp the inductive kick voltage generated when an inductive load is de-energised — a protection mechanism that extends the service life of the output switching element and prevents voltage transients from coupling into adjacent signal channels.

The module’s Modulebus interface logic handles the cyclic data exchange with the cluster interface card using a fixed-length data frame. The frame structure separates input image data (field state read-back) from output image data (controller command word), with a dedicated status byte that reports module health, channel fault flags, and communication error counters back to the AC800M’s I/O server. This status byte is polled by the controller’s diagnostic task and surfaced in ABB’s Control Builder engineering tool, enabling maintenance personnel to identify a failing channel without physical access to the cabinet.

The PCB layout follows ABB’s internal EMC design rules for the S800 family: the field-side and logic-side ground planes are separated by a physical slot in the PCB substrate at the optocoupler boundary, minimising capacitive coupling across the isolation barrier. Decoupling capacitors are placed at each power supply pin of the logic ICs to suppress switching noise on the internal 5 V and 3.3 V rails. The module connector is keyed to prevent incorrect insertion into incompatible rack slots, and the module’s EEPROM stores the hardware revision and calibration data read by the cluster interface during initialisation.

System Integration Benefits

• Deterministic scan cycle participation: The HIEE305082R0001 updates its process image within the AC800M’s configured I/O scan period, ensuring that the application program always operates on current field data without introducing variable latency into the control loop execution.
• Transparent channel-level diagnostics: Each channel’s fault status is individually reported to the AC800M I/O server and accessible in Control Builder’s online diagnostic view, allowing maintenance engineers to isolate a wiring fault or failed field device to a specific terminal without loop-by-loop signal tracing.
• Hot-swap capability in supported configurations: In AC800M installations with redundant cluster interface cards and appropriate rack hardware, the module can be replaced under power without requiring a controller restart, reducing planned maintenance windows to the physical swap time.
• Seamless integration with ABB 800xA System: The module’s data is natively consumed by ABB’s 800xA Distributed Control and Safety System, with no additional driver configuration required. Signal tags are automatically populated in the 800xA plant explorer upon module detection by the I/O server.
• Consistent behaviour across firmware revisions: The UNS0863A-P V1 hardware revision maintains backward compatibility with AC800M firmware versions spanning multiple generations, reducing the risk of incompatibility when replacing a module in an established installation without a concurrent firmware upgrade.
• Reduced wiring complexity via termination unit architecture: Field wiring connects to the TB820V2 or TB840A termination unit, which is permanently installed in the cabinet. The HIEE305082R0001 plugs into the termination unit without disturbing field wiring, eliminating the risk of wiring errors during module replacement.
• Interlock and permissive logic support: The module’s input channels provide the discrete state data consumed by safety interlock and permissive logic blocks in the AC800M application program, supporting SIL-rated safety function implementation when used within a validated safety instrumented system architecture.
• Scalable I/O expansion: Multiple HIEE305082R0001 modules can be installed in the same S800 I/O cluster, allowing the digital I/O count to be scaled incrementally as the process requires without changes to the controller hardware or communication infrastructure.

Quality Assurance & Global Logistics

Every HIEE305082R0001 unit supplied by siemensplc.com is sourced through verified supply channels and subjected to a structured pre-shipment verification process. Visual inspection covers board-level examination for physical damage, component displacement, corrosion on connector pins, and label integrity against ABB’s part numbering and revision marking conventions. Functional verification is performed on a bench test rig replicating the S800 Modulebus environment, confirming that the module initialises correctly, reports the expected hardware revision to the cluster interface, and passes channel-level input/output continuity checks.

Units are packed in anti-static shielding bags, placed in foam-lined cartons, and outer-packed in double-wall corrugated export cartons rated for international air and sea freight handling. Shipments originate from our warehouse in Xiamen, China — a major international logistics hub with direct air freight connections to Frankfurt, Amsterdam, Dubai, Singapore, Los Angeles, and Chicago. Standard international delivery to Europe and North America is achieved within 5–8 business days via DHL Express or FedEx International Priority. Expedited 2–3 business day delivery is available for urgent plant shutdown requirements. All shipments include full tracking, commercial invoice, packing list, and country of origin documentation. A 12-month warranty from the date of shipment covers functional defects under normal operating conditions.
