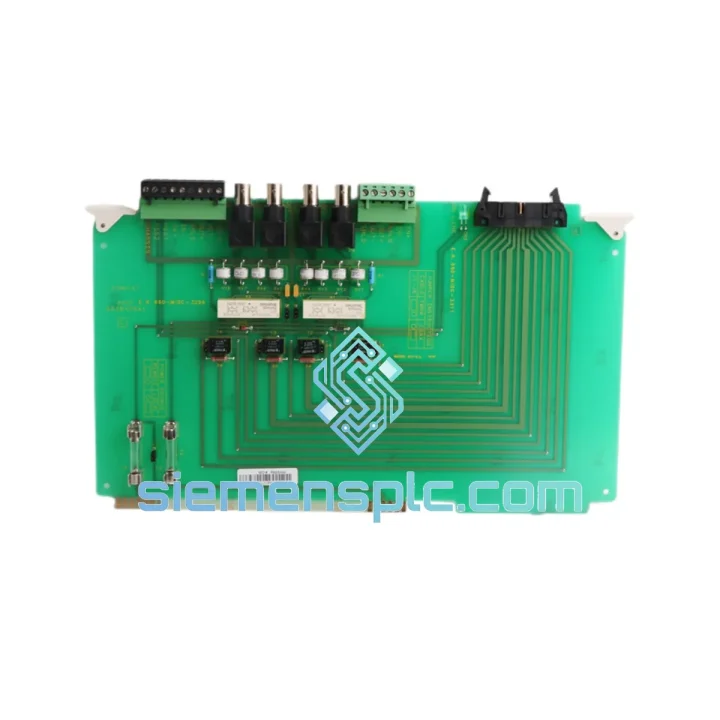

ABB IIMCL01 DCS Communication Module – Advant Series

ABB IIMCL01 Multibus Communication Link Termination — Backplane Signal Integrity in Advant DCS Architectures

The ABB IIMCL01 is a dedicated Multibus Communication Link Termination module engineered for deployment within ABB’s Advant and MOD 300 distributed control system (DCS) platforms. Its primary function is to provide correctly matched impedance termination at the physical endpoints of the Multibus backplane communication segment. In high-speed parallel bus architectures, unterminated or improperly terminated signal lines generate reflections that corrupt data frames, trigger spurious interrupts in connected I/O modules, and degrade the deterministic timing guarantees that process control loops depend on. The IIMCL01 eliminates these failure modes by presenting a resistive load that matches the characteristic impedance of the Multibus transmission line, absorbing forward-traveling signal energy at the bus endpoint and preventing reflected waveforms from propagating back toward active drivers.

In practical terms, a single failed or missing IIMCL01 in an Advant backplane segment can manifest as intermittent communication faults across all modules sharing that bus segment — not just the slot adjacent to the termination position. This makes the IIMCL01 a high-criticality spare component despite its passive functional role. Process plants operating ABB Advant AC 450, AC 410, or MOD 300 controllers should maintain at least one verified spare IIMCL01 per backplane segment in their critical spare inventory.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The Multibus architecture used in ABB Advant systems is a synchronous parallel bus operating at fixed clock cycles, where all connected modules — I/O cards, communication interfaces, and controller backplane slots — share a common electrical medium. The IIMCL01 sits at the far end of this shared medium and performs three distinct hardware-level functions:

1. Transmission Line Termination: The Multibus backplane traces behave as transmission lines at the operating frequencies involved. Without a termination resistor network matched to the bus characteristic impedance (typically 50–120 Ω depending on trace geometry), signal edges reflect at the open endpoint. These reflections superimpose on subsequent data transitions, causing setup-time violations at receiving module inputs. The IIMCL01’s resistor network absorbs this energy, maintaining clean logic-level transitions across all bus slots.

2. EMC Boundary Clamping: The termination network also provides a defined DC bias path for bus lines, preventing floating logic states during bus idle periods. Floating lines are susceptible to capacitive coupling from adjacent power supply switching transients — a common EMC vulnerability in industrial cabinet environments where variable-frequency drives and contactors operate in close proximity to DCS backplanes. The IIMCL01 holds idle bus lines at a defined logic level, reducing susceptibility to externally induced noise spikes.

3. Bus Arbitration Stability: In multi-master Multibus configurations, bus arbitration relies on defined signal propagation delays to resolve simultaneous access requests. Reflections caused by missing termination alter the apparent propagation delay seen by arbitration logic, potentially causing two modules to simultaneously assert bus ownership — a condition that results in data corruption and may require a full backplane reset to clear. The IIMCL01 maintains the propagation delay characteristics assumed by the arbitration firmware.

The module’s passive design means it has no firmware, no configuration registers, and no active failure modes beyond physical damage or resistor degradation. Bench verification is straightforward: measure termination resistance across bus lines with the module extracted and compare against ABB’s documented impedance specification.

System Integration Benefits

• Deterministic Bus Timing Preserved: Correct termination maintains the signal propagation characteristics assumed by Advant controller firmware, ensuring I/O scan cycles complete within their allocated time windows without retries or timeout faults.
• Reduced Spurious I/O Faults: Eliminating bus reflections removes a common root cause of intermittent I/O module communication errors that are difficult to diagnose because they do not correlate with any single module failure.
• Zero Configuration Overhead: The IIMCL01 is a passive module requiring no firmware download, no address configuration, and no software commissioning — replacement is a direct mechanical swap with immediate effect.
• Extended Backplane Service Life: Proper termination reduces electrical stress on bus driver circuits in active modules. Sustained reflections force bus drivers to source or sink current into a mismatched load, accelerating thermal degradation of driver output stages.
• Diagnostic Transparency: With correct termination in place, communication fault diagnostics in the Advant engineering station accurately isolate faults to specific modules rather than reporting bus-wide errors that obscure the true failure location.
• Compatibility Across Advant Revisions: The IIMCL01 is mechanically and electrically compatible across multiple Advant backplane hardware revisions, simplifying spare parts standardization for plants operating mixed-vintage DCS hardware.
• Support for High-Density I/O Configurations: In fully populated backplanes with 16+ I/O modules per segment, bus loading is at its maximum. Correct termination is proportionally more critical in these configurations, as reflections interact with a larger number of active drivers and receivers.
• Facilitates Predictive Maintenance Programs: A known-good spare IIMCL01 enables rapid swap-and-test during scheduled maintenance windows, allowing engineers to rule out termination degradation as a contributing factor in recurring bus fault investigations without extended downtime.

Quality Assurance & Global Logistics

All ABB IIMCL01 modules supplied by siemensplc.com are sourced exclusively from verified industrial surplus inventories, authorized distribution channels, and decommissioned plant equipment — with full traceability documentation maintained for each unit. Incoming inspection includes visual examination for physical damage, label authenticity verification against ABB part number databases, and resistance measurement of the termination network to confirm it falls within the specified tolerance band.

Units supplied as Refurbished or Tested Used undergo functional bench testing on an Advant-compatible backplane test fixture prior to dispatch. Each unit ships in anti-static ESD shielding bags with moisture barrier packaging, suitable for air freight and sea freight transit conditions. A certificate of conformance and, where applicable, a functional test report are included with each shipment.

Logistics operations are based in Xiamen, China — a major export hub with direct access to international air freight services via Xiamen Gaoqi International Airport and sea freight via Xiamen Port. Standard dispatch lead time is 3–5 business days from order confirmation for in-stock units. Express air freight to Europe, North America, Southeast Asia, and the Middle East typically achieves door-to-door delivery within 5–10 business days. Full export documentation — commercial invoice, packing list, and certificate of origin — is provided for all international orders. DDP (Delivered Duty Paid) terms are available upon request for select destinations.

All units carry a 12-month warranty from the date of shipment. Warranty claims are handled directly by siemensplc.com with replacement dispatch within 5 business days of confirmed fault verification.
