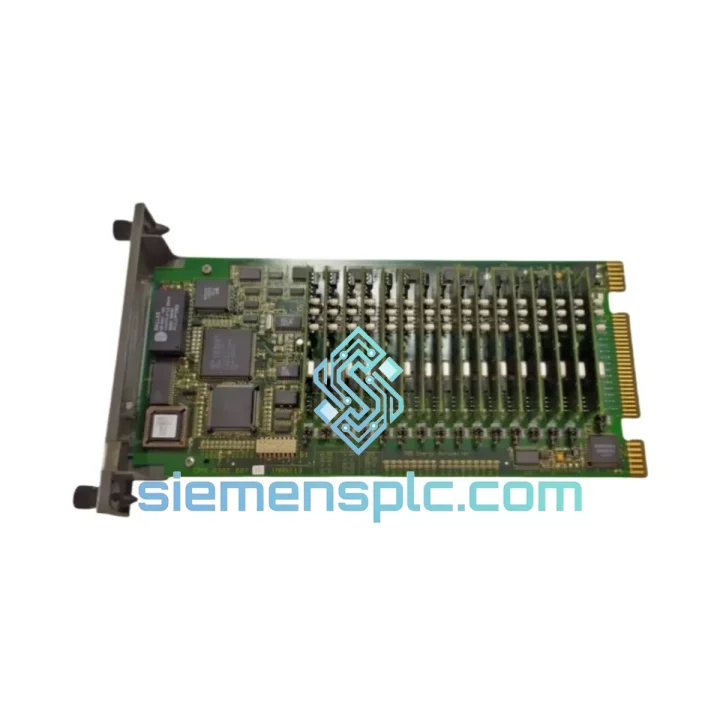

ABB IMASI13 Analog Input Module – AC800M S800 I/O

ABB IMASI13 – 13-Channel Analog Input Module: Signal Acquisition Architecture in AC800M Control Loops

The IMASI13 occupies a structurally critical position within ABB’s AC800M Distributed Control System. As the primary analog signal termination point between field instrumentation and the controller’s process image, it determines the fidelity, latency, and diagnostic transparency of every closed-loop control action downstream. Each of its 13 independent input channels accepts 4–20 mA current signals or 0–10 V voltage signals, with HART protocol overlay supported for in-situ device communication without additional multiplexers. The module connects to the AC800M PM8xx controller via the S800 ModuleBus — an optical serial bus that eliminates ground loop interference and provides deterministic scan-cycle timing regardless of electrical noise conditions on the plant floor.

In a typical process control loop — for example, a boiler drum level control circuit — the IMASI13 receives the 4–20 mA output from a differential pressure transmitter, converts it through a 16-bit ADC, and presents the engineering-unit value to the AC800M controller’s function block diagram within a single ModuleBus scan cycle. The controller then executes the PID algorithm and writes the output to the corresponding analog output module, completing the loop. The IMASI13’s per-channel open-circuit and short-circuit diagnostics are reported to the controller event log in real time, enabling operators to distinguish between a process deviation and a field wiring fault without leaving the control room.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The IMASI13’s internal architecture is built around a per-channel sigma-delta ADC front end, which provides inherent noise rejection through oversampling and digital decimation filtering. Unlike successive-approximation (SAR) ADC designs that sample instantaneously and are susceptible to high-frequency interference, the sigma-delta topology integrates the input signal over multiple clock cycles, effectively averaging out transient noise spikes common in industrial environments — variable-frequency drive (VFD) harmonics, relay switching transients, and high-voltage bus coupling.

Channel-to-channel galvanic isolation is implemented via optocoupler barriers on each input path. This architecture prevents a fault condition on one field loop — such as a ground fault or insulation breakdown — from propagating to adjacent channels or to the S800 ModuleBus backplane. The isolation barrier is rated to withstand common-mode voltages consistent with IEC 61131-2 requirements, protecting both the module and the AC800M controller from field-side electrical events.

The S800 ModuleBus interface uses optical fiber transmission between the I/O cluster and the AC800M controller, eliminating the electromagnetic coupling path that exists in copper-based fieldbus architectures. In environments with high electromagnetic interference (EMI) — such as motor control centers, arc furnace installations, or high-voltage switchgear rooms — this optical isolation is a functional requirement rather than a convenience feature. The ModuleBus protocol is deterministic: scan cycle timing is fixed and does not degrade under high I/O load, which is essential for closed-loop control applications where variable scan latency introduces phase shift into the control algorithm.

For redundant I/O configurations, two IMASI13 modules can be paired on a TB840A dual-redundant terminal base. The AC800M controller firmware manages automatic switchover between the primary and secondary module, with switchover time below one scan cycle. This architecture supports IEC 61511 SIL 2 loop integrity when combined with SIL-rated field devices and appropriate safety instrumented system (SIS) design practices.

System Integration Benefits

• Deterministic Scan Cycle Timing: The optical ModuleBus protocol delivers fixed-latency data transfer between the IMASI13 and the AC800M controller, eliminating the scan jitter that degrades PID tuning stability in copper-bus I/O architectures.
• Per-Channel Fault Diagnostics: Open-circuit, short-circuit, and out-of-range conditions are detected independently on each of the 13 channels and reported to the AC800M controller event log with timestamp and channel address, enabling root-cause isolation without field inspection.
• HART Pass-Through for Device Health Monitoring: HART 5/6 protocol overlay allows the AC800M to poll field transmitter diagnostic variables — sensor degradation, process variable status, device temperature — without interrupting the primary 4–20 mA control signal.
• Hot-Swap Module Replacement: The IMASI13 supports live module replacement under power when used with redundant TB840A terminal bases, enabling maintenance without process shutdown or loop inhibit procedures.
• High Channel Density Reduces Cabinet Footprint: 13 AI channels per module slot versus 8-channel alternatives reduces the number of module slots, terminal bases, and ModuleBus segments required for a given I/O count, directly reducing panel space and installed hardware cost.
• Free Mixing on ModuleBus Segments: The IMASI13 can coexist on the same ModuleBus segment with analog output, digital input, and digital output S800 modules, allowing I/O clusters to be configured to match the actual field signal mix without architectural constraints.
• Redundant I/O Architecture Support: Paired with TB840A terminal bases and AC800M redundant controller configurations, the IMASI13 supports fully redundant I/O loops for critical process measurements where single-point failure is not acceptable.
• IEC 61131-2 Compliance: Electrical immunity and environmental performance are verified to IEC 61131-2 standards, covering conducted and radiated EMC immunity, electrostatic discharge (ESD), electrical fast transient (EFT), and surge immunity — the full suite of disturbances present in industrial plant environments.
• Scalable to Large I/O Counts: Up to 12 S800 modules per ModuleBus segment, with multiple segments supported per AC800M controller, allows the IMASI13 to scale from small skid-mounted control panels to large distributed I/O architectures with hundreds of analog inputs.
• Backward Compatibility with Existing AC800M Installations: The IMASI13 is compatible with AC800M controller firmware v5.x and above, allowing it to be introduced into existing installations as a direct replacement or capacity expansion without controller firmware upgrades in most cases.

Quality Assurance & Global Logistics

Every IMASI13 unit supplied through siemensplc.com is sourced from verified ABB distribution channels. Prior to dispatch from our Xiamen, China facility, each module undergoes a structured incoming inspection protocol: visual examination of housing integrity and label authenticity (ABB part number, date code, hardware revision), connector pin inspection, and a functional power-on verification confirming LED status indication and ModuleBus communication readiness.

Packaging conforms to IEC 60068-2 transport vibration and shock requirements: each unit is sealed in an anti-static ESD bag and placed in a foam-lined corrugated carton with void fill. For international shipments, we provide a complete export documentation package — commercial invoice, packing list, and HS code 8537.10 classification — to facilitate customs clearance in major import markets including the EU, USA, Southeast Asia, and the Middle East.

Logistics partners include DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe and North America from our Xiamen warehouse. In-stock units ship within 1–2 business days of order confirmation. A 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Factory test certificates and CE declarations of conformity are available upon request for regulated industry procurement requirements.
