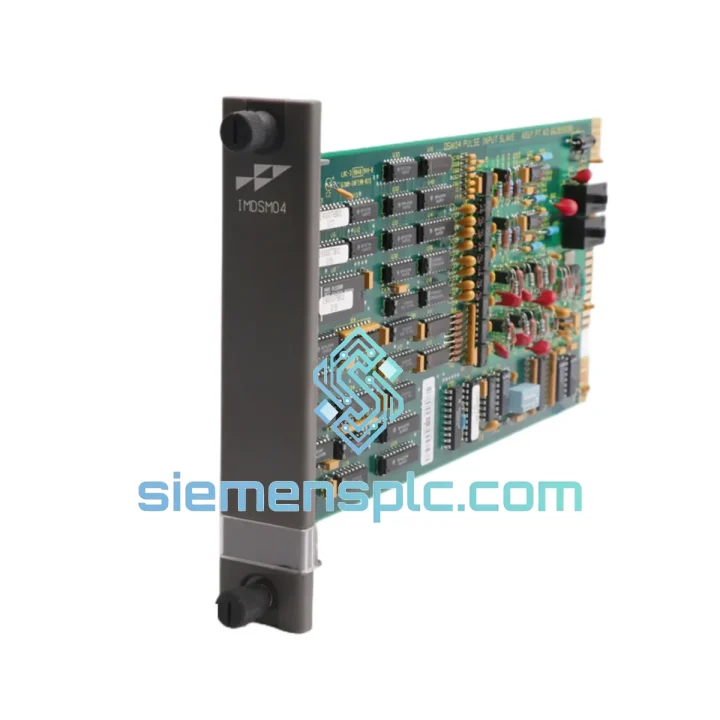

ABB IMDSM04 Pulse Input Slave Module

ABB IMDSM04 — Stop the Clock on Your Downtime. Ship Today.

Your AC800M DCS just threw a pulse input fault. The batch line is stopped. Every minute offline is money bleeding out of the process. The IMDSM04 is the single point of failure between your flow meters and your controller — and we have it on the shelf in Xiamen right now. No lead-time negotiation, no factory back-order queue. Place the order before 14:00 CST and it moves today.

We’ve handled emergency replacements for petrochemical shutdowns, power plant outages, and pharmaceutical batch failures. We know what a stopped line costs. That’s why we stock it, verify it, and ship it fast — so you can focus on the restart checklist, not the procurement chase.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping an IMDSM04 is straightforward if you follow the sequence. Skip a step and you’ll be chasing a ghost fault for an hour.

Common failure signatures before the module dies completely:

• Intermittent pulse count drift on one or two channels — often misdiagnosed as a field sensor issue. If swapping the sensor doesn’t fix it, the slave module’s input conditioning circuit is degrading.
• S800 bus communication error logged in AC800M event log (Event ID 0x4xxx range) pointing to a specific I/O station address — isolate the station, check the IMDSM04 LED status first.
• Channel freeze: one channel locks at last-known value while others update normally. This is a hardware fault on the IMDSM04 input ASIC, not a wiring issue.
• Erratic frequency readings at high input rates (>5 kHz) — check firmware version. Early IMDSM04 firmware revisions had a known high-frequency counter rollover bug. Confirm firmware against ABB Tech Note 3BSE036352R0001.

Replacement procedure (field-tested sequence):

1. In ABB Control Builder M, note the current I/O station address and channel configuration for the IMDSM04 before powering down. Screenshot or export the hardware configuration.
2. Power down the I/O station — do not hot-swap unless your station explicitly supports it. The IMDSM04 is not rated for live insertion on standard S800 stations.
3. Disconnect field wiring from the terminal block. Label each wire before removal — pulse sensor polarity matters.
4. Release the module locking tab and slide the IMDSM04 out of the station slot.
5. Insert the replacement unit. The S800 slave bus uses auto-addressing based on physical slot position — no DIP switch or manual address setting required on the IMDSM04 itself. Slot position = address. Do not move it to a different slot unless you update the hardware configuration in Control Builder.
6. Reconnect field wiring. Verify NPN/PNP sensor type matches the channel configuration in Control Builder — incorrect input type will give you a flat zero reading, not an error.
7. Power up the station. The IMDSM04 green RUN LED should illuminate within 5 seconds of bus enumeration. A flashing red FAULT LED indicates a bus address conflict or configuration mismatch.
8. In Control Builder, perform a hardware scan or force a configuration download to confirm the replacement module is recognized. Check the diagnostic view for any residual channel faults.
9. Verify live pulse counts against a known reference (e.g., a portable tachometer or flow calibrator) before returning the loop to automatic control.

Firmware note: If the replacement unit ships with a different firmware revision than the failed unit, verify compatibility with your AC800M controller firmware version. ABB’s compatibility matrix is in the S800 I/O Release Notes document. Mismatched firmware rarely causes hard failures but can introduce subtle timing offsets on high-frequency channels.

Reliability in Harsh Conditions

The IMDSM04 was designed for the kind of environments that destroy consumer-grade electronics in weeks. ABB’s S800 I/O platform is qualified to IEC 61131-2 environmental standards, and the IMDSM04 carries that full qualification.

• Vibration resistance: Qualified to IEC 60068-2-6 sinusoidal vibration profiles — relevant for modules installed near rotating machinery, compressors, or on skid-mounted panels subject to continuous mechanical vibration.
• Thermal cycling: Rated for continuous operation at +55 °C ambient with no derating. In practice, modules in well-ventilated cabinets routinely run for 10+ years without thermal-related failure.
• Humidity and condensation: IP20 enclosure with conformal coating on the PCB (verify coating status on your specific batch — NIB units from ABB factory carry standard conformal coat). For high-humidity environments, ensure the cabinet maintains positive pressure with filtered air.
• EMC immunity: CE-marked and tested to IEC 61000-4 series for conducted and radiated immunity. The S800 bus uses differential signaling, which provides inherent noise rejection on the backplane — critical in environments with large VFD installations nearby.
• ESD protection: Input channels include transient voltage suppression (TVS) diodes on each pulse input line. Field wiring surges from inductive sensor switching are absorbed without damage to the input ASIC.

Units we ship have been stored in climate-controlled warehousing with anti-static packaging and humidity indicator cards. We do not ship modules that have been stored in uncontrolled environments — moisture ingress into the connector pins is the leading cause of field failures on modules sourced from grey-market channels.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx gateway access. Here’s how the shipment moves from our shelf to your site:

• Order cut-off: Orders confirmed before 14:00 CST are packed and handed to the carrier the same business day.
• Carrier options: DHL Express Worldwide and FedEx International Priority are our primary carriers. Both provide door-to-door tracking with customs clearance included in the service.
• Transit times (typical): Southeast Asia 1–2 days | Europe 3–5 days | North America 3–5 days | Middle East 2–4 days | Australia 3–4 days. Emergency shipments can be escalated to next-flight-out courier on request.
• Export documentation: Commercial invoice, packing list, and HS code declaration (HS 8537.10) are prepared for every shipment. For customers requiring a Certificate of Origin or specific customs valuation documentation, notify us at order placement.
• Packaging: Modules are shipped in anti-static bags inside foam-lined rigid boxes. Double-boxing is standard for international shipments. We do not use bubble wrap alone — connector pins and PCB edges require rigid protection.
• Tracking: AWB number is emailed within 2 hours of carrier pickup. Real-time tracking link included.

If your plant is in a remote location or a country with complex import procedures, contact us before ordering. We’ve shipped to offshore platforms, remote mining sites, and countries with restricted import channels — we know how to route it.
