ABB IMMFP03 DCS Processor Module – INFI 90

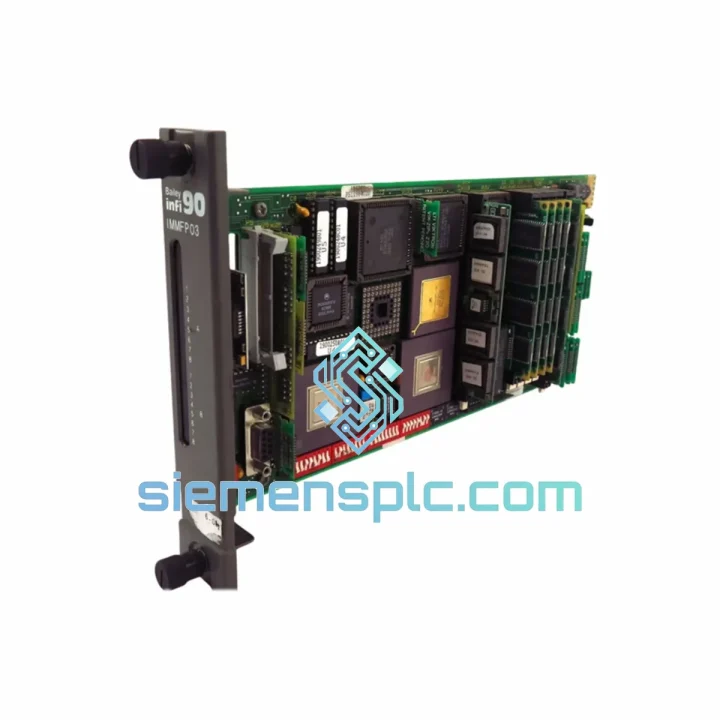

ABB IMMFP03 – Multifunction Processor Module for INFI 90 Distributed Control Systems

The ABB IMMFP03 is the central computational module within the INFI 90 (Network 90) distributed control system architecture, originally engineered by Bailey Controls and subsequently integrated into ABB’s industrial automation portfolio. In a DCS topology where deterministic loop execution and inter-node communication latency directly govern process stability, the IMMFP03 occupies the role of the primary function block executor and plant loop interface arbiter. Its design reflects the engineering priorities of continuous-process industries: scan-cycle predictability, fault-transparent diagnostics, and long-term backward compatibility with installed INFI 90 infrastructure.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Backplane Bus Architecture and Scan Determinism
The IMMFP03 interfaces with the INFI 90 module enclosure via a parallel backplane bus that operates at fixed arbitration cycles. Unlike asynchronous field bus architectures, the INFI 90 backplane enforces a time-slotted access scheme: each module slot is allocated a defined bus window per scan cycle, eliminating contention-induced jitter. The IMMFP03 exploits this architecture by pre-fetching I/O data from connected input modules during the bus window immediately preceding its execution slot, then writing computed output values in the subsequent window. This pipeline structure keeps the processor’s execution phase free of bus-wait states, sustaining deterministic scan completion regardless of I/O module count within the enclosure.

INFI-NET Plant Loop Interface and Token-Passing Protocol
At the network layer, the IMMFP03 participates in the INFI-NET plant loop using a token-passing protocol. Token custody is time-bounded: a module holding the token must complete its transmission within a defined window or forfeit custody, preventing any single node from monopolizing loop bandwidth. The IMMFP03’s onboard communication controller manages token acquisition, data frame assembly, CRC generation, and error retry autonomously, offloading these tasks from the main control processor. This separation of communication and control processing is a deliberate architectural choice that prevents network congestion events from extending the control scan cycle.

EMC Design and Signal Integrity
The IMMFP03 PCB layout follows Bailey Controls’ established EMC mitigation practices for industrial environments: ground plane partitioning separates the analog signal domain from the digital logic domain, reducing capacitive coupling between high-frequency clock lines and low-level process signal paths. Bypass capacitors are placed at each IC power pin to suppress high-frequency switching transients on the backplane power rails. The module’s edge connector incorporates ground pins interspersed with signal pins, providing a distributed return path that reduces ground loop inductance — a critical factor in environments with variable-frequency drives and high-current switching loads operating in proximity to the DCS cabinet.

EEPROM Configuration Persistence and Firmware Compatibility
Control strategy configurations downloaded from the INFI 90 engineering workstation are stored in the IMMFP03’s onboard EEPROM. This non-volatile storage ensures that the module can autonomously restart and resume control execution following a power interruption without requiring a workstation connection. The EEPROM write cycle is managed by the module’s firmware to avoid write fatigue during normal operation — configuration writes occur only on explicit download commands, not on each scan cycle. The IMMFP03 firmware maintains backward compatibility with earlier INFI 90 system firmware revisions, allowing it to operate in mixed-revision installations without requiring a system-wide firmware upgrade.

System Integration Benefits

• Drop-in Backplane Compatibility: The IMMFP03 is mechanically and electrically compatible with INFI 90 module enclosures designed for IMMFP01 and IMMFP02, requiring no backplane modification, rewiring, or slot reassignment during replacement.
• Configuration Database Preservation: Existing INFI 90 configuration databases built for IMMFP01/02 load directly onto the IMMFP03 without translation or re-engineering, reducing commissioning time to the duration of a single download cycle.
• Hot-Standby Redundancy: When paired with a second IMMFP03 and the appropriate INFI 90 redundancy switching hardware, the module supports bumpless transfer on primary failure, maintaining control output continuity with sub-second switchover latency.
• Deterministic Scan Execution: The fixed-cycle backplane bus architecture guarantees that control loop scan times remain within configured bounds regardless of plant loop traffic load, a requirement for tight PID loops in boiler drum level and turbine speed control applications.
• Transparent Fault Diagnostics: The onboard LED array provides immediate visual fault localization at the module level. Simultaneously, the IMMFP03 reports fault codes to the INFI 90 operator station via the plant loop, enabling alarm annunciation without requiring physical cabinet access.
• Scalable Function Block Execution: The IMMFP03 supports the complete INFI 90 function block library, including PID control, Boolean logic, sequence control, and arithmetic calculation blocks, allowing a single module to handle multi-loop control strategies without external co-processors.
• Long-Horizon Spare Parts Strategy: For plants committed to INFI 90 infrastructure through end-of-life, maintaining IMMFP03 spares eliminates the risk of extended downtime caused by processor module failure in a platform where OEM production has ceased. A verified spare on the shelf converts an unplanned outage into a scheduled swap.
• Mixed-Revision System Tolerance: The IMMFP03 operates within INFI 90 installations running mixed firmware revisions across the plant loop, accommodating phased upgrade strategies where not all nodes are updated simultaneously.

Quality Assurance & Global Logistics

Every IMMFP03 unit supplied by siemensplc.com undergoes a structured verification process before dispatch. Physical inspection covers PCB surface condition, component seating integrity, edge connector pin condition, and absence of corrosion or thermal stress marks. Functional verification includes power-on sequencing, LED status confirmation, and where test infrastructure permits, communication handshake verification on an INFI 90 test bench. Units are packaged in anti-static shielding bags, placed in foam-lined cartons rated for international air freight handling, and sealed with tamper-evident tape.

Logistics operations are based in Xiamen, China — a major export hub with direct access to DHL, FedEx, UPS, and TNT international express networks. Standard express transit times to Europe, the Middle East, Southeast Asia, and North America range from 3 to 7 business days. Sea freight consolidation is available for multi-unit orders where air freight cost is a procurement constraint. All shipments include a commercial invoice, packing list, and where required, a certificate of origin for customs clearance. Export documentation is prepared in compliance with Chinese customs regulations and destination-country import requirements.

A 12-month warranty covers functional failure under normal operating conditions from the date of shipment. Warranty claims are processed with a replacement-first policy: a replacement unit is dispatched upon receipt of the failed module, minimizing plant downtime during the claims process.
