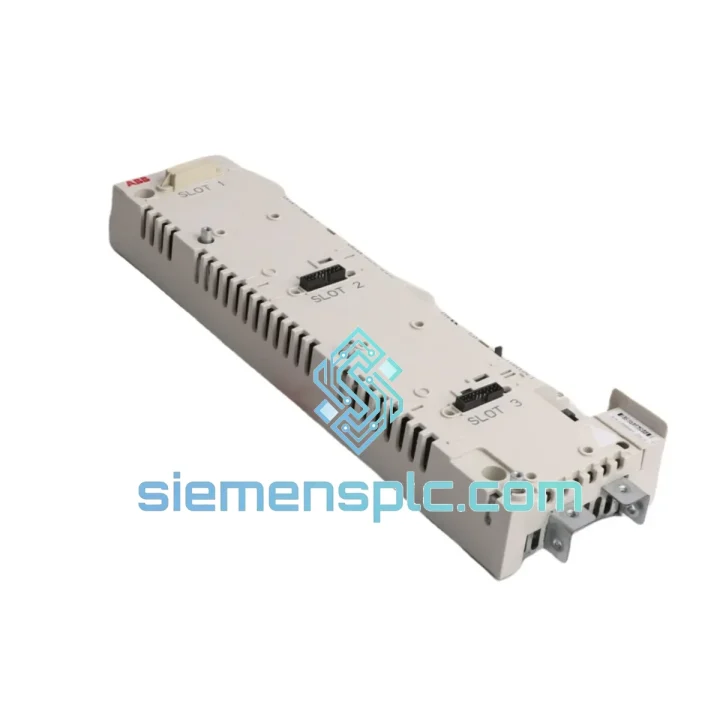

ABB JCU-01 68592917N Drive Control Unit – ACS800 Series

ABB JCU-01 68592917N — The Central Control Architecture of ACS800 Variable Frequency Drives

The ABB JCU-01 (factory reference: 68592917N) is the dedicated control unit board embedded within the ABB ACS800 series variable frequency drive platform. It is not a peripheral accessory — it is the computational and signal-routing core that governs every closed-loop motor control function the drive executes. When this board fails, the drive stops. When it is replaced with a verified original, the drive resumes full deterministic operation without hardware re-commissioning. Understanding its internal architecture is essential for any engineer responsible for ACS800 uptime.

The JCU-01 integrates the drive’s real-time control processor, I/O signal conditioning circuitry, DDCS fiber optic communication stack, and parameter memory interface onto a single plug-in PCB. Its design reflects ABB’s Direct Torque Control (DTC) philosophy: the control loop must execute with sub-millisecond cycle times, and the hardware must support that without compromise.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The JCU-01’s PCB architecture is structured around three functional domains that operate concurrently without bus contention: the real-time motor control processor domain, the I/O signal conditioning domain, and the communication interface domain.

Real-Time Processor Domain: The control processor executes ABB’s DTC algorithm at a 25 µs torque control cycle. This is not a software approximation — it is a hardware-timed interrupt-driven loop that calculates stator flux and electromagnetic torque from measured phase currents and DC bus voltage at every cycle. The JCU-01 provides the processor substrate and memory bus that makes this cycle time achievable. Any counterfeit or non-original board that cannot sustain this timing will cause torque ripple, speed instability, or protection faults under load transients.

Optical Isolation on I/O: All six digital inputs are routed through high-speed optocouplers before reaching the processor bus. The isolation barrier provides a minimum 500 V galvanic separation between field wiring and the control logic plane. This is critical in environments where inductive switching transients from contactors or solenoids can inject common-mode noise into the control cabinet. The relay outputs use mechanical contacts with arc suppression, rated for 250 VAC resistive loads — appropriate for pilot relay and fault annunciation circuits.

DDCS Fiber Optic Stack: The DDCS (Distributed Drive Control System) interface uses plastic optical fiber at 10 Mbit/s. The fiber medium eliminates ground loop interference entirely — a significant advantage in multi-drive panels where multiple JCU-01 boards communicate with a master controller (e.g., NAMC-11) over a ring or star topology. The JCU-01 implements the DDCS protocol stack in firmware, supporting channel addresses 1–12 for multi-drive node assignment.

EMC Design: The PCB uses a multi-layer stackup with dedicated ground planes separating analog signal layers from digital switching layers. Ferrite beads are placed on power supply rails entering the analog domain. The board edge connectors include filtered pins for the 24 VDC auxiliary supply input, suppressing conducted emissions from the external SMPS. This design meets IEC 61800-3 Category C3 immunity requirements without additional external filtering.

Parameter Memory Architecture: Drive parameters are stored in non-volatile EEPROM on the JCU-01 board itself. When replacing a failed JCU-01, the parameter set must be re-loaded from a backup file (via DriveWindow or DriveStudio) or manually re-entered. The EEPROM is not transferable between boards — this is a deliberate design choice to prevent parameter corruption from incompatible firmware versions. Engineers should always export the parameter file before removing a JCU-01 from service.

System Integration Benefits

• Deterministic 25 µs Torque Loop: The JCU-01 sustains ABB’s DTC torque control cycle without jitter, delivering torque response under 2 ms — critical for winding, crane hoist, and paper machine applications where speed transients must be absorbed without mechanical shock.
• Drop-in Board Replacement: The JCU-01 connects to the ACS800 power unit via a standardized edge connector. No mechanical modification to the drive enclosure is required. Replacement time in the field is typically under 30 minutes for a trained technician.
• DDCS Multi-Drive Topology Support: A single JCU-01 can participate in a DDCS ring with up to 12 drive nodes, enabling centralized control from a master NAMC board. This eliminates the need for individual fieldbus adapters on each drive in a multi-motor system.
• Fault Transparency via Diagnostic Codes: The JCU-01 generates structured fault codes (F-codes) and alarm codes (A-codes) accessible via the panel display or DriveWindow. Fault history stores the last 64 events with timestamps, enabling root-cause analysis without external data loggers.
• Analog I/O Flexibility: Both analog inputs accept voltage (0–10 V) or current (0–20 mA) signals selectable by jumper, without requiring additional signal converters. This simplifies integration with legacy PLC analog output cards that may not support both signal types natively.
• Non-Volatile Parameter Retention: EEPROM storage ensures that parameter sets survive auxiliary power loss. In plants with frequent power interruptions, this prevents the drive from reverting to factory defaults after a power event — a common failure mode with volatile RAM-based storage designs.
• Firmware Upgrade Path: The JCU-01 supports firmware updates via the DDCS channel or panel interface, allowing functional improvements and bug fixes to be applied without board replacement. Firmware version compatibility with the power unit must be verified before upgrade.
• 24 VDC Auxiliary Supply Independence: The JCU-01 can remain powered from an external 24 VDC supply while the main drive power is disconnected. This allows parameter editing, fault log review, and DDCS communication to continue during drive maintenance — reducing diagnostic time during planned shutdowns.

Quality Assurance & Global Logistics

Every ABB JCU-01 68592917N dispatched from our Xiamen facility is sourced from documented supply channels — authorized distributors or verified industrial surplus with full traceability records. Before packaging, each board undergoes a structured inspection protocol: label and holographic marking verification, PCB surface and connector pin inspection, and where applicable, a powered bench test against ABB factory I/O specifications.

Units are packaged in anti-static ESD bags, placed in foam-lined inner cartons, and sealed in tamper-evident outer packaging. Each shipment includes a commercial invoice, packing list, and HS code documentation (HS 8537.10) for customs clearance. A certificate of origin is available on request for preferential tariff applications.

Logistics from Xiamen, China:

• DHL Express / FedEx International Priority: 2–5 business days to most destinations in Europe, North America, Southeast Asia, and the Middle East.
• UPS Worldwide Express: Available for time-critical shipments with real-time tracking from dispatch to delivery.
• SF Express International: Cost-effective option for Asia-Pacific destinations with 3–7 business day transit.
• Dispatch Lead Time: In-stock units ship within 1–2 business days of payment confirmation.
• Bulk / Project Orders: Dedicated freight coordination available for multi-unit procurement with consolidated packaging.

All units carry a 12-month warranty from the dispatch date. DOA (Dead on Arrival) claims are processed within 48 hours of notification. Extended warranty and on-site technical support arrangements are available for project procurement — contact us with your requirements.
