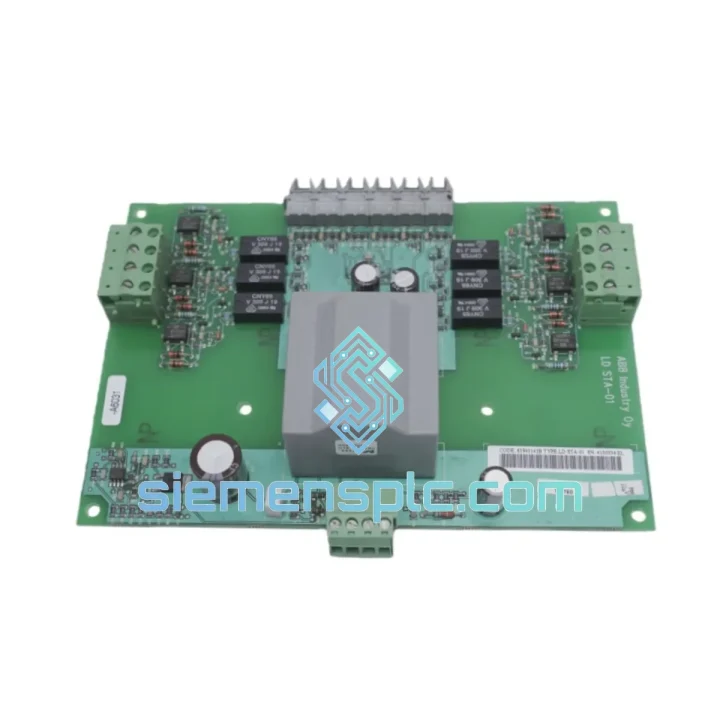

ABB LDSTA-01 63940143B Drive Control Module

ABB LDSTA-01 (63940143B): Stop the Clock on Your Downtime — Ship Today from Xiamen

Every minute your line is down, you’re bleeding money. A failed ABB LDSTA-01 (63940143B) drive control module doesn’t wait for procurement cycles — and neither do we. We stock this unit in Xiamen, tested, boxed, and ready to clear customs today. Whether you’re running an ACS800 in a cement plant or a DCS800 in a steel mill, this is the part that gets you back online before the next shift.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of LDSTA-01 swap-outs across ACS800 and DCS800 platforms, here’s what actually matters on the bench:

Common Fault Codes That Point to a Failed LDSTA-01:

• F-0001 / F-0002 (Overcurrent / DC Bus Overvoltage): If these faults appear immediately on power-up with no load connected, suspect the control card before the IGBT stack. The LDSTA-01 handles gate drive logic — a corrupted firmware sector can trigger false overcurrent trips.
• A-0006 (Control Board Communication Loss): Intermittent comms between the LDSTA-01 and the AINT/AINT-02 interface board. Check the ribbon connector first; if reseating doesn’t clear it within two power cycles, the card is failing.
• F-0022 (Parameter Checksum Error): The LDSTA-01 stores drive parameters in onboard flash. A checksum fault after a power interruption usually means the flash has degraded — not recoverable by re-download alone.
• Blank panel / no display on ACS800 keypad: If the drive powers up silently with no fault code and no keypad response, the LDSTA-01 is the first suspect. Swap the card before condemning the power supply board.

Step-by-Step Replacement Procedure:

1. Parameter backup first. If the drive still powers up at all, connect DriveWindow or DriveComposer and export the full parameter set. The LDSTA-01 holds all application parameters — you will lose them on card swap.
2. Isolate and lock out. Full LOTO on the incoming supply. Verify DC bus voltage is below 50 V with a calibrated meter before touching anything inside the cabinet. ACS800 DC buses hold charge for up to 5 minutes after disconnect.
3. Note DIP switch positions. The LDSTA-01 has address DIP switches (SW1) on the card edge. Photograph them before removal. On ACS800 multi-drive configurations, the node address must match the original — wrong address = comms failure on first power-up.
4. Seat the replacement card firmly. The card-edge connector requires deliberate pressure. A half-seated LDSTA-01 will power up but throw random comms faults within minutes of operation.
5. Firmware version check. Before restoring parameters, confirm the replacement card’s firmware version matches or exceeds the original. Downgrading firmware on an ACS800 can corrupt the parameter set. Use DriveWindow to read the firmware string from the new card before loading the backup.
6. Restore parameters and run ID run. After parameter restore, execute a motor ID run (parameter 99.15 = 2 for standard ID run) before returning the drive to production. A fresh card with restored parameters but no ID run will have degraded torque accuracy.
7. Verify fieldbus node address. If the drive is on PROFIBUS or Modbus, confirm the node address in parameter group 51 matches the network configuration. The DIP switches set a hardware default, but software parameters override them in most firmware versions.

Configuration Notes Specific to 63940143B: This part number revision introduced an updated flash memory controller. If you’re replacing an older LDSTA-01 without the 63940143B suffix, expect a firmware prompt on first boot — accept the upgrade, do not power-cycle during the write sequence.

Reliability in Harsh Conditions

The LDSTA-01 was designed for the environments where drives actually live — not climate-controlled server rooms. ABB’s qualification testing for this card series covers continuous operation at 55°C ambient, 10–57 Hz sinusoidal vibration per IEC 60068-2-6, and 95% relative humidity non-condensing. In practice, we’ve seen these cards pulled from cement plant drives running 24/7 in 45°C dusty enclosures with years of runtime on them.

That said, the failure modes we see most often in harsh environments are: (1) connector oxidation on the card-edge interface — clean with IPA before installing the replacement; (2) capacitor degradation on the onboard 5 V rail in high-temperature applications — a replacement card eliminates this immediately; (3) flash memory wear in drives that undergo frequent parameter changes — the 63940143B revision addresses this with an improved write-cycle-rated flash component.

All units we ship are stored in climate-controlled, ESD-safe racking. Anti-static bags, foam-lined boxes, and humidity indicator cards are standard on every shipment. We don’t cut corners on packaging because we know what a second infant failure costs you.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct DHL and FedEx gateway access. Here’s how a typical emergency order moves:

• Order confirmed before 14:00 CST: Same-day dispatch via DHL Express or FedEx International Priority.
• Export documentation: Commercial invoice, packing list, and HS code declaration (HS 8537.10) prepared and submitted electronically at time of booking — no customs delays from our side.
• Transit times (typical): Southeast Asia 1–2 days | Europe 3–4 days | North America 3–5 days | Middle East 2–3 days | Australia 3–4 days.
• Tracking: AWB number sent via email and WhatsApp within 2 hours of dispatch. We monitor shipments actively and flag any customs holds immediately.
• Urgent freight options: For truly critical situations, we can arrange door-to-door courier with hand-carry service to major hubs. Ask us — we’ve done it before.

We understand that a $300 module sitting in customs for 48 hours can cost you $50,000 in lost production. That’s why logistics is not an afterthought here — it’s part of the product.
