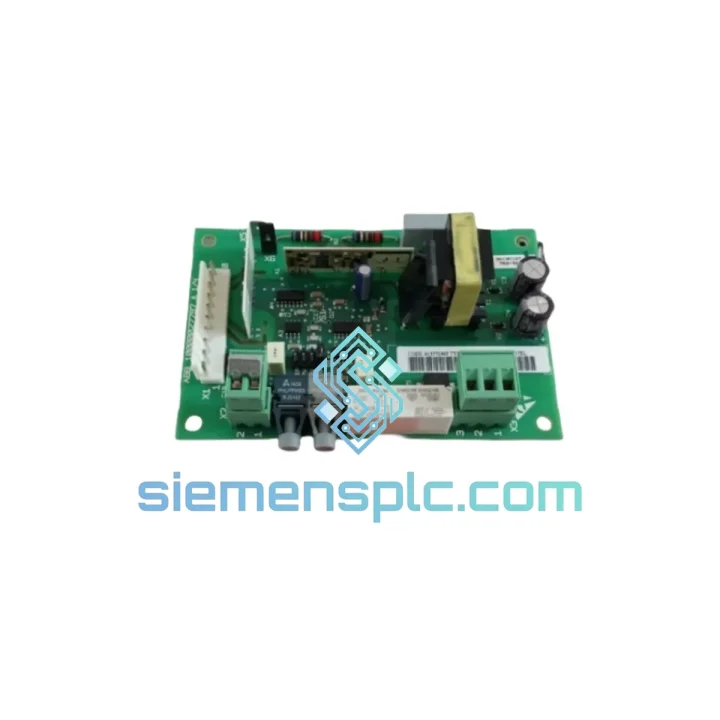

ABB NBRC-61C 61357246F Control Board – ACS800 Series

ABB NBRC-61C 61357246F – Application Control Board for ACS800 Variable Speed Drive Systems

The ABB NBRC-61C (catalog reference 61357246F) is the dedicated application control board installed in the ACS800 series of variable speed drives. Positioned between the drive’s RMIO motor control interface and the user application layer, this board executes the DTC (Direct Torque Control) algorithm coordination, manages the fieldbus adapter interface, and handles the supervisory logic that governs drive state transitions. Its role is not peripheral — it is the computational core that determines how the drive interprets process references, responds to fault conditions, and communicates status upstream to a SCADA or PLC host.

In a standard ACS800-01 cabinet, the NBRC-61C mounts on the control section backplane via a 34-pin ribbon connector. It draws logic power from the internal SMPS rail (typically +5 V / +15 V), operates independently of the main DC bus voltage, and retains parameter memory through an onboard EEPROM. This architecture means the board can be powered and diagnosed even when the drive’s power section is de-energized — a significant advantage during commissioning and fault analysis.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The NBRC-61C is built around a 16/32-bit embedded microcontroller clocked at a frequency sufficient to execute the DTC torque reference cycle at 40 µs intervals — the same cycle time ABB specifies for the ACS800 DTC core. The board’s firmware interfaces with the RMIO board via a high-speed parallel bus, passing torque reference, flux reference, and actual torque feedback values at each control cycle without the latency overhead of a serial link.

EMC Design: The PCB uses a four-layer stackup with dedicated ground planes on layers 2 and 3, isolating the analog signal traces on layer 1 from the digital switching noise on layer 4. Ferrite beads are placed at the entry points of all external signal lines, and the fieldbus adapter connector is shielded with a grounded metal shroud. This layout achieves conducted emission compliance to EN 55011 Class A without external filtering components — a design choice that reduces BOM cost and eliminates a potential failure point in the signal chain.

Fault Latch and Diagnostic Architecture: The board implements a hardware fault latch circuit independent of the main MCU. If the MCU enters an undefined state (watchdog timeout, stack overflow), the latch asserts a hardware FAULT signal directly to the drive’s gate driver inhibit line within 2 ms, preventing uncontrolled motor behavior. This dual-layer protection — software watchdog plus hardware latch — is consistent with SIL 1 functional safety requirements under IEC 62061 for the supervisory layer.

Parameter Storage Architecture: The EEPROM on the NBRC-61C stores the full parameter set (Groups 10–99 in ACS800 parameter structure) in a wear-leveled sector scheme. Write cycles are estimated at >100,000 per sector, with the firmware distributing writes across sectors to extend service life beyond the drive’s expected 20-year operational lifespan in typical industrial environments.

System Integration Benefits

• Deterministic torque response: The 40 µs DTC cycle executed by the NBRC-61C delivers torque step response within one control cycle — approximately 1–2 ms to full torque — without encoder feedback, eliminating the mechanical complexity and failure mode of a tachometer or resolver.
• Fieldbus protocol flexibility: The adapter slot accepts ABB’s NPBA-12 (PROFIBUS-DP), NCAN-01 (CANopen), NMBP-01 (Modbus Plus), and NETA-21 (Ethernet/IP) modules, allowing the same board to integrate into heterogeneous plant networks without hardware redesign.
• Transparent fault diagnostics: The board logs up to 64 fault events with timestamp, fault code, drive output frequency, and DC bus voltage at the moment of fault. This data is accessible via the drive’s panel or fieldbus, reducing mean time to diagnose (MTTD) from hours to minutes.
• Non-volatile parameter retention: All 200+ drive parameters survive a power loss without battery backup. Replacement boards can be pre-loaded with a parameter backup file via the ACS800 panel or DriveWindow software, reducing recommissioning time to under 15 minutes.
• Adaptive motor model: The DTC algorithm running on the NBRC-61C performs an automatic motor identification run (ID run) that characterizes stator resistance, rotor resistance, leakage inductance, and magnetizing inductance. This eliminates manual motor data entry and compensates for motor aging over the service life.
• Process PID integration: An onboard PID controller block (configurable in parameter Group 40) allows the NBRC-61C to close a process control loop — pressure, flow, level — directly within the drive, offloading the PLC from a continuous analog feedback loop and reducing network traffic.
• Coordinated multi-drive synchronization: In ACS800 multi-drive configurations, the NBRC-61C participates in the DDCS (Drive-to-Drive Communication System) fiber-optic ring, enabling torque and speed reference sharing between up to 12 drive modules with a cycle time of 2 ms — suitable for winder, unwinder, and draw-roll applications requiring tight tension control.
• Hot-swap capable design: The board can be extracted and reinserted while the drive’s control power is live (main power must be isolated), allowing parameter backup and board swap without a full system shutdown — a critical capability in continuous-process industries where planned downtime windows are measured in minutes.

Quality Assurance & Global Logistics

Every NBRC-61C 61357246F unit dispatched from our Xiamen facility is sourced directly from ABB’s authorized distribution network or verified OEM surplus channels with full traceability documentation. New units carry the original ABB factory seal, holographic authenticity label, and are packed in ABB-standard anti-static ESD bags with foam-lined cartons rated for air freight vibration profiles per ASTM D4169.

Tested surplus units undergo a structured bench verification protocol: visual inspection under 10× magnification for PCB delamination, solder joint integrity, and component damage; functional power-on test with logic supply applied; EEPROM read/write verification; and fieldbus adapter slot continuity check. Units that pass all stages receive a test certificate with technician ID, test date, and measured parameters.

Shipment from Xiamen, China to major industrial hubs is executed via DHL Express (1–3 business days to EU/US), FedEx International Priority, or UPS Worldwide Express. All shipments include a commercial invoice, packing list, and certificate of origin. For orders requiring CITES, dual-use, or export license documentation, our logistics team prepares the necessary declarations within 24 hours of order confirmation. Customs HS code 8537.10 applies to this product category in most jurisdictions.

A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed within 5 business days, with advance replacement available for critical production applications upon deposit.
