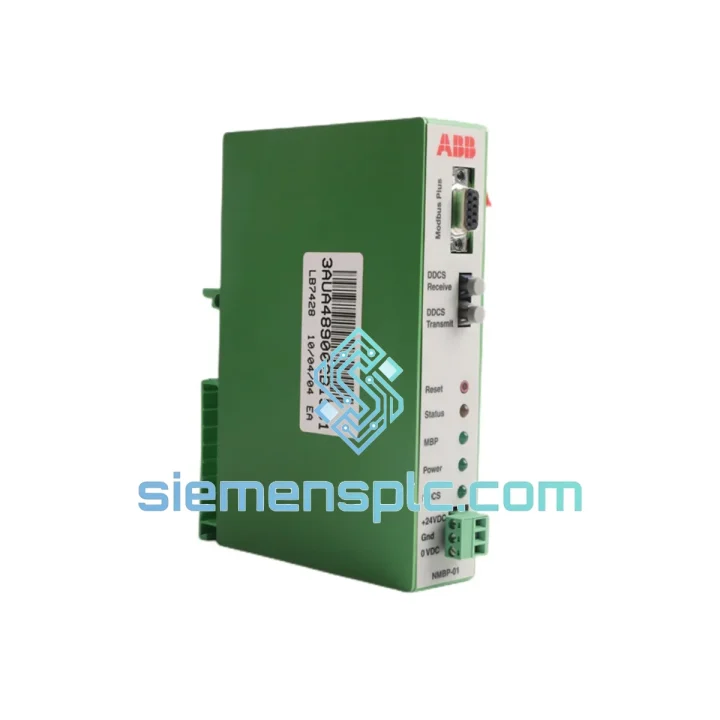

ABB NMBP-01 Fieldbus Communication Adapter – Modbus Plus

ABB NMBP-01 Modbus Plus Fieldbus Adapter: Drive-Level Network Integration for Modicon-Based Control Architectures

The ABB NMBP-01 is a dedicated Modbus Plus (MB+) fieldbus communication adapter engineered for insertion into the option slot of ABB AC drive platforms including the ACS550, ACS800, and ACS600 series. Its primary function is to establish a deterministic, token-passing data link between the host drive and a Modicon/Schneider Electric PLC network operating on the Modbus Plus protocol at 1 Mbit/s. Unlike generic protocol gateways, the NMBP-01 interfaces directly with the drive’s internal RMIO control board, granting the PLC master full access to the drive’s process data objects (PDOs), parameter registers, and fault word — without any intermediate translation layer or added latency.

In a typical closed-loop speed or torque control application, the PLC writes reference values and control words to the drive via the MB+ network at each scan cycle. The NMBP-01 receives these frames, decodes the Modbus Plus data link layer, and presents the payload to the drive’s fieldbus interface logic within a deterministic window. This architecture eliminates the jitter associated with Modbus RTU polling and is particularly suited to multi-drive coordination tasks where phase alignment between axes is operationally critical.

The module draws its 24 VDC supply directly from the drive’s control board, requiring no external power rail. Node addressing is configured via an on-board DIP switch array, supporting up to 32 nodes per MB+ segment with a maximum cable run of 450 m using Belden 9841 or equivalent shielded twisted-pair. The DB9 connector on the module’s faceplate provides the standard Modbus Plus physical interface, with galvanic isolation protecting the drive’s internal electronics from network-borne transients and ground potential differences common in large industrial installations.

The NMBP-01 has accumulated a substantial field track record across continuous-duty applications in paper mills, water treatment facilities, HVAC plants, and material handling systems where Modbus Plus remains the established fieldbus backbone. Its compatibility with the ABB standard fieldbus profile means that drive parameter mapping follows a documented, predictable structure — reducing commissioning time and simplifying spare-part management in multi-vendor environments.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The NMBP-01’s internal architecture is structured around three functional blocks: the MB+ physical layer transceiver, the token-passing MAC controller, and the drive-side parallel interface logic.

MB+ Physical Layer & EMC Design: The Modbus Plus physical layer on the NMBP-01 uses a differential signaling scheme over shielded twisted-pair, inherently rejecting common-mode noise. The galvanic isolation barrier — implemented via optocouplers and a DC-DC converter on the network side — provides a minimum 500 V isolation rating between the MB+ bus and the drive’s internal logic ground. This is not a passive filter; it is a hard electrical break that prevents ground loop currents from corrupting network frames, a failure mode frequently observed in large motor control centers where ground potential differences between panels can reach several volts.

Token-Passing MAC Controller: Modbus Plus uses a distributed token-passing access method rather than a master-slave polling model. Each node, including the NMBP-01, holds the token for a defined time window, transmits its data, then passes the token to the next node. This deterministic access scheme guarantees a bounded worst-case latency regardless of network load — a property that Modbus RTU polling cannot provide. The NMBP-01’s MAC controller handles token acquisition, frame CRC validation, and collision recovery autonomously, offloading this overhead from both the PLC CPU and the drive’s RMIO processor.

Drive-Side Interface Logic: On the drive side, the NMBP-01 connects to the RMIO board’s option module bus. This bus transfers process data words (typically 6 reference words and 6 actual value words in the ABB standard fieldbus profile) at the drive’s internal task cycle rate, which is synchronized to the PWM carrier frequency. The result is that network data updates are phase-locked to the drive’s control cycle, eliminating the asynchronous update problem that affects external gateway solutions and can introduce a full control cycle of additional lag into the speed reference path.

Redundancy Considerations: While the NMBP-01 itself does not implement hardware redundancy, the Modbus Plus token-passing protocol includes automatic node dropout detection. If the NMBP-01 fails to acquire the token within a defined timeout, the network reconfigures around the missing node within one token rotation cycle, allowing other nodes to continue communicating. The drive’s fieldbus supervision timer (configurable in ABB drive parameters) then triggers a defined fault response — typically coast stop or last-speed hold — providing a deterministic failure mode rather than an undefined open-loop condition.

System Integration Benefits

• Zero-gateway latency: Direct RMIO option slot insertion eliminates the protocol translation delay of external MB+ gateways, reducing the drive reference update path by one full network cycle.
• Deterministic scan alignment: Token-passing MAC guarantees bounded worst-case latency across all 32 nodes, enabling multi-drive speed synchronization without application-layer compensation logic.
• Full parameter transparency: The PLC can read and write any drive parameter register via the MB+ data link, enabling remote commissioning, adaptive gain scheduling, and predictive maintenance data collection without local HMI access.
• Fault word propagation: Drive fault codes are mapped to the MB+ actual value words and are available to the PLC at every scan cycle, enabling the SCADA layer to log fault events with millisecond-resolution timestamps.
• No external power supply: 24 VDC sourced from the drive control board eliminates a separate power rail, reducing panel wiring complexity and removing a potential single point of failure.
• DIP-switch node addressing: Hardware-based node addressing prevents address conflicts caused by software misconfiguration during maintenance, a common source of network instability in multi-drive panels.
• Galvanic isolation: The 500 V isolation barrier on the MB+ port protects the drive’s RMIO board from network transients generated by adjacent high-power switching equipment, extending MTBF in electrically noisy environments.
• Backward compatibility with legacy MB+ infrastructure: Existing Modicon Quantum, Premium, and 984 PLC networks require no hardware or software modification to accommodate the NMBP-01, protecting the capital investment in installed fieldbus infrastructure.
• ABB standard fieldbus profile compliance: Adherence to the documented ABB fieldbus parameter mapping means that drive configuration files and PLC function blocks developed for one NMBP-01 installation are directly portable to other sites running the same drive series.
• Reduced commissioning time: Plug-and-play insertion into the drive option slot, combined with the documented parameter mapping, typically reduces fieldbus commissioning time compared to gateway-based alternatives requiring separate IP configuration and protocol mapping tables.

Quality Assurance & Global Logistics

Every NMBP-01 unit dispatched from our Xiamen, China facility is sourced through verified industrial distribution channels with full traceability documentation. Prior to shipment, each module undergoes a structured inspection protocol: visual examination of the PCB, connector pins, and housing for mechanical damage; verification of the manufacturer’s label and date code against procurement records; and a functional power-on check confirming the module’s status LED behavior matches the ABB specification.

Units are packed in anti-static bags with foam cushioning inside double-wall corrugated cartons, meeting ISTA 2A transit testing standards. For international shipments, we use DHL Express, FedEx International Priority, and UPS Worldwide Expedited as primary carriers, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. Air freight consolidation is available for bulk orders requiring cost optimization over speed.

All new units carry a 12-month replacement warranty from the date of shipment. Warranty claims are processed within 5 business days of receiving the returned unit. Refurbished and surplus-grade units carry a 90-day warranty and are clearly identified in the quotation. Batch records and supplier documentation are available on request for customers operating under ISO 9001, IEC 61511, or similar quality management frameworks.

Export compliance: NMBP-01 is classified as a standard industrial automation component. We handle all export documentation including commercial invoice, packing list, and certificate of origin. Customers in regulated markets should confirm import classification with their local customs authority prior to ordering.
