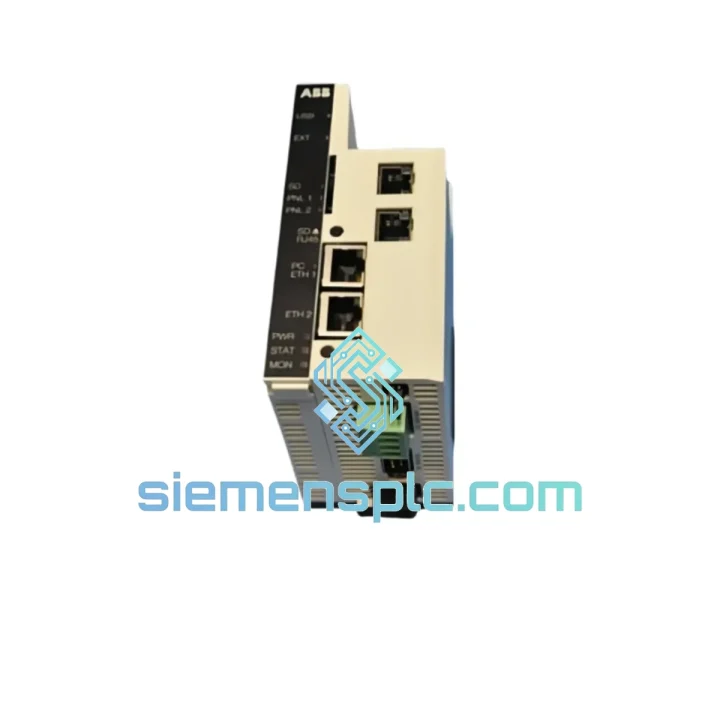

ABB NEXA-21 3AUA0000094518 Drive Accessory Module – ACS880 Series

ABB NEXA-21 (3AUA0000094518): Real-Time Remote Monitoring Interface for ACS880 Industrial Drive Systems

The ABB NEXA-21, ordering code 3AUA0000094518, is a dedicated remote monitoring and diagnostics interface module engineered for integration with ABB ACS880 series industrial variable-speed drives. Mounted directly into the drive’s option slot, the NEXA-21 establishes a persistent bidirectional communication channel between the drive control unit and remote supervisory systems — enabling continuous parameter surveillance, fault event logging, and real-time status interrogation without interrupting the drive’s primary control loop.

Unlike generic Modbus gateways that operate at the application layer only, the NEXA-21 interfaces at the drive firmware level, granting access to internal data objects that are inaccessible through standard fieldbus adapters. This architecture is particularly significant in high-availability installations — paper mills, water treatment stations, offshore compressor platforms — where unplanned downtime carries measurable financial consequence. The module supports ABB’s Remote Monitoring Service (RMS) cloud infrastructure and is fully compatible with ABB Drive Composer PC tool for offline analysis and parameter archiving.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The NEXA-21 is built around a dual-processor architecture: a communication processor handling Ethernet and RS-485 stack management, and a data-plane processor responsible for synchronous parameter polling from the drive’s internal DDCS (Distributed Drive Control System) backplane. This separation ensures that network latency or packet loss events on the monitoring channel do not propagate timing jitter into the drive’s torque control loop — a critical design constraint in tension-controlled winding applications.

EMC Design: The module’s PCB layout employs a four-layer stackup with dedicated ground planes isolating the RS-485 transceiver section from the Ethernet PHY. Galvanic isolation on the RS-485 port (1500 V_rms rated) prevents ground loop currents from corrupting data frames in installations where the monitoring host and the drive share different earthing reference points — a common scenario in multi-panel MCC configurations. The Ethernet port incorporates a common-mode choke and TVS diode array rated to IEC 61000-4-5 Level 4 (4 kV surge), consistent with the EMC immunity requirements of IEC 61800-3 Category C3 environments.

Watchdog and Redundancy Logic: An independent hardware watchdog timer monitors the communication processor’s heartbeat. If the processor fails to reset the watchdog within a 500 ms window — indicating a firmware hang or memory fault — the watchdog asserts a reset signal and logs the event to non-volatile flash memory. This self-recovery mechanism ensures the monitoring channel restores autonomously without requiring drive restart or field intervention. In dual-NEXA-21 configurations (supported on ACS880-07 multi-drive systems), an arbitration register in the drive firmware designates one module as primary and the other as standby, with automatic failover latency under 2 seconds.

Parameter Access Depth: Unlike Modbus register maps that expose only a predefined subset of drive parameters, the NEXA-21 communicates via ABB’s DDCS protocol, granting read access to the full parameter set including internal signal groups (Group 01–99), adaptive program variables, and real-time signal values sampled at the drive’s 2 ms task cycle. This granularity is essential for root-cause analysis of intermittent faults that do not persist long enough to be captured by slower polling cycles.

System Integration Benefits

• Zero-impact monitoring architecture: The NEXA-21 operates on a dedicated option slot bus isolated from the drive’s main control ASIC. Parameter reads do not consume CPU cycles on the primary control processor, preserving deterministic torque and speed loop execution at the drive’s native 125 µs cycle time.
• Firmware-level fault capture: Fault events are timestamped at the drive’s internal 1 ms resolution clock and stored with a 32-parameter snapshot at the moment of fault assertion — providing the exact electrical and mechanical state of the drive at fault onset, not a delayed polling approximation.
• ABB Drive Composer integration: The module exposes a standard TCP/IP endpoint that Drive Composer Pro recognizes natively. Engineers can perform live signal trending, parameter upload/download, and adaptive program editing over the network without physical access to the drive cabinet.
• ABB RMS cloud connectivity: When configured for RMS, the NEXA-21 establishes an outbound HTTPS tunnel to ABB’s monitoring infrastructure. This eliminates the need for inbound firewall rules on the plant network — a significant advantage in facilities with strict IT security policies.
• SCADA/DCS integration via Modbus TCP: The module’s Modbus TCP server maps 512 drive parameters to a contiguous holding register block, enabling direct integration with Siemens WinCC, Rockwell FactoryTalk, Wonderware, and any IEC 61131-3 compliant PLC with Ethernet capability.
• Predictive maintenance data export: Thermal model data (motor temperature estimate, drive heatsink temperature, IGBT junction temperature estimate) are available as real-time registers, enabling condition-based maintenance scheduling without additional temperature sensors.
• Multi-drive topology support: A single NEXA-21 in an ACS880-07 multi-drive cabinet can monitor up to 12 individual inverter modules via the internal DDCS ring, reducing per-drive monitoring hardware cost in large multi-axis installations.
• Diagnostic transparency for commissioning: During drive commissioning, the NEXA-21 enables remote parameter verification against the engineering specification sheet — reducing commissioning time by allowing the controls engineer to validate parameter sets from the control room while the field technician performs mechanical checks at the drive.

Quality Assurance & Global Logistics

Every NEXA-21 unit supplied by siemensplc.com is sourced from verified ABB distribution channels and subjected to a structured incoming inspection protocol before dispatch. Inspection steps include label and serial number verification against ABB’s product traceability database, visual examination of PCB and connector integrity, and functional power-on verification where test fixtures permit. Units are packed in anti-static shielding bags with humidity indicator cards, placed in foam-lined cartons rated for international air freight handling per ISTA 2A standards.

Shipments originate from our Xiamen, China warehouse. Standard dispatch is within 1–3 business days of order confirmation. International delivery is handled via DHL Express, FedEx International Priority, or UPS Worldwide Express — typical transit times of 3–5 business days to Europe, 4–6 days to North America, and 2–4 days to Southeast Asia. Commercial invoice, packing list, and certificate of conformity are included with every shipment. HS Code 8537.10 applies for customs classification. For B2B customers requiring formal quotation, purchase order processing, or letter of credit terms, our sales team responds within 4 business hours.

A 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with advance replacement where stock permits, minimizing plant downtime. Extended 24-month warranty coverage is available for volume orders of 10 units or more.
