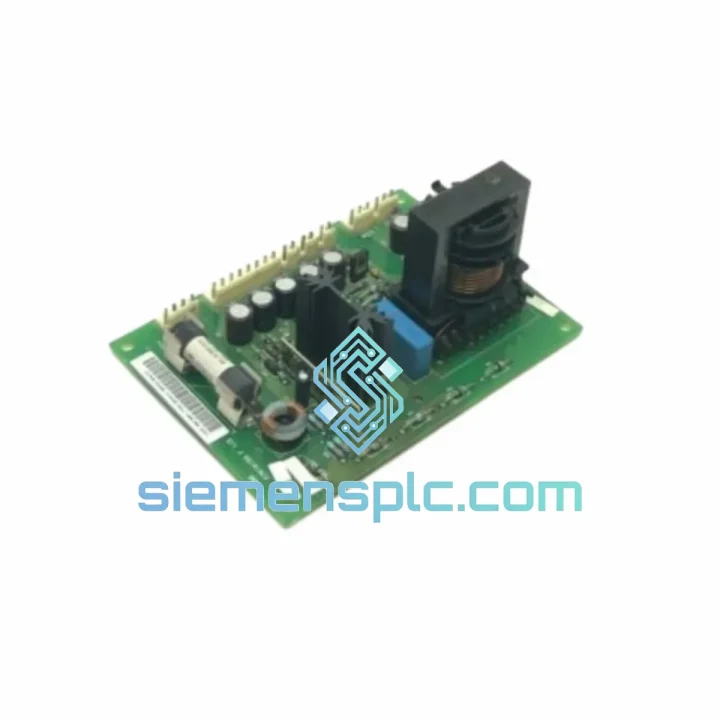

ABB NPOW-41 Power Supply Board

ABB NPOW-41 Power Supply Board — Stop the Bleeding: Get Your AC800M Back Online Before the Next Shift

It’s 2 AM. Your AC800M controller cabinet is dark. The NPOW-41 internal power board has failed, and every hour offline is burning through your maintenance budget and your production schedule simultaneously. You don’t need a sales pitch — you need a verified, tested replacement on a plane to your facility today. That’s exactly what we do.

The NPOW-41 is the dedicated internal power conversion board inside ABB’s AC800M process automation controllers and INSUM motor management systems. When it fails, nothing downstream works — not the CPU, not the I/O modules, not the fieldbus interfaces. It is the single point of failure that can take an entire control loop offline in seconds. We stock it. We ship it. We’ve done this hundreds of times for plants in the same situation you’re in right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

How to confirm NPOW-41 failure before ordering:

Before pulling the board, rule out upstream causes. Check your 24 VDC cabinet supply rail first — a sagging rail will mimic a dead NPOW-41. If the cabinet supply is solid and the AC800M CPU module shows no LED activity at all (not even a fault blink), the NPOW-41 is the primary suspect. A partial failure — where the CPU boots but I/O modules drop off intermittently — often points to a degraded output rail on the NPOW-41, typically the +5 V logic rail losing regulation under load.

Common fault signatures:

• All LEDs on CPU module extinguished — no power reaching the backplane
• Intermittent I/O module dropouts with no fieldbus errors — low +5 V rail
• Excessive heat from the controller cabinet with no obvious cause — NPOW-41 switching components running in thermal runaway
• AC800M reboots spontaneously under load — output voltage collapse under current draw

Replacement procedure — field notes:

1. Perform a controlled shutdown via ABB Control Builder. Do not hard-power the cabinet without saving the CPU application state if your firmware version supports it.
2. Isolate and lock out the 24 VDC supply to the controller cabinet. Verify zero voltage with a calibrated meter before opening the chassis.
3. The NPOW-41 is secured with standard M3 screws and a board-edge connector. Note the connector orientation — it is keyed but the locking tab can be missed under poor lighting. Use a headlamp.
4. Before seating the replacement board, inspect the mating connector on the backplane for bent pins or corrosion. A failed NPOW-41 sometimes indicates a connector issue that caused the board to fail in the first place.
5. The NPOW-41 does not require firmware flashing or address configuration — it is a passive power board with no programmable elements. Seat it, torque the screws to spec, reconnect the supply, and power up.
6. On first power-up, monitor the CPU LED sequence. A normal boot on AC800M takes approximately 45–90 seconds to reach RUN state. If the CPU faults immediately, check your application download integrity — the power interruption may have corrupted the flash.
7. Verify all I/O module LEDs return to green. Run a forced I/O test from Control Builder before releasing the loop to automatic.

Firmware and hardware revision matching: The NPOW-41 has been used across multiple AC800M hardware generations. In most cases it is backward compatible, but if your controller is a very early revision (pre-2005 manufacture), confirm the board revision with us before ordering. We can cross-reference by your controller’s serial number.

Reliability in Harsh Conditions

The AC800M platform — and the NPOW-41 that powers it — was designed for environments that would destroy consumer-grade electronics in days. ABB’s internal qualification testing for this platform covers continuous vibration at 1 G across 10–150 Hz (IEC 60068-2-6), shock loads up to 15 G (IEC 60068-2-27), and operating humidity up to 95% non-condensing. The NPOW-41’s switching topology uses industrial-grade capacitors rated for 105°C junction temperature, not the 85°C components found in commercial power supplies — a distinction that matters enormously in a hot cabinet running 24/7 in a tropical or desert environment.

Units sourced through us are stored in climate-controlled conditions and shipped in anti-static, foam-cushioned packaging. We do not pull boards from scrapped equipment and relist them as tested surplus without disclosure. Every unit we ship as tested surplus has been powered up, output rails verified with a calibrated bench supply, and logged. If you need the test record, ask for it — we’ll send it with the shipment.

For offshore and marine INSUM installations, where humidity and salt air are constant threats, we recommend requesting a conformal-coated unit if available, or applying conformal coating on-site after installation. We can advise on compatible coating materials that won’t interfere with the board’s thermal management.

Global Express Logistics

Our warehouse is located in Xiamen, China — one of the country’s primary export hubs with direct DHL and FedEx gateway access. For urgent orders confirmed before 14:00 CST, same-day dispatch is standard. Here’s what the logistics chain looks like from your order to your hands:

• Order confirmed → Picked and packed: Within 2 hours during business hours
• Xiamen to DHL/FedEx gateway: Same day or next morning
• DHL Express / FedEx International Priority transit times:
  • Southeast Asia: 1–2 business days
  • Middle East & India: 2–3 business days
  • Europe: 3–4 business days
  • North America: 3–5 business days
  • Australia / Africa: 4–6 business days
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared and attached to the airway bill. HS code 8537.10 is pre-declared for smooth customs clearance in most jurisdictions.
• Tracking: AWB number sent to you by email and WhatsApp within 1 hour of handover to the carrier.

For destinations with known customs delays (Brazil, India, certain African markets), we can advise on documentation strategies that reduce clearance time. We’ve shipped to over 60 countries and know where the friction points are.
