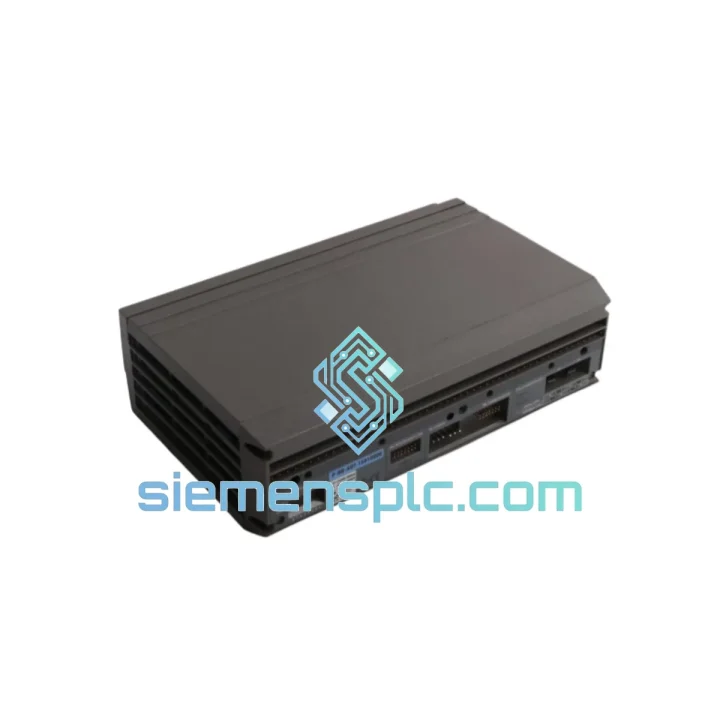

ABB P-HB-AOT-15010000 Analog Output Module

ABB P-HB-AOT-15010000 – Cut Downtime Now. Ship Today from Xiamen.

Every hour your Harmony HB DCS sits offline costs real money. Whether it’s a blown analog output channel, a corrupted firmware state, or a field wiring fault that took out the module, you need a verified replacement on-site — not a 6-week lead time from a regional distributor. We stock the ABB P-HB-AOT-15010000 in Xiamen and ship same-day via DHL Express or FedEx International Priority. This is the exact module your system needs, no substitutions, no refurbished surprises.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The P-HB-AOT-15010000 fails in predictable ways. Here’s what field experience tells you before you even pull the module:

Fault Code 0x4A / Output Frozen: The most common failure mode. One or more output channels lock at last-known value. Root cause is usually a failed DAC cell or a corrupted channel calibration table in EEPROM. A cold swap of the module clears it — but only if you re-download the channel configuration from the DCS controller afterward. Do not assume the replacement module retains the previous calibration offsets.

Fault Code 0x31 / Bus Communication Loss: Before condemning the module, check the backplane connector pins for oxidation or mechanical damage. The Harmony HB bus is sensitive to contact resistance. Clean the gold fingers with IPA and reseat twice. If the fault persists after reseating, the module’s bus transceiver IC has likely failed — replace the module.

Self-Addressing on Hot-Swap: The P-HB-AOT-15010000 uses slot-based addressing. When you insert the replacement into the same physical slot, the controller will auto-assign the same logical address within 10–30 seconds. Do not manually reassign the address unless you are relocating the module to a different slot. Premature address reassignment causes duplicate-address conflicts that require a full I/O bus restart.

Firmware Revision Matching: Check the firmware label on the module’s PCB edge (visible through the front panel vent). The replacement unit’s firmware revision must be equal to or higher than the failed unit. Downgrading firmware on a live Harmony HB system can cause the controller to reject the module entirely. If your system runs an older firmware baseline, contact us — we can source revision-matched units.

DIP Switch / Jumper Settings: Some P-HB-AOT variants have internal jumpers for output range selection (current vs. voltage mode). Before installing, verify the jumper positions match your loop design. Incorrect jumper settings will not generate a fault code — the output will simply be wrong, which is harder to diagnose under pressure.

Replacement Sequence:

• Step 1: Place the affected channel group in manual mode at the DCS workstation. Do not rely on the controller to hold last value — confirm with the field operator.
• Step 2: De-energize the module slot if your backplane supports per-slot isolation. If not, proceed with the system in a safe state.
• Step 3: Disconnect field wiring from the terminal block. Label each wire before removal — the Harmony HB terminal blocks are not color-coded by channel.
• Step 4: Extract the failed module. Inspect the backplane connector for damage before inserting the replacement.
• Step 5: Insert the replacement P-HB-AOT-15010000. Wait for the controller to recognize and address the module (LED status: flashing green → solid green).
• Step 6: Re-download channel configuration from the DCS engineering station. Verify output values at the field instrument before returning to auto mode.
• Step 7: Perform a loop check on all channels. Document the replacement in your maintenance log with the new module’s serial number.

Reliability in Harsh Conditions

ABB engineered the Harmony HB I/O series for continuous operation in environments that would degrade consumer-grade electronics within weeks. The P-HB-AOT-15010000 is built on a conformal-coated PCB that resists moisture ingress and corrosive atmospheres — a non-negotiable requirement for offshore platforms, coastal chemical plants, and tropical process facilities. The module’s housing is designed to dissipate heat passively through the backplane, eliminating the need for forced-air cooling and removing a common failure point.

Vibration tolerance is validated to IEC 60068-2-6 standards, meaning the module maintains signal integrity on platforms subject to mechanical vibration from compressors, pumps, and rotating machinery. The analog output circuitry uses shielded internal traces and differential signal conditioning to reject common-mode noise from adjacent high-voltage cabling — a critical feature in environments where VFD interference routinely corrupts unshielded analog loops.

Units sourced through our Xiamen warehouse are stored in climate-controlled conditions with desiccant packaging. Long-term storage in humid environments is a known cause of connector oxidation and EEPROM data corruption in DCS modules. Every unit we ship has been inspected for storage-related degradation before dispatch.

Global Express Logistics

Our Xiamen warehouse is located 12 km from Xiamen Gaoqi International Airport, one of China’s primary cargo hubs with direct freight connections to Frankfurt, Dubai, Los Angeles, Singapore, and Sydney. This geography is not accidental — it means your replacement module moves from our shelf to an international flight within hours of order confirmation, not days.

Standard Express (DHL Express / FedEx International Priority): Most destinations in Europe, North America, and Southeast Asia receive shipments within 3–5 business days from order confirmation. Middle East and Australia typically 4–6 business days.

Same-Day Dispatch: Orders confirmed before 14:00 CST are dispatched the same business day. You receive a tracking number within 2 hours of dispatch.

Documentation Package: Every shipment includes a commercial invoice, detailed packing list, and a photo record of the module’s label and serial number taken before sealing. Certificate of Origin is available on request for customs clearance in regulated markets (EU, US, AU).

Customs Clearance: We declare all shipments accurately under HS Code 8537.10 (Boards, panels, consoles for electric control). We do not under-declare values. If your procurement team requires specific customs documentation formats, contact us before shipment.

Emergency Freight: For critical shutdowns where standard express is not fast enough, we can arrange charter freight or hand-carry courier service to your site. Contact us directly on WhatsApp for emergency logistics coordination.
